US$2,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Application
Liquid with Suspended Solids, Powder, Viscous Fluid, Liquid, Granules
Heating Method
Steam Heating
Mixing Drum Shape
Circular Groove
Name
Steam Heating Jackete Kettle with Mixer and Paddle
electric Heating Cooking Kettle
for Meat/ Sugar, Soup
Double Jacketed Kettle
Heating and Mixing
Jacket Kettle Capacity
300L, 500L, 600L, 1000L
Mixer
Scrapper Mixer, Normal Mixer
Kettle Material
Ss 304/316
Temperature
Above 90degree
Kettle Type
Vertical /Tilting
Jacket Kettle
Heating by Electricity, Steam
1000ljacket Kettle
Double Wall Kettle
Indurstry Kettle
Rice, Soup, Meat, Pharmacy, Jam Cooking
Working Life
More Than 10 Years
Motor Brand
Siemens /ABB/China Brand
Operating type
Continuous Operating
Transport Package
Standard Export Wooden Box
Production Capacity
2000set /Year
Product Description

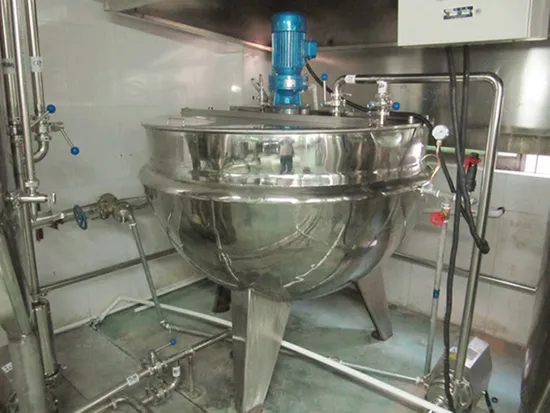

Steam Heating Jackete Kettle with Mixer and Paddle
Steam Heating Jacket Kettle with mixer and paddle
Sanitary stainless steel jacketed kettle(steam/electrical heating)
Material: SS304/316
600 L Electric Heating Jacketed kettles
Stainless steel double-layered boiler/kettle ,used for heating, pasteurizing, cooking, mixing juice, sauce, fruit jam and processing meat, food, Candy, pharmacy, dairy , liquor, cake, drink, candied fruit, etc
Material: SS304
Heating by Electricity
* Type: with Jacketed wall
* Internal shell thickness: 3 or 4 mm, SS304
* Jacket thickness: 3 or 4mm, SS304
Capacity: 300L~1000L
Application
Vertical steam jacketed kettle also named Steam boiler, it's widely used for Candy, pharmacy, dairy, liquor, cake, drink, candied fruit, can etc. Food processing, may be used for large-scale dining hall for cooking a soup, cooking the dish, the fricassee, cooking gruel and so on, it's good equipment for food processing which can improve quality, shortens the time, improves work conditions.
TankCapacity(L) | 200 | 300 | 400 | 500 |
REV | 36r/min, 0.55KW, 380V, 50HZ, 3PHAZE | 36r/min, 0.55KW, 380V, 50HZ, 3PHAZE | 36r/min, 0.75KW, 380V, 50HZ, 3PHAZE | 36r/min, 0.75KW, 380V, 50HZ, 3PHAZE |
Heating Area(M2) | 1.0 | 1.4 | 2.0 | 2.0 |
Vertical Product Dimension(CM) | 100*90*155 | 110*100*160 | 120*130*165 | 120*130*165 |
Material | SS304 | SS304 | SS304 | SS304 |
WEIGHT GW/NW(KGS) | 100 | 120 | 180 | 180 |
Package | Wooden box | Wooden box | Wooden box | Wooden box |
Steam Heating Jackete Kettle with Mixer and Paddle .
