Thermal Welding Machine Plastic PE PP PVDF PVC Sheet Board Plate Welding Machine Bending Welding Machine

Thermal Welding Machine Plastic PE PP PVDF PVC Sheet Board Plate Welding Machine Bending Welding Machine

US$4,000.00-7,000.00 1 Set (MOQ)

Basic Info.

Model NO.
SN2000, SN3000, SN4000, SN5000, SN6000
Board Layers
Single-Layer or Multi-Layers
Screw No.
Single-screw
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008, TUV
Customized
Customized
Condition
New, Under The Order
Sheet Thickness
3.0-30.0mm
Bending Length
3000mm
Processing Period
20 Working Days
External Dimensions
4200*1800*1600mm
Air Pressure(Kg.F /Cm2)
6.0-8.0
Rated Voltage
380V50/60Hz
Heating Power
9kw
Rated Current
36A
N.W
1400kg
G.W
1600kg
Transport Package
Stretch Film and Wooden Pallet, Wooden Packing
Specification
sheet width 600, 900, 1200, 1500, 1800, 2000mm
Trademark
Sincere Machinery
Origin
Qingdao, China
HS Code
8477209000
Production Capacity
50 Sets\Year

Product Description

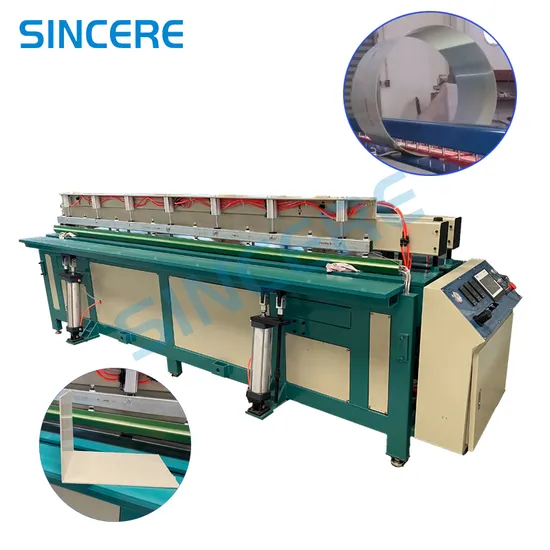

HDPE/PP/PVC Plate/Board Butt Fusion welding bending machine:
Plastic bending welding machine is for plastic board length:3000mm, 4000mm, 5000mm, 6000mm.For board thickness: 3-30mm.
Welding Function:Horizontal weld & round (rolling) weld. Rolling the circular minimum size is 500mm, the bigger circular unlimited.
Bender plastic plate from 2-100 degree.
Model of plastic sheet butt fusion bending welding machine: SN2000, SN3000, SN4000, SN5000, SN6000.
1.Range of Application:
Manufacture of reservoirs, tanks and containers, manufacture of plastic apparatus, pipeline construction, ventilation systems, serial welding,water treatment systems, scrubbers, environmental technology, swimming pools, transport and logistics.
2.Functions:
Bending welding from 75-185 degree.
3.Wide Applicability:
Our model is suitable for all types of thermo plastic sheet (PP, PE, HDPE, PVDF, PVC, PPN),with material thickness ranges from 3 mm to 30 mm.Welding thickness can up to 50 or 60mm according to customers' request customers.
4.Stable Performance:
With most-to-up technology and top designers we successfully design and manufacture for The plates processed by our model have good-looking appearance and the angle is very strong.
5.Easy-to-Maintain:
It's easy to replace all consumable parts, most of them can be replaced within 2 minutes.
6.Warranty:
Machine Quality Guarantee : 24 months.
If any parts broken or does not work under normal operating, we are free to provide.
Product Form
Model SIN-3000 SIN-4000
Processing thickness (mm) 3-30mm 3-30mm
Processing length (mm) 3000 4000
Bending angle 0-135 0-135
Air pressure (kg.f/cm2) 4--10 4--10
Energy source (m3/min) 0.0032 0.0052
The rated voltage (V) 380 380
Length*Width*Height (mm) 4200*1900*1600 5200*2900*1600
