75-100kg/H Pellet Making Machine for Sale

Product Description

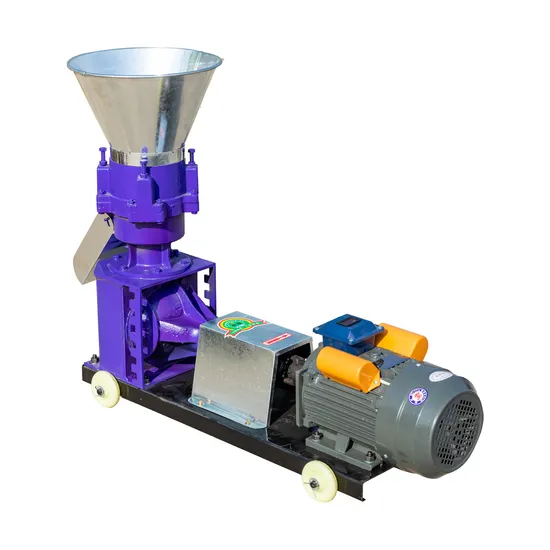

Flat die pellet machine, also known as small pellet mill, is a kind of machine used to produce biomass fuel pellets, animal feed pellets and fish feed pellets. It is widely used in breeding farms, small-scale biomass fuel production plants, household pellet making and commercial uses.
Advantages of Feed Pellet Machine
1. High Efficiency: Feed pellet machines have a high output rate of up to 2-3 tons per hour. They also save time and labor resources, as only one person is required to operate the machine.
2. Cost-effective: Pelletizing is a cost-effective way of producing animal feed. It helps to reduce feed wastage and ensures that animals receive a nutritionally balanced diet.
3. Easy to operate: Feed pellet machines are easy to operate and do not require specialized knowledge. The machines come with a user manual and can be operated by anyone.
4. Versatility: Feed pellet machines can produce feed pellets for many animals such as chicken, cattle, pigs, sheep, and fish, making them useful in both small and large-scale animal farming.
Working Principle of Pellet Making Machine
Pellet making machines work by compressing the raw materials into pellets using a die and rollers. The raw materials are poured into the hopper and fed into the pellet mill through a feed mechanism. The rollers compress the raw materials to the desired size, pushing them through the die. The pellets are then collected and cooled.
Technical information of Pellet Machine

Model	Power puissance	Capacity(feed)(kg/h)	Capacity(fuel)(kg/h)	Weight(kg)	Size(mm)
WSKL-125	2.2kw-3kw	75-100	40-60	75kg	650*300*600mm
WSKL-150	3kw	90-120	70-80	95kg	750*400*820mm
WSKL-200	7.5kw	200-300	100-150	110kg	900*400*750mm
WSKL-230	11kw	300-400	200-300	150kg	1180*580*880mm
WSKL-260	15kw	400-600	300-400	135kg	1200*500*1070mm
WSKL-300	22kw	600-800	500-600	220kg	1250*520*1070mm
WSKL-360	22kw	800-900	700-800	350kg	1270*520*1070mm
WSKL-400	30kw	1000-1200	800-1000	600kg	1470*500*1150mm

Structural Features of Animal Feed Pellet Machine
1. The Pelletizing Chamber: This is where the raw materials are compressed into pellets.
2. The Roller and Die: These parts are responsible for the compression of the raw materials. The rollers rotate to push the raw materials through the die.
3. The Feeder: This is where the raw materials are fed into the pellet mill.
4. The Cutter: This part is used to cut the pellets to the desired length.
Common Problems and Solutions in the Use of Pellet Mill Machine
1. Poor pellet quality: This can be caused by using poor quality raw materials or not properly adjusting the machine. The solution is to use high-quality raw materials and adjust the machine properly.
2. Blockage: Blockage can be caused by material build-up in the die or rollers. The solution is to clean the machine regularly.
3. Overheating: This can be caused by inadequate lubrication or excessive use of the machine. The solution is to ensure the machine is adequately lubricated and reduce the frequency of use.
After-sales Service
Our factory provides after-sales service to ensure that our customers are satisfied with our products. We provide technical support, spare parts replacement, and repair services to our customers.
Shipping Process
Our factory uses a reliable shipping process to ensure that our products reach our customers on time and in good condition. We work with reputable shipping companies to transport our products safely and efficiently.
Advantages of Our Factory
1. Experienced: Our factory has years of experience in the production of pellet making machines. We have a team of experienced engineers who design and produce high-quality machines.
2. Quality Control: We have a strict quality control process to ensure that our products meet the highest standards. We use high-quality materials and advanced technology to produce our machines.
3. Customization: We can customize our machines to meet the specific needs of our customers. We work closely with our customers to understand their requirements and tailor our machines to suit their needs.
4. Competitive Prices: We offer competitive prices without compromising on the quality of our machines. Our prices are designed to meet the budgetary requirements of our customers.
In conclusion, flat die pellet machines are essential in the production of animal feed and biomass fuel pellets. They are efficient, cost-effective and versatile machines that can be used in both small and large-scale farming. Our factory is committed to providing high-quality machines and excellent after-sales service to our customers.
