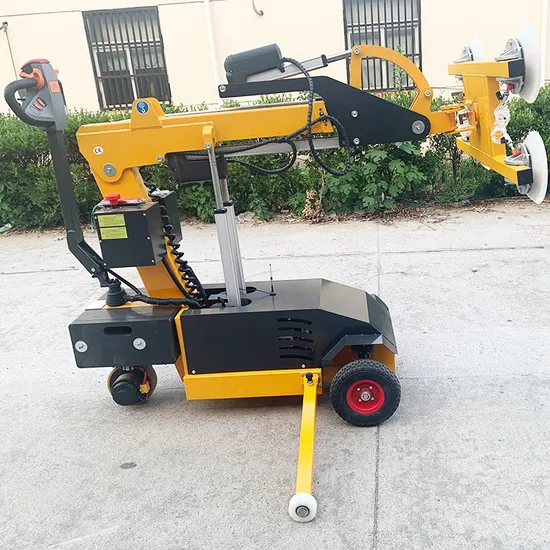

Glass Glazing Vacuum Trolley Manipulator for Outdoor Curtain Installation Glass Robot Glass Installation Machine

Glass Glazing Vacuum Trolley Manipulator for Outdoor Curtain Installation Glass Robot Glass Installation Machine

US$5,300.00
1-9 Pieces
US$4,800.00
10-19 Pieces
US$3,000.00
20+ Pieces

Basic Info.

Model NO.
ZM MINI 200 Glass Manipulator
Cup Quantity
8
Model
Mini 200
Max.Load
200
Manual Rotation Angle
360
Max. Lifting Height
2750
Operating Method
Walking Type
Battery
2*12/35
Charger
24/8
Driving Motor
24/750
Lifting Motor
24/1500
Body Width
620
Body Length
2350
Front Wheel Size/Qty
300*80
Rear Wheel Size/Qty
210*70
Pads Size/Qty
250 / 4
Transport Package
Wooden
Specification
Glass Manipulator
Trademark
zhongmei
Origin
China
Production Capacity
100 Sets Per Month

Packaging & Delivery

Package Size
60.00cm * 60.00cm * 60.00cm
Package Gross Weight
50.000kg

Product Description


Product Description
Compared with RYG model types, This series is a senior machine with Front Axle driven, which have better road holding and friction force while driving with loads. Moreover, this model improved the controller from manual valves to remote controller, intuitive interface helped operation easier to find required function, and much helpful to the speed control as well.Various options customized for special request as well.zmwm22
Product Parameters
Features & Advantages:
1. Front driving,rough terrain wheels,can walk on bad situation road.Strong power, steady lifting and lowering.
2. Intelgent control system ,DC24V reliable actuators for lifting, extension and tilting.
3. Japan Panasonic sensor and Taiwan Airtac pneumatic controller system, no external air source is required.
4. Dual Vacuum System. One for normal operation and the other as spare system.
5. High quality vacuum pump,hydraulic pump,as well as maintenance-free battery.
6. Equipped with pressure auto maintaining system, even if power fails, pressure remains,safer to use.
7. Independent Air Inlets. Each suction cup can be disabled individually if not all are needed.
8. With side shift function for easier installing,without driving the machine.(50+50mm)
9. Integrated control system secures quick and automatic operating.
10. Competitive price, staff saving and strong improvement of working environment.
Standard Movements:
1.Moving control: powered moving, speed control by manual roller sensibly
2.Lifting control: with a hydraulic ram, use the push rod to control the hand-operated valve.
3.Extension control: with a hydraulic ram, use the push rod to control the hand-operated valve. maximum extension distance 750mm, maximum extension distance from the front wheel to the suction pads was 915mm( the ram in the horizontal position)
4.Tilting control: with a hydraulic ram, use the push rod to control the hand-operated valve, the maximum tilting degree near to 180 degree, which can tilt the frame down and up to horizontal position
5.Side-shift: with a hydraulic ram, use the push rod to control the hand-operated valve, 50mm for both sides, totally 100mm
6.Side turning control: By manual, with a spring lock for positioning, the maximum rotation was 180 degree, 90 degrees for both sides.(Automatic Side Turning for optional)
7.Rotation control: By manual, with a spring lock for positioning, the maximum rotation was 360 degree. Electrical rotation for optional.(Automatic Rotating for optional)
8. Suction and Releasing by wired remote control (Wireless Remote Control for optional)
Glass installation robot / MINI RYG
Max.Load Kg 200 300 400 500 600 800
Manual rotation angle ° 360 360 360 360 360 360
Max. lifting height mm 2750 3500 3500 3500 3500 5000
Operating method / Walking type Walking type
Battery V/A 2*12/35 2x12/100 2x12/100 2x12/100 2x12/100 2*12/120
Charger V/A 24/8 24/12 24/15 24/15 24/15 24/18
Driving Motor V/W 24/750 24/1200 24/1200 24/1500 24/1500 24/1500
Lifting Motor V/W 24/1500 24/2000 24/2000 24/2200 24/2200 24/2200
Body width mm 620 840 840 840 840 840
Body length mm 2350 2560 2560 2660 2660 2800
Front Wheel Size/Qty mm 300*80 400*80/1 400*80/1 400*90 /1 400*90 / 1 400*90 / 2
Rear Wheel Size/Qty mm 210*70 250*80 250*80 300*100 300*100 300*100
Pads Size/Qty mm 250 / 4 300 / 4 300 / 4 300 / 6 300 / 6 300 / 8
