Water Heat Pump Free Service Water Heat Pump on Grid Solar AC/DC Air Source Hot Water Heat Pump

Product Description

Product Description

SOLAR AC/DC AIR SOURCE HOT WATER HEAT PUMP
Model Name	DRSA1-ACDC-41/200N1	DRSA1-ACDC-41/300	DRSA1-ACDC-55/500
Water Tank Model	DSX-200G	DSX-300G	DSX-500G
Water Tank Volume	200L	300L	500L
Heating Capacity	4100W	4100W	5500W
Rated AC Grid Power	208-240V/50-60Hz	208-240V/50-60Hz	208-240V/50-60Hz
Solar Panel Power(DC)	80V-380V	80V-380V	80V-380V
Electric Shock Prevention	Class I	Class I	Class I
Water Heating 15ºC to 55ºC	88.1L/H	88.1L/H	115L/H
Rated Power Consumption	972W	972W	1310W
Rated Current	4.5A	4.5A	6.0A
COP	4.22	4.22	4.2
Max Current(AC)	7.4A	7.4A	8.8A
Max Current(DC)	12.0A	12.0A	12.0A
Max Power consumption	1600W	1600W	1900W
Noise Level	52dB(A)	52dB(A)	54dB(A)
Refrigerant	R410A	R410A	R410A
Water Proof Level	IPX4	IPX4	IPX4
Outdoor Net/Gross Weight	33.5/37.5kg	33.5/37.5kg	37/42kg
Outdoor Net Dimention	802*323*564mm	802*323*564mm	802*323*564mm
Outdoor Package Dimention	910*405*622mm	910*405*622mm	910*405*622mm
Water Tank Net/Gross Weight	60/68kg	80/92kg	138/152kg
Water Tank Dimention	Φ520×1600mm	Φ580×1810mm	Φ710×1865mm
Water Tank Package Dimention	550*550*1665mm	605*605*1915mm	740*740*1940
Water Inlet/Outlet Connector Size	DN20	DN20	DN20
Heat Exchanger Max. Pressure	4.4MPa	4.4MPa	4.4MPa
Max Discharge/Suction Pressure	4.4/1.8MPa	4.4/1.8MPa	4.4/1.8MPa
Test Condition: Ambient Temp.(DB/WB): 20ºC/15ºC, Water Temp.(In/Out): 15ºC/55ºC

Certifications

ABOUT GAMKO

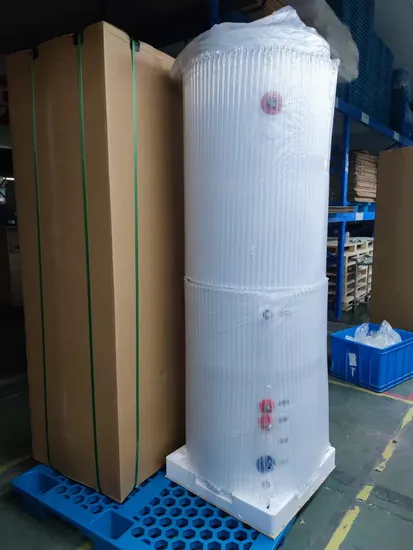

Packing&Shipping To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services
will be provided.Seaworthy package or as each customer required. Neutral Packing, export standard carton package,wood pallet etc.
Production Process Our Services: OEM Welcomed Warranty: 30 Years Certifications can be supported Sample for testing is supported After-Sale Service: 24 Hour-Hot Line for Consultancy and Technical Support Delivery time: 15 working days after receiving payment for one container
CERTIFICATIONS
