High Precision CNC Surface Grinder, Surface Grinding Machine M3060 Table (600*300)

High Precision CNC Surface Grinder, Surface Grinding Machine M3060 Table (600*300)

US$10,000.00-200,000.00 1 Set (MOQ)

Basic Info.

Model NO.
M3060
Movement Method
Point to Point Control
Control Method
Open-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
X×y Travel
800×500
Table Size
1000×500
Spindle Rpm
10000/12000
Capacity of Atc
24
Transport Package
Seaworthy
Specification
15CBM
Trademark
Zhongnan
Origin
China
HS Code
8457101000
Production Capacity
3000sets/Year

Packaging & Delivery

Package Size
2200.00cm * 2100.00cm * 2000.00cm
Package Gross Weight
1000.000kg

Product Description

BRIEF INTRODUCTION
Zhongnan produces and supply CNC surface grinding machine from small size up to big size.

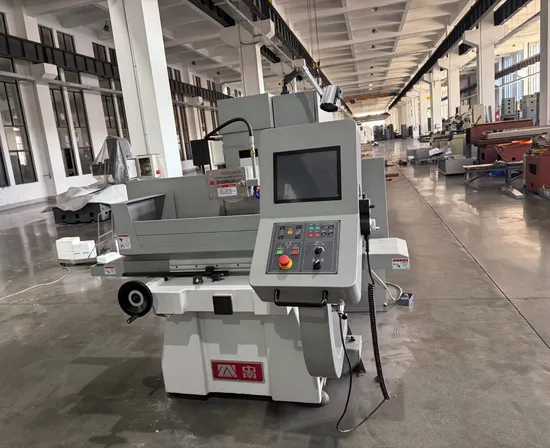

Overall layout of the machine
The front, rear, left and right, and up and down axes are all operated automatically. The feed value and feed times can be preset and the machine will stop automatically after the work is completed.
High rigidity casting body
The casting body has been analyzed and calculated by finite element method, and the column is designed with honeycomb reinforcement, which has excellent rigidity.
Fully supported working table structure
The working table adopts fully supported box guideway structure, combined with hand scraping, to ensure stable motion and grinding precision.
Independent hydraulic system
Single-cylinder drive, combined with design of an independent hydraulic system, the working table has multiple adjustable speed of 5-25m/min and low vibration characteristics, suitable for various purposes of machining.
High-precision flanged spindle
Each spindle of our company is completely assembled in a temperature-controlled and dust-free workshop. Under such strict production conditions, the spindle is less affected by temperature changes, has low noise and no vibration, and can provide years of service without any problems. This machine uses flange type spindle, with P4 grade precision bevel ball bearing, V3 grade low vibration motor and dynamic balance, it is installed on the machine head base to ensure that the deflection of the spindle is far less than 0.002mm.
Graphical operation panel
The operation panel adopts a fixed design, and the control is completely concentrated on the operation panel, which conforms to ergonomics: the operation panel adopts a graphical design, the functions are clear at a glance, and the operation is easy to learn.
Parameters of M2550
Type Name Unit M3060
Working capacity Working table dimension(L×W) mm 600×300
Left-right travel mm 720
Front-back travel mm 360
Max load capacity kg 400
Max. distance from grinding wheel center to table mm 650
Working table and front and back feed T slot of working table mm 1×14
Feed speed of working table mm/min 5-25
Front-back automatic feed rate mm 0.1-8
Ront-back rapid feed speed mm/min 900
Up-down feed Min up-down feed of handwheel mm 0.001
Up-down automatic feed rate mm 0.001-0.02
Up-down rapid feed speed mm/min 300
Grinding wheel spindle Power HP 5
Grinding wheel: outer diameter × inner diameter × thickness mm Φ350×20~40×127
Rotation speed rpm 50hz:1450
60hz:1740
Motors Front-back motor w 400
Up-down motor w 750
Hydraulic motor hp 3
Flushing motor hp 1/4
Dimension Length mm 2050
Width mm 1800
Height mm 1950
Total weight kg 2800
Rated power kw 7

Company Profile
Nantong Zhongnan Intelligent Technology owns Zhongnan CNC technology, Zhongnan Intelligent, Xinsheng CNC technology and other subsidiaries such as foundry factory. Since its establishment in 2000, Zhongnan started with producing surface grinding machines, and gradually developed into high-end CNC machining center and manufacturing with production lines of CNC vertical machining center, high-precision gantry machining center, horizontal machining center, CNC vertical and horizontal milling machines, Zhongnan is one of the reputed manufacturers covers full production lines in the metal cutting machines industry in China. The products of the group company are widely used in defence industry, aerospace, automobile, green energy, mold and other fields of manufacturing.
Zhongnan Intelligent Technology has a production park covers 100,000 square meters. There are more than 380 employees, 30 senior engineers, and 20 R&D engineers. Production capacity covers the entire production chain of casting manufacturing, machining, painting, assembly, commissioning, inspection, etc.
100,000 square meters factory.
Factory Workshop Show
Metal workshop 1 Metal workshop 1 Painting workshop
Assembly workshop 1 Assembly workshop 2 Machines ready in stock
