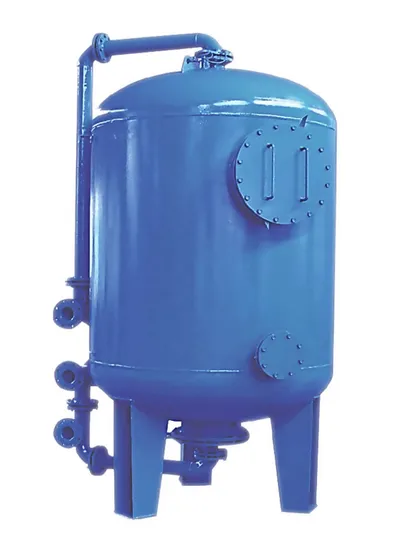

Automatic Multi-Media Walnut Shell Filter for Oily Wastewater Treatment

Automatic Multi-Media Walnut Shell Filter for Oily Wastewater Treatment

US$1,200.00-10,000.00 1 Piece (MOQ)

Basic Info.

Motive Force
Pressure
Style
Vertical
Performance
Efficient Filtration
Certification
GS
Weight
Depends on Capacity
Size
Depends on Capacity
Life Time
30 Years
Single Processing Capacity
5-70m3/H
Iltration Period
12-24h
Design Pressure
0.6MPa
Influent Turbidity
Below 20ntu
Effluent Turbidity
Below 3ntu
Transport Package
Standard Export Airworthy Packaging
Specification
Customizable
Trademark
DeYuan
Origin
Jiangsu, China
Production Capacity
5000 Sets/Year

Product Description

Product DescriptionProduct Introduction
The HLJ walnut shell filter is a new type of oily wastewater treatment equipment developed by our company by absorbing advanced foreign technology. It uses walnut shells as the filtering medium and is currently an ideal equipment for the treatment of oil production wastewater, petroleum refining, petrochemical industry, and deep treatment of oily wastewater in major oil fields. In addition, according to the special requirements of users for overall height and maintenance, the diameter and height of the equipment can be specially designed to meet the working conditions that have special requirements for the use of filters.
Applicable scene
The quartz sand filter multi-media filter is used to remove impurities such as mud, sand, suspended solids, colloids, and algae from water, reducing mechanical damage and pollution to reverse osmosis membrane components.Detailed Photos
Quartz sand class
The quartz sand filter is a type of filter that uses quartz sand as the filter material. It can effectively remove suspended solids in water and has a significant removal effect on pollutants such as colloids, iron, organic matter, pesticides, manganese, bacteria, viruses, etc. It has advantages such as low filtration resistance, large specific surface area, strong acid and alkali resistance, oxidation resistance, pH range of 2-13, and good pollution resistance. The unique advantage of quartz sand filters is that by optimizing the design of filter media and filters, the adaptive operation of the filter is achieved. The filter media has strong adaptability to the concentration of raw water, operating conditions, pre-treatment process, etc., that is, the filter bed automatically forms an upper sparse and lower dense state during filtration, which is conducive to ensuring the water quality of the effluent under various operating conditions. During backwashing, the filter media is fully dispersed, and the cleaning effect is good. Sand filters have advantages such as fast filtration speed, high filtration accuracy, and large interception capacity. Widely used in various fields such as power, electronics, beverages, tap water, petroleum, chemicals, metallurgy, textiles, papermaking, food, swimming pools, municipal engineering, etc., for pre-treatment of process water, domestic water, recycled water, and wastewater.
Activated carbon class
The filter material is activated carbon, which is used to remove color, taste, residual chlorine, and organic matter. Its main function is adsorption, and activated carbon is an artificially made adsorbent. Activated carbon filters are widely used for pre-treatment of water in domestic water, food industry, chemical industry, power and other industries. Due to its well-developed pore structure and huge specific surface area, activated carbon has strong adsorption capacity for soluble organic compounds in water, such as benzene and phenolic compounds. Moreover, it has good removal effects on organic pollutants that are difficult to remove by biological and chemical methods, such as chromaticity, odor, surfactants, synthetic detergents, and dyes.
Multi-media class
The multi-media filters used in water treatment include: anthracite quartz sand magnetite filters, activated carbon quartz sand magnetite filters, activated carbon quartz sand filters, quartz sand ceramic filters, etc.
The filter layer design of a multimedia filter mainly considers the following factors:
1. Different filter media have significant density differences, ensuring that no mixing occurs after backwashing disturbance.
2. Select filter media based on the purpose of water production.
3. The particle size requirement is that the particle size of the lower layer filter material is smaller than that of the upper layer filter material to ensure the effectiveness and full utilization of the lower layer filter material.
In fact, taking a three-layer filter bed as an example, the upper layer filter material has the largest particle size and is composed of lightweight filter materials with low density, such as anthracite and activated carbon; The middle layer filter material has a medium particle size and density, and is generally composed of quartz sand; The lower layer filter material is composed of heavy filter materials with the smallest particle size and the highest density, such as magnetite. Due to the limitation of density difference, the selection of filter media for three-layer media filters is basically fixed. The upper layer filter material plays a coarse filtering role, while the lower layer filter material plays a fine filtering role, fully exerting the function of a multimedia filter bed. The effluent quality is significantly better than that of a single-layer filter bed.
Product Parameters
ModelFilter diameterStraight heightTotal heightWater inlet-outletCapacityQuartz sand materialActive carbon material
MmMmMmMmM³/hourTonTon
TWL-50050015002350DN3220.390.11
TWL-60060015002380DN3230.560.16
TWL-70070015002400DN4040.760.22
TWL-80080015002400DN40510.3
TWL-90090015002500DN5061.30.36
TWL-1000100015002600DN5081.60.45
TWL-1200120015002700DN65112.30.65
TWL-1400140015002800DN651530.86
TWL-1500150015002850DN65183.51
TWL-1600160015002900DN802041.2
TWL-1800180015003000DN802551.5
TWL-2000200015003100DN1003061.8
TWL-2200220015003180DN100387.52.2
TWL-2400240015003330DN1004592.5
TWL-2500250015003380DN100509.72.8
TWL-2600260015003430DN12555103
TWL-2800280015003530DN1256012.53.5
TWL-3000300015003630DN12570-80144
TWL-3200320015003730DN15080-100164.5
Company Profile
Yangzhou Deyuan Environmental Engineering Co., Ltd. is located in the beautiful suburbs of Yangzhou,Jiangsu Province, China. It is a a comprehensive enterprise specializing in the manufacturing, construction, and installation services of environmental protection equipment. The company is located in Yangzhou City, Jiangsu Province, China. It covers an area of 15000 square meters, with various factory buildings covering 12000 square meters. It's main products include waste gas treatment equipment, sewage treatment equipment, sludge treatment equipment, water supply equipment, pure and ultra pure water manufacturing equipment, heat exchange equipment.
The company has a production qualification certificate for environmental protection products and has passed ISO 9001, ISO 14001, and ISO 45001 system certifications. The company independently develops multiple environmental protection equipment and has obtained multiple invention patents from the People's Republic of China. The company operates with integrity and has been rated as a credit AAA enterprise for many years.
