High-Precision Heavy Aluminium CNC Router for Metal Cutting

High-Precision Heavy Aluminium CNC Router for Metal Cutting

US$10,000.00-12,000.00 1 set (MOQ)

Basic Info.

Model NO.
K6-2500 ATC (Handle control Gen 2)
Type
Wood Working
Object
Sheet
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Machine Type
CNC Router
Machine Structure
Heavy Duty Steel Structur(Stress Relief Treatment)
Working Size
2500*1300 mm (Customized)
Spindle Type
Water-Cooling, Single Spindle
Spindle Power
7.5 Kw Atc (Upgraded)
Drive Mode
AC Servo Drive
Transmission Mode
Rack + Guide Rail
Working Table
Resin Mesh Adsorption Workbench
Feed Mode
Manual
Usage
Woodworking, Plastic, Stone, PVC
Power Supply
220V or 380V
Tools Magazine
4-8
Transport Package
PE Film or Wooden Cases
Trademark
SDKCNC
Origin
China
HS Code
8465209000
Production Capacity
1200/Year

Product Description


Heavy Aluminium Cutting CNC Router Metal Cutting Machine 03
Product Description

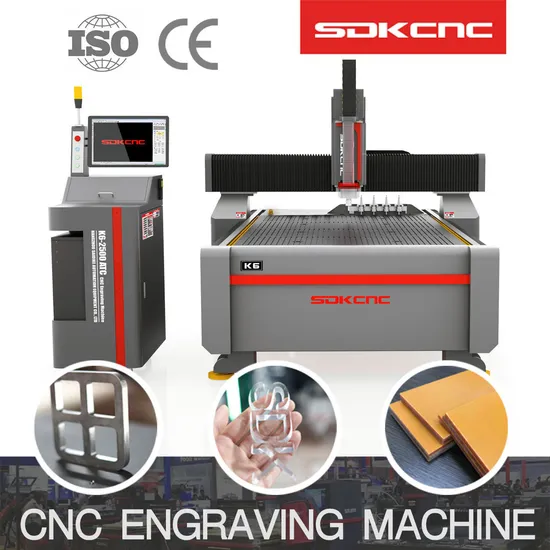

Δ K6-2500 ATC is a Heavy-duty engraving & carving Machine (mini-character engraving machine ) independently developed and produced by SDKCNC. It can be used for hi-speed engraving and milling of soft metals and plates processing.
Δ Its robust architecture,forged from Heavy duty steel structure (Stress Relief Treatment),undergoes a thorough time stress relief process. The whole machine adopts AC servo drive,Y-axis dual motor drive,so it's running stably and reliably.Adopts precision milling helical gear rack, straight guide rail,silent screw rod.Standard ATC system with handle control, with a capacity of 4 inline tool magazines (upgradable)
Δ It widely applicable to the engraving and milling of copper,aluminum,stone,acrylic,wood,aluminum-plastic ,insulating boards,epoxy resin plate,carbon fiber composited materials and the processing of various plates and soft metals.
01 BED STRUCTURE
Heavy duty welded bed with Thick-walled square tube in stress aging relief
All planes and installation holes are precision machined by gantry milling
02 TRANSMISSION
Transmission:X/Y-axis with helical rack & linear guide rail,Z-axis with mute screw
03 DRIVE MODE
The whole machine adopts AC servo drive,Y-axis dual motor drive,
04 SPINDLE
This facility adopts high pulling torque spindle ,Standard water cooling
spindle power 7.5 kw,speed from 1-24000RPM
Interchangeable air-cooled spindle
05 DUST COLLECTION SYSTEM(OPTIONAL)
The optional accessories has the water tank,water spirit system etc .
07 WORKING TABLE
phenolic resin suction clip intergrated table with T slot
standard 5.5kw aluminum alloy vacuum pump
08 TOOLS MAGAZINE
The tools magazine have 4 in-line magazines (can be upgraded to 8)
09 HANDLE CONTROLLER
TThis machine with ATC system by handle
Product Parameters
Technical Parameter
Working Area
1300 x 2500 mm
Repeat position accuracy
±0.01 mm
Spindle Power
7.5Kw (1-24000 RPM)
Spindle Type
water-cooling
Spindle
Single-spindle
Control system
Handle 3-Axis Control System with ATC
Dust Collecter
Optional
Drive motor
AC Servo Motor + Reducer
Type Name
K6-2500 ATC
Working Table
Phenolic resin suction clip intergrated table
Vacuum Pump
5.5KW

Application Industry
Δ It widely used for high speed cutting and engraving of Acrylic,PVC,wood,aluminum plates,insulting boards,ABS board,aluminum-plastic plates,thick foam,PVC,MDF board ,expansion sheet.It can also carve and cut various soft metals, such as copper, aluminum, etc
Δ It widely used for abnormity edges and complex patterns processing ,such as advertisement logo,sliding door packaging,furniture,showcase,architectural models,etc
Packaging & Shipping
Company Profile
Our Advantages
FAQ
Q1: I knew nothing about this machine, what kind of machine i should choose?
Just tell us your materials ,thickness ,size and processing demands ,then we will give you best solutions and suggestions.

Q2: When I got this machine, but I don't know how to use it. What should I do? We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or skype and e-mail.

Q3: If some problems happen to this machine during warranty period, what should I do? We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.

Q4:When will delivery the machine after we got the down payment?
Fastly delivery .Normally we need take 15-20 days for one set .Above 2 sets ,we can negotiate .

Q5:How do you provide after-sales services?
You need confirm with our engineer in the group what the problem is ,and our engineer will confirm with if can solve it by remote guidance ,if cant solve it by remote video talking ,then we will send the acceptable express for replacing parts for you quickly.
