Small Concrete Hollow Cement Brick Making Machinery / Block Making Machine (QTJ4-40)

Small Concrete Hollow Cement Brick Making Machinery / Block Making Machine (QTJ4-40)

US$2,800.00
1-4 Sets
US$2,600.00
5+ Sets

Basic Info.

Model NO.
QTJ4-40
Certification
CE, ISO9001: 2000
Customized
Customized
Automatic Grade
Semiautomatic
Type
Concrete Iron Molding Machinery
Automation
Automatic
Brick Raw Material
Concrete
Processing
Brick Molding Machine
Product
Brick
Tolerance
0.5mm
Condition
New
Method
Vibration
Small and Cheap
Durable
Pallet Size
850*550*25mm
Transport Package
naked or by sheet iron
Specification
ISO9001: 2000/CE
Trademark
Shengya
Origin
China
HS Code
8474802000
Production Capacity
500 sets/year

Packaging & Delivery

Package Size
120.00cm * 60.00cm * 220.00cm
Package Gross Weight
1200.000kg

Product Description

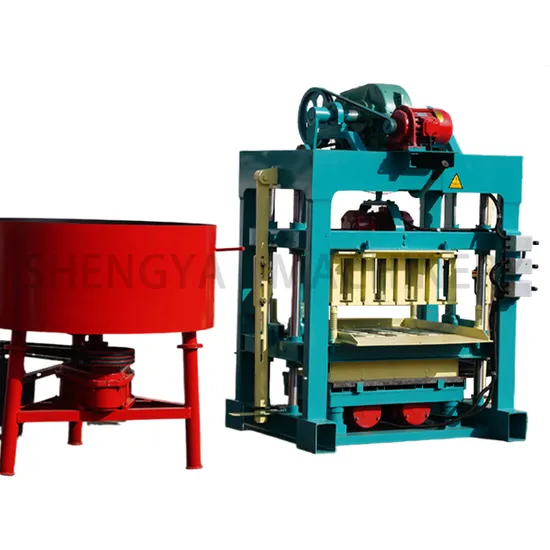

small Concrete hollow cement Brick Making Machinery / Block Making Machine (QTJ4-40)
The serie of Block Shaping Machinery, which meet the state standards of GBT8533-1998, are excellent in performance, high in efficiency, and lower in energy consumption. Since putting into the market, good econnomic profits and social benefits have been achieved. They are ideal equipment for high quality cement blocks. The products made by them can be piled up(3-5layers) immediately after they are shaped.
Characteristics of the Cement Block
Nine characteristics compared with clay brick:
1. Not using the clay as raw material to destroy any field
2. Making use of three industrial wastes to chang wastes into valuables
3. Not using fire to bake blocks and not building kiln to save resoures and fields
4. No chimney to protect the inviroment and avoid polution
5. Production process is simple, they can be made everywhere
6. Low investment and achieving much faster results, customers can profit in half a year after investing.
7. The block can be produced all around the year
8. Good looking, construct convenintly
9. Technical criteria is better than those of red brick and green brick
Overall Size 1580(L)×1100(W)×2100(H)mm
Cycle 40 Seconds
Carriage Size 850(L)×470(W)×35(H)mm
Vibration Frequency max.3000r/m
Electrical source 380V/50Hz
Total Mass 1500kg
