12mm, 14mm, 16mm, 18mm, 20mm Automation Machine Plastic Recycling Line

Product Description

Product Parameters

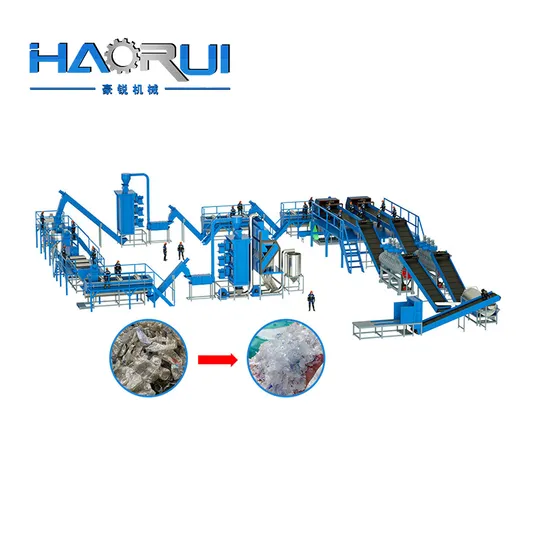

The PET bottles recycling washing line from PET bottles to washed cleaned PET flakes.

Machine name	Model	Function	Capacity
Coneyor Belt	800 Type	Transport the bottles to label remover	1200kg/h
Label Remover	600 Type	Removing the label from bottles	1000kg/h
Sorting Platform	800 Type	Removing the bottle that with label
Coneyor Belt	800 Type	Transport the bottles to crushing machine	1200kg/h
Crushing Machine	1000 Type	Crushing the PET bottles into flakes	1000kg/h
Screw Loader		Transport the PET flakes for floating tank
Floating Tank		Washing PET flakes and separate caps
Screw		Transport PET flakes to hot washing tank
Hot Washing Tank		Hot washing PET flakes	1000kg/h
Screw		Transport PET to floating tank
Floating Tank		Washing PET flakes
Screw		Transport PET falkes to dewatering machine
Dewatering Machine	600 Type	Removing water from PET flakes after washing

Product Description
Company Profile
HAORUl Machinery was established in 1992a professional manufacturer & exporter of PETbottle recycling machine, PP PE plastic bag/film /bottlerecycling machine,pelletizing machine etc.
We already helped over 40 clients solve the plasticrecyclinginvestment solution in Africa, Asia, Middle EastSouth America etc.
We have over 300 employees, an annual salesfigurethat exceeds USDl0million dollars and arecurrentlyexporting 30% of our production.
Always insist on "quality is first" and inspect afterproducing which makes us more popularin Domesticand gained a global sales network all over the world.
There are over 100 technicians in our workshopswhich covers 20000m2.0ver 30 yearsexperience and our 9 persons' R&D team make ourmachine design uniqueOEM &ODM are welcome.

Packaging & Shipping

FAQ

FAQ:
Q: How often are the Crusher blades sharpened?
A: After continuous working at 30-40hours, the blades have to be sharpened
Q: How long does it take for changing blades-Remove and install blades?
A: Depending on the worker skilled or not. Normally 2-3hours
Q: How about the rate for removing the labels by Label remover?
A: Compressed bottle: more than 96%
Un-compressed bottle: more than 98%
Q:What's the temperature of steam washer ?
A: Usually 80-90ºC ( If the temperature is over 100ºC, the Flake will be roll.so the best temperature
is 80-90ºC)
Q: What's the moisture after Horizontal dewatering machine?
A: About 1.8%. Adopt Swedeen bearing, with bearing layer on the surface of screw blades
for longer working life.
Q: How often are the Crusher blades sharpened?
A: After continuous working at 30-40hours, the blades have to be sharpened
Q: How long does it take for changing blades-Remove and install blades?
A: Depending on the worker skilled or not. Normally 2-3hours
