Upright Drilling Machine Z5032/1 Z5040/1 Z5045/1
| US$1,150.00-1,400.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z5032/1 Z5040/1 Z5045/1
Hole Diameter
<50mm
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Max Drilling Capacity
45mm
Spindle Taper
Mt4
Spindle Travel
130mm
Step of Spindle Speed
6
Working Table Size
380*300mm
Motor Power
1.5kw
Speed of Motor
1400rpm
Transport Package
Polywood
Trademark
WHITE EAGLE OR CUSTOMER LOGO
Origin
China
HS Code
845929000
Production Capacity
500/Month
Product Description
1.Drilling Machine (Z5045/1 Z5040/1 Z5032/1)Features:
Drilling, milling and tapping
Head swivels 360 horizontally
Headstock and Worktable up & down perpendicularly
Super high column
Precision micro feed
Positive spindel lock
Distinct auto device for releasing tools, operate easily
Geared drive, lower noise
Our understanding and experience in your market demand, our accurate pricing and excellent service will be your right access Chinese Industrial Supplies. Recommend the most suitable machinery for your market With over 60 years experience in industrial and mechanical industry, we can define the different markets exactly.

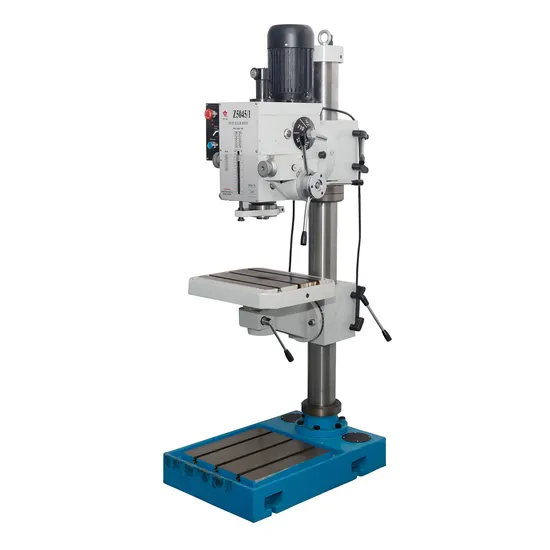

2.Machine photos
3.Specification
| Drilling Machine | Z5032/1 | Z5040/1 | Z5045/1 |
| Max. drilling capacity | 32mm | 40mm | 45mm |
| Spindle taper | M. T. 3 or R8 | M. T. 4 | M. T. 4 |
| Spindle travel | 130mm | 130mm | 130mm |
| Step of speed | 6 | 6 | 6 |
| Range of spindle speed 50Hz | 80-1250 r. p. m | 80-1250 r. p. m | 80-1250 r. p. m |
| 60Hz | 95-1500 r. p. m | 95-1500 r. p. m | 95-1500 r. p. m |
| Step of spindle auto-feeding | 6 | 6 | 6 |
| Range of spindle auto-feeding amount | 0.06-0.30mm/r | 0.06-0.30mm/r | 0.06-0.30mm/r |
| Min. distance from spindle axis to column | 290mm | 290mm | 290mm |
| Max. distance from spindle nose to worktable | 725mm | 725mm | 725mm |
| Max. distance from spindle nose to stand table | 1125mm | 1125mm | 1125mm |
| Max. travel of headstock | 250mm | 250mm | 250mm |
| Swivel angle of headstock(horizontal) | 360° | 360° | 360° |
| Max. travel of worktable bracket | 600mm | 600mm | 600mm |
| Worktable size of avaliablity | 380× 300mm | 380× 300mm | 380× 300mm |
| Swivel angle of table horizontally | 360 degree | 360 degree | 360 degree |
| Table leaned | ± 45° | ± 45° | ± 45° |
| Size of stand worktable of avaliability | 417× 416mm | 417× 416mm | 417× 416mm |
| Motor power | 0.75KW(1HP) | 1.1KW(1.5HP) | 1.5KW(2HP) |
| Voltage/Frequency | As customer' s requirement | As customer' s requirement | As customer' s requirement |
| speed of motor | 1400 r. p. m | 1400 r. p. m | 1400 r. p. m |
| Cooling pump power | 0.04KW | 0.04KW | 0.04KW |
| Net weight/Gross weight | 437kg/487kg | 442kg/492kg | 442kg/492kg |
| Packing size | 1850× 750× 1000mm | 1850× 750× 1000mm | 1850× 750× 1000mm |
| Loading amount | 18pcs/20" container | 18pcs/20" container | 18pcs/20" container |
Standard accessories
drill chuck1-13mm, Removing Block,Drill chuck arbor
Optional accessories:
90mm paraller vise
125mm paraller vise
milling cuttter holder
drill chuck
Mill chuck
Coolant system
Working lamp
Auto-tapping electrical
Boring bar
