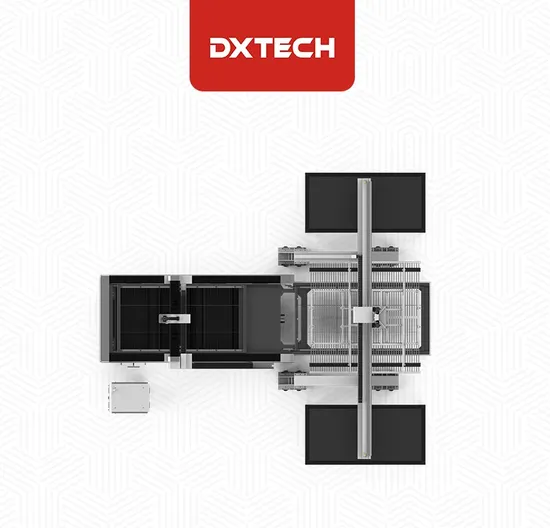

Dxtech Ea-Series Auto Loading &Unloading Sheet Metal Fiber Laser Cutting Machine for Stainless Steel Aluminum

Dxtech Ea-Series Auto Loading &Unloading Sheet Metal Fiber Laser Cutting Machine for Stainless Steel Aluminum

US$32,000.00-45,000.00 1 set (MOQ)

Basic Info.

Model NO.
EA
Application
Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Shoemaking Industry, Woodwork Industry, Advertising Industry
Cooling System
Water Cooling
Technical Class
Continuous Wave Laser
Applicable Material
Metal
Structure Type
Gantry Type
Laser Classification
Customized
Laser Technology
Laser Control Fault Cutting
Model No.
Dxtech-F Series
Model
1530f 2040f 2560f
Laser Power
1000W/2000W/3000W/4000W
Component
Fiber Laser, Stepper Motor, Servo Motor, Bed, etc.
CNC or Not
Yes
Cutting Speed
0-120m/Min
Cutting Thickness
0-30mm
Cutting Area
1500*3000mm (Depend on Machine)
Control System
Cypcut
Driving System
Japan Yaskawa Servo Motor
Graphic Format Supported
Ai, BMP, Dst, Dwg, Dxf, Dxp, Las, Plt, JPG/GIF/PNG
Motor
FUJI (Optional)
Laser Head
Raytools (Optional)
Laser Source
Raycus/Ipg (Optional)
Working Table
Blade Table
Transport Package
3 Layers
Specification
more than 4500kg
Trademark
DXTECH
Origin
Jinan, Shandong Prvovince, China
HS Code
8461500090
Production Capacity
100 Sets/Month

Product Description


Features
1. With a simple operating system, you can quickly cut any shape you want on metal materials, such as Steel, Iron, Aluminum Plate, Carbon steel, Stainless steel, Cooper, and galvanized sheet.
2. Independent control cabinet
1). Dustproof: all electrical components and laser sources are enclosed in a separate control cabinet to prevent dust contamination.
2). Automatic thermostat: equipped with an automatic constant temperature air conditioner, which can protect the components from damage due to high temperature.
3. Aviation aluminum alloy beam to ensure the running speed reaches up to 150m/min.
4. World-class components like guide rails and racks to ensure cutting accuracy.
5. The sturdy iron flatbed keeps the machine undistorted for 20 years.
6. When considering sheet metal laser cutting prices, laser cutting has a superior cutting edge, it saves money and time cost if we count all costs.
Technical Parameters
Model DXTECH-3015 DXTECH-4020 DXTECH-6020
Laser Multiple options Multiple options Multiple options
Min. Thickness of Sheet Loaded 1mm 1mm 1mm
Max. Thickness of Sheet Loaded 8mm 8mm 8mm
Max. Weight of Sheet Loaded 400kg 400kg 400kg
Focusing method Auto/manual Auto/manual Auto/manual
Servo motor and driver YASKAWA/FUJI YASKAWA/FUJI YASKAWA/FUJI
Reducer Shimpo Shimpo Shimpo
Relay Schneide Schneide Schneide
Circuit breaker Schneide Schneide Schneide


Premium Product Components

Aviation aluminum beam
1) It has the characteristics of corrosion resistance, lightweight and high rigidity, which ensure the high-speed movement during laser processing.
2) It has perfect dynamic performance, such as anti-twisting, anti-tilting, and
resistance to deformation, etc., to ensure higher cutting accuracy.
Smart Focus Laser Head
1) Heat dissipation: Both collimating mirror and focusing mirror set are heat dissipation accessories.
2) Cooling airflow nozzles are added to effectively protect the nozzles and ceramics and extend the working time.
3) Tracking aperture: By 35mm aperture, the interference of stray light is effectively reduced.
4) Auto-focusing: free from human interference, focusing speed up to 10m/min and repeat accuracy about 50 microns.
Thick-walled carbon steel pipe welding bed
1) Adopt high-quality carbon steel welding machine, more stable and durable.
2) High strength machine tool adopts 600ÂșC stress relief annealing treatment, with strong structural rigidity, small deformation, and vibration to ensure cutting accuracy.
Samples Display
Application
Why choose DXTECH?
FAQ
1. Do you have the CE document and other documents for customs clearance? A: Yes, we have the Original. At first, we will show you and after shipment, we will give you CE/Packing list/Commercial
Invoice/Sales contract for customs clearance.
2. Payment terms? A: ****** trade assurance/TT/West Union/Paypal/LC/Cash and so on.
3. What's the max. cutting thickness? A: Cutting thickness is related to laser power.Note: only 1KW or above fiber laser could cut Aluminum, Copper, Brass, and other high-reflection sheet metal.
4. Which kind of materials can be processed on this machine?
A: Wood, MDF, stone, acrylic, glass, plastic, foam, aluminum, copper, and almost all kinds of non-steel materials.
5. How long is the delivery time?
A: For standard machines, it will be 7-10 days; For non-standard machines and customized machines according to the client's specific requirements, it will be 15 to 30 days.
