Basic Info.
Usage
Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Certification
CE, ISO9001: 2000
Maximum Digging Height
679mm
Maximum Digging Depth
6150mm
Max Digging Radius
4450mm
Max. Dumping Height
6790mm
Max. Digging Height
9980mm
Max. Vertical Wall Digging Depth
5700mm
Max. Digging Depth
6150mm
Max. Digging Reach
10020mm
Arm Digging Force
14,800 Kgf
Bucket Digging Force
22,100 Kgf
Max. Traction Force
29,500 Kgf
Specification
7770*2762*3300 mm
Packaging & Delivery
Package Size
90.00cm * 90.00cm * 90.00cm
Package Gross Weight
12500.000kg
Product Description
Product Description

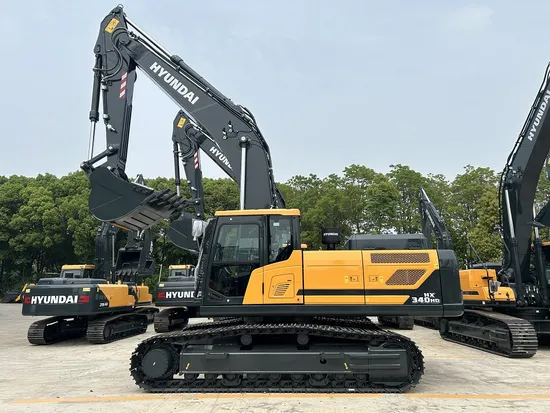

Korean Brand HX340HD Crawler Excavator
Optimal productivity and fuel efficiency-New variable power control-Fuel rate information options-Accessory flow control options-IPC (Intelligent Power Control) upgrade-ECO gauge -New cooling system with increased airflow-Enlarged air intake with grille cover Ultimate Durability-Durable cooling module-Reinforced pins, bushings and polymer gaskets-Reinforced upper and lower durability Structural and accessory durability-Wear-resistant covers-High-grade (high-pressure) hoses Easy control and comfortable operation-Smart and spacious clusters-New front side air conditioning system-Proportional auxiliary hydraulic system option-Quick coupler button option-New audio system Ultimate safety environment-AAVM (Advanced Around View Monitor). Camera system options-Hi MATE (remote management system) option-Cab suspension mounting-Swing lock system-Fine swing control Fuel-efficient system that allows for great performanceThe HX series has an environmentally friendly high performance engine that guarantees both excellent fuel efficiency and highpower. Proven through rigorous testing on a variety of job sites for outstanding operational performance, it will meet anycustomer's needs. IPC (Intelligent Power Control) Upgrade The HX series adopts an upgraded IPC system. It is capable of optimisingthe flow and power of the pumps under different working conditions by means of individual power control. It is able to optimisethe flow and power of the pumps under different operating conditions with individual pump control.
If you need this, Please contact me: +86 19513356942
Detailed Photos
Product Parameters
Operating Weight
| 33TON
|
Bucket Capacity
| 1.44 - 2.30 m³
|
Engine model
| HYUNDAI / HM8.3
|
Rated Power
| 197KW
|
Main pumps rated flow
| 2×306 L/min
|
Implement circuit
| 350 kgf/cm2
|
Fuel tank
| 600L
|
Hydraulic tank
| 210L
|
Swing speed
| 11.2 rpm
|
Travel speed
| 6.4 km/h
|
Max. Traction force
| 29,500 kgf
|
Max. gradeability
| 35°
|
Bucket Digging Force (ISO)
| 22,100 kgf
|
Arm Digging Force (ISO)
| 14,800 kgf
|
Max. Digging reach
| 10020mm
|
Max. digging reach on ground
| 9810mm
|
Max. digging depth
| 6150mm
|
Max. vertical wall digging depth
| 5700mm
|
Max. digging height
| 9980mm
|
Max. dumping height
| 6790mm
|
Min. swing radius
| 4450mm
|
