Animal Feed Pellets Rotary Screener Sifter Machine Manufacture

Product Description

Animal Feed Pellets Rotary Screener Sifter Machine Manufacture
1. Animal Feed Pellets Rotary Screener Sifter Machine Manufacture Main product characteristics
(1) It is combined with circumference, ellipse, straight line mode so that sieving effect is good.
(2) The sieving boat is belt driven , focusing on balance and low noise. The support for tail part is improved elastic support that has small vibration and low noise .
(3) Reinforced base ensures a more balanced operation . we can use hanging structure according to the actual site conditions to meet customer needs.
(4) The rope hanging structure is improved to avoid wire wear .
Integrated or combined screen frame structure can be adopted. Light weight, high rigidity and good sealing .
(5) This is two layers screen frame design. Three layers screen frame is also available.
(6) It has wide application the screening and classification of powdery or pellet feed. The precleaning of unprocessed materials in feed mills. The classification of intermediate products after secondary grinding in large and medium scale feed mills .
2. Animal Feed Pellets Rotary Screener Sifter Machine Manufacture technical parameters :

Model	SFJH80x2C	SFJH100x2C	SFJH125x2C	SFJH150x2C
Screening area(mm2)	800x1600	1000x2140	1250x2500	1500x2800
Number of layers of screen surfaces	Two layers
Dip angle of screen surface	4-5 °
Mating power(kw)	1.5	2.2	3	3
Output(t/h)	3-8	6-12	8-15	10-20

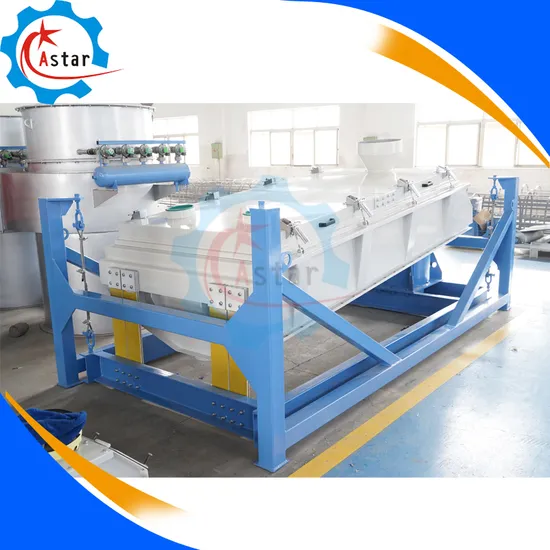

Animal Feed Pellets Rotary Screener Sifter Machine Manufacture Photos:
Any more information you need Animal Feed Pellets Rotary Screener Sifter Machine Manufacture, please feel free to contact with us.
