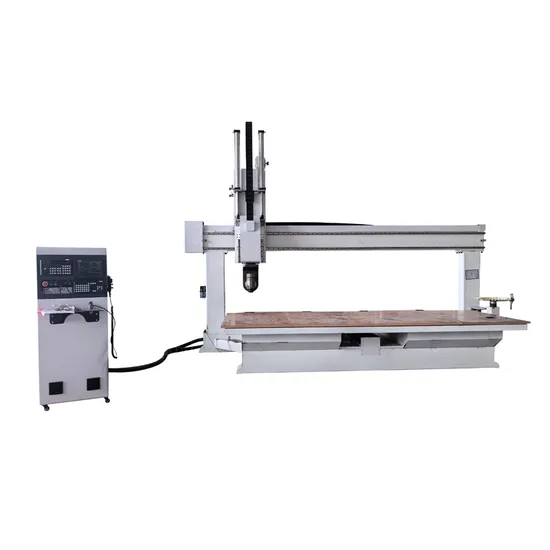

5 Axis CNC Router Machine PVC Foam Board Cutting

Product Description

Product Description
(1).Taiwan LNC control system has powerful functions, convenient operation and high accuracy.(2).Z-axis travel can be increased to 1000mm, large size, suitable for large three-dimensional surface processing.(3).Intelligent cross-border protection.(4).Diversified control can ensure the processing speed, idling speed, cutting speed, greatly improve the quality of processed products and processing efficiency.(5).Adopt 11kw power constant water cooling spindle, easy maintenance, high precision, good cooling performance and long service life.(6).All parts and components adopt international famous brands.
Product Parameters

Machine frame	12mm thick weld steel tube
X,Y working area	2000*3000mm
Z axis working arae	1000mm
Rotary axis	360 degrees rotating ,maximum diameter for working 300mm
Working type	Gantry moving
Spindle	Water cooling low speed 11KW spindle for metal carving and milling with chiller
Inverter	11kw Inverter,1 piece
Drive system	Taiwan LNC Servo motors and drivers , Z axis with brake
Guide rail	X, Y, Z Taiwan HIWIN linear square guide rail
Transmission	X, Y, axis : Helical rack and pinion, Z Taiwan TBI rolling ball screw
Working table	T-slot table with PVC board
Control system	LNC control system
Tool sensor	Yes
Maintenance	Automatic Oil lubricating system
Software compatibility	Artcam / Powermill / Solidworks /Artcut /Ucancam /JDpaint /Type3 etc.
Command language	G-code
Computer interface	USB
Working voltage	220V, 50HZ, 1phase
Environment temperature	0-45ºC
Relative humidity	30%-75%
Max travel speed	45m/min
Max. working speed	15m-20m/min according to the materials
Processing accuracy	0.1-0.2mm

Application
The 5 axis cnc machining center adopts high-strength mechanical structure, which is very suitable for manufacturers who process special-shaped stone in batches. lmported linear guide rails are used to ensure accuracy and provide a set of competitive configurations.
Popular applications include:
>Decoration industry: special-shaped lines and relief carvings of stone background walls;
>Stone countertops with digging basin holes and European borders: suitable for cabinet artificial stone, quartz stone, granite, marble countertops and sinks,kitchen countertops, bathroom countertops, special-shaped bar counters, stone coffee table countertops, basin hole cutting, back-arc water forming and polishing etc. >45-degree side cutting, 90-degree right angle splicing and special-shaped processing; >Drilling, grinding, trimming, carving, cutting, polishing and engraving of other special-shaped stones, ceramics, glass and ceramic stones.
Company Profile
Samet Intelligent Manufacturing Co., Ltd. has 16 years of production experience, 11 years of export experience, can provide hands-on technical support, has an independent research and development team, can provide continuous product and software upgrade and update services.Qualified after-sales technical teams in many countries, which can help customers solve after-sales problems locally.Even can help customers who with zero import experience to provide customs clearance to door service.Accept customized and OEM production, with 4 main production workshops, cnc router engraving machines, fiber laser cutting machines, other woodworking machinery, like sanding machine and pvc banding machine...Our new workshop is for 3d scanners,like laser scanner,3d Shining scanner, we provide the highest quality products, low prices and the best service, one-stop shopping, for all customers Free agent purchasing servicealways looking for powerful agent, work together, win-win.
FAQ
Q1: Can you give us a better price?
A: The more products you buy, the more discounts you get.
Q2: Can I make a OEM order?
A: We can supply different sizes.our products can be customized.But you need to tell us more detailed requirements.
Q3: How does your factory do regarding quality control?
A: "Quality is priority." Our team always attach great importance to quality controlling from the very beginning to the verv end.
Q4: What's your MOQ order?
A: Usually it's a minimum order. If you need more, we can negotiate a discount.
Q5: How to find the right product?
A: You can provide us with photos or your requirements, and we can give you Suggestions as appropriate.
