10/100Mbps 8 Ports Poe Switch with Giga RJ45 Uplink

10/100Mbps 8 Ports Poe Switch with Giga RJ45 Uplink

Negotiable 1 Piece (MOQ)

Basic Info.

Model NO.
S1108EP-2G
Transmission Rate
10/100/1000Mbps
Ports
≦8
IP Protection
IP40
Transport Package
Carton Box
Specification
115x86x30mm
Trademark
POEPLUS
Origin
China
HS Code
8517623200
Production Capacity
1000PCS/Week

Product Description

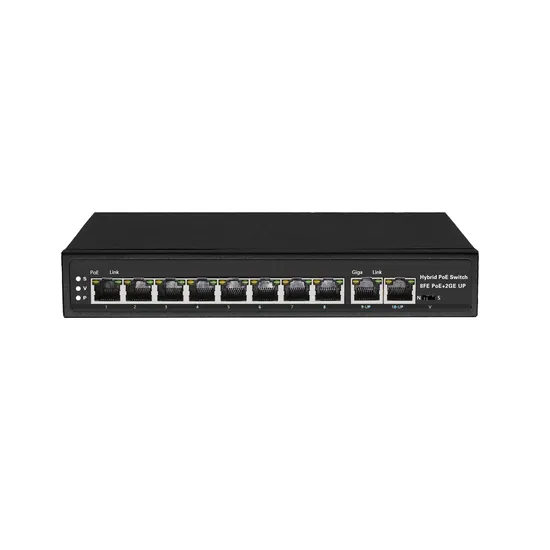

8 Port 10/100Mbps POE Ethernet switch with 2GE uplink ports
Product Description:
The S1108EP-2G is a gigabit uplink 10/100Mbps unmanaged POE switch, which provides eight DATA+POE ports and two pure gigabit data port. Among them, port 1 support HI-POE max 60w output 2-8 follows the 802.3af/at standard and supports maximum power output of 30w. The POE ports of the switch can automatically detect and supply power to the PD devices that complies with the 802.3af/at standard. Otherwise, there is no power supply output. In addition, the switch supports auto-negotiating traffic control functions and is compatible with terminal devices of 10Mbps, 100Mbps.
The S1108EP-2G is usually used to provide power and data transmission for IP cameras, wireless APs, radio, and IP phones. For terminal devices that do not support POE, the POE splitter can be used to provide power supply and data transmission.
The S1108EP-2G adopts plug-and-play design, which eliminates the need for software settings, which greatly facilitates the installation and use of digital monitoring and wireless coverage. In particular, the switch provides a set of DIP switches for easy switching between shared or port isolation modes. In the port isolation mode, 1-8 ports cannot communicate with each other, only through port 9-10 to output data. This mode can effectively suppress the generation of broadcast storms.
Product Features: Ports 1 max 60w POE output Support POEdog function,When a port goes down or the response becomes slow, the port can be automatically restarted to reactivate the PD device Comply with IEEE 802.3, 802.3i, 802.3u, 802.3x, 802.3ab, 802.3q, 802.3af/at specifications. 2*10/100/1000Mbps uplink ports, support for auto-negotiation. 8*10/100Mbps POE ports, support 802.3af/at standard, maximum 30w power output. internal max 120w power supply. Adopt Store-and-Forward transmission mode. Auto MDI-X function, self-adjusting straight-through line, cross-line connection. 4K Mac address table One DIP switch supports port isolation setting and max 250m POE transmission(CCTV mode) Port status LEDs
Datasheet
Model S1108EP-2G
Port 1000M Uplink 2
100M POE 8

Function
Exchange Mechanism Store-and-forward
Exchange Capacity 16G
MAC 4K

Environmental
Working Temperature:0-45ºC
Storage temperature :-40-+70ºC
Working Humidity :10%-90% RH non-condensing
Storage Humidity:5%-90% RH non-condensing
POE IEEE802.3af/at/HI-POE, MAX 60W, total power budget 120W
power AC input 100~240V 50~60Hz

Network protocol
IEEE 802.3X
IEEE 802.3i 10BASE-TX
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-TX
IEEE 802.3af /IEEE 802.3at
IEEE 802.3x Flow control
DIP switch Ports isolation and CCTV mode max 250m transmission switch
Feature Support VLAN, transmission 250 meter

Speed
Ethernet 10Mbps half-duplex, 20Mbps full-duplex
Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex
Gbit Ethernet 1000Mbps half-duplex, 2000Mbps full-duplex

Network Media
10Base-T: Pair 2 Category 3(cat 3) and above UTP/STP(≤100m)
100Base-TX: Pair 2 Category 5(cat 5) and above UTP/STP(≤100m)
1000Base-TX: Pair 2 Category 5e and above UTP/STP(≤100m)
Physical Specifications products size:190mm*130mm*32mm
package size:300mm*175mm*100mm
1.2kg
