Paper Waste Stripping Machine for Gift Box Making

Paper Waste Stripping Machine for Gift Box Making

US$10,000.00-50,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
HTQF- 920CTR / 1080CTR
Placing Form of Template
Horizontal
Die Cutting Tool
Needle / Module
Computerized
Computerized
Automatic Grade
Semi-Automatic
Application
Paper Packaging Materials, Plastic Box
Product Name
Automatic Waste Stripping Machine
Function
for Die-Cut Waste Strip
Applied Product 2
Die-Cutting Paper Sheet
Applied Product
Hardcover Books, Rigid Box, Plastic Box, Hang Tags
Control System
PLC
Additional Function
Hole Cleaning + Rotary Head
Transport Package
Wooden
Specification
3600x1750x1950mm
Trademark
Qianding
Origin
China
Production Capacity
50sets/Month

Product Description

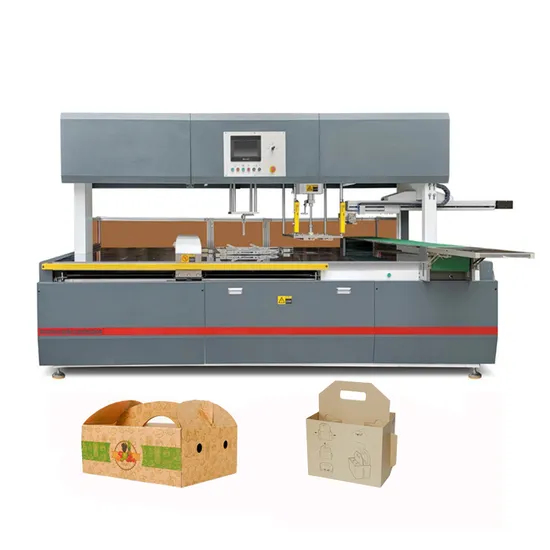

Automatic Waste Stripping Machine

Sample Show

Working Flow

Main Features
Automatic stripping machine is a professional equipment for automatically stripping the waste from die cut paper sheet. It replaces manual labor and greatly upgrades working efficiency of die-cutting products in paper or plastic materials. It applies to print & pack industrial, post-press, after paper creasing and die cutting.This stripper machine make your scrap removal efficient after the die-cutting process. The die-cut strip machine applies to the production lines of hang tags, paper box, paper cup, food box, plastic box, and so on.
1. Taking out finished products after die cutting process,for waste stripping.
2. Applied for many die cutted product such as labels, hang tags, business cards,
gift boxes, food boxes, paper cups and other die cutting products in paper or plastic,
PU leather.
3. Two work heads: one inner hole cleaning + one stripping head
4. Rotary head of stripping to take out the opposite direction die cutting products
easily . 5. Automatically taking out product with manipulator arm and stack product onto delivery belt.
6. PLC controlled with smart & easy operation.
7. Automatic lubrication system for machine better maintenance.
8. Different shapes can be custom-made as customer requirement.
Technical Parameter
Model QDQF-920CTR QDQF-1080CTR
Machine Size L4200xW2250xH2020 L4290xW2490xH2020
Max sheet size (X x Y) mm 920 x 680 1080 x 780
Min sheet size (X x Y) mm 550 x 400 650 x 450
Max pile height / mm 100 100
Min pile height / mm 40 40
Work table height mm 850 850
Max product size to be punched out 420 x 420 390 x 390
Min. product size to be punched out 30*30 30*30
Stripping speed times/min 15-22 15-22
Max. force (bar) 70 70
Air consumption L/min 3 3
Manipulator Grip Range /mm 30-260mm 30-300mm
Manipulator Grip Weight 50-1500g 50-1800g
Max Power 5kw 380V 5kw 380V
Net Weight 2.9T 3.2T
Package Size 3700x1900x2200
Gross Weight 2.5T 3T
Gross Weight 3.6T 4.0T
Company Information
Wenzhou Qian Ding machinery Co., Ltd is a professional manufacturer of waste stripping machine,paper hole drilling machine, we provide perfect solution for the die-cutting product waste removing, save the labor cost very much and make your die-cut product in higher quality. Our machines are widely used for the production lines of box making, gift box making, hang tag making, label making, paper cup making, and other products need to be die-cut.
As a innovation company, we value the technology,and quality very much. We pay attention to the scientific concept of development, enhancing the corporate culture, and injecting the vitality to modern enterprise, which make our company have stronger competitiveness.
