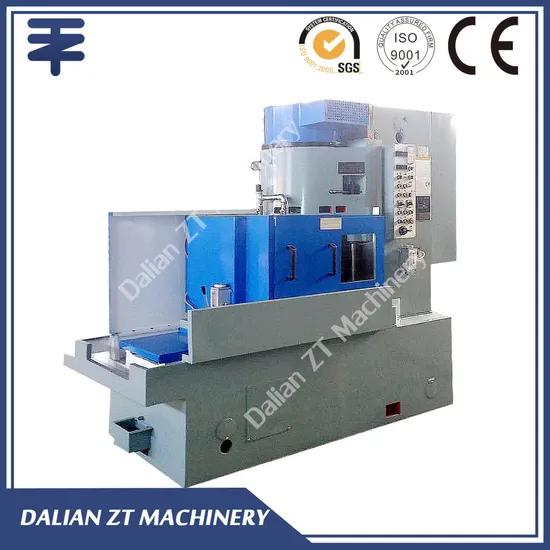

High Efficiency Vertical Spindle Surface Grinding Machine for Automobile Components, Bearing, Magnetic Material & Refractory Materials

High Efficiency Vertical Spindle Surface Grinding Machine for Automobile Components, Bearing, Magnetic Material & Refractory Materials

US$30,000.00-45,000.00 1 set (MOQ)

Basic Info.

Model NO.
M7480E
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Manual
Cylindrical Grinder Type
Surface Grinding Machine
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Worktable Diameter
800mm
Worktable Speed
5-20rpm
Max, Loading
700kg
Max. Workpiece Size
Dia.800X H320mm
Transport Package
Wooden Case
Specification
30kW
Trademark
Dalian ZT Machinery
Origin
China
HS Code
8460191000
Production Capacity
1000 Sets/Year

Product Description

Features:
The grinding range is from Φ500mm to Φ1600mm. is a high-efficiency grinder with round electro-magnetic worktable and vertical wheelhead, with its wheel end-face for flat-surface grinding, so it is used for rough-grinding of stock or rapid-grinding for moderate accuracy, suitable for batch production workshop. If fine-grit wheel is provided, the machine can also be applied for grinding higher finish and higher accuracy workpieces such as bearing rings, piston rings etc. Accordingly, this machine is suitable for grinding in automobile, tractor and bearing industry.
Item M7450 M7480 M74100
Table diameter Φ500mm Φ800mm Φ100mm
Table speed 5-20rpm 5-20rpm 5-20rpm
Max. Swing dia. of workpiece Φ580mm Φ850mm Φ1080mm
Table movement 440mm 520mm
Total machine power 27kW 37kW 53kW
Max. Loading of table 200kg 700kg 1000kg
Grinding wheel size(ODxIDxH) 350x280x125mm 450x380x150mm 560x460x150mm
Spindle speed of grinding head 980rpm 980rpm 740rpm
Grinding head motor 22kW 30kW 45kW
Max. Grinding size(DxH) Φ500x300mm Φ800x320mm Φ1000x320mm
Roughness of machining surface Ra0.8um Ra0.8um Ra0.8um

Standard accessories:
Coolant tank;
Coolant pump;
Cable;
Wrench;
Machine wedge;
FAQ
1. MOQ
1 set
2. DELIVERY TIME
It depends on the machine and model you choose. Mostly 2 months - 4months. All machines are 100% new and not used.
3. PAYMENT TERM
T/T 30% down payment when order, 70% balance payment before shipment.
4. WARRANTY PERIOD
13 months from the date of B/L, during the warranty period, daily damage parts will be supplied freely, the after sale service will be done by dealers . After warranty period, the spare parts will be supplied at factory price.
