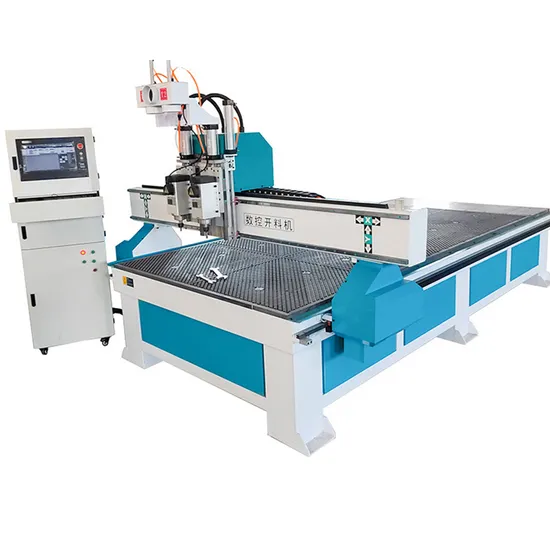

1325 3D Woodworking Cutting CNC Engraving Machine Milling Machine 3 Axis 4 Axis CNC Router Wood MDF Furniture Door

1325 3D Woodworking Cutting CNC Engraving Machine Milling Machine 3 Axis 4 Axis CNC Router Wood MDF Furniture Door

US$2,400.00-3,900.00 1 Set (MOQ)

Basic Info.

Model NO.
CNC1325
Condition
New
Certification
ISO, CE
CNC or Not
CNC
Voltage
Customized
Name
CNC Router
Model
1325
Spindle Power
2kw
Spindle Speed
0-24000rpm
Weight
500kg
Working Length
2500mm
Working Width
1300mm
Working Thickness
200mm
Spindle Motor
3.2kw
Control System
Weihong
Bed Structure
Heavy Duty
Track
High Precision 20 Square Track
Support
Nc Format
Drive Motor
Jeimeikang Driver
Accessories
Knives
Transport Package
Wooden Case
Specification
3000*2000*900mm
Trademark
HiWinstar
Origin
China
Production Capacity
100set/Month

Product Description

1325 3D Woodworking Cutting CNC Engraving Machine Milling Machine 3 Axis 4 Axis CNC Router Wood MDF Furniture Door
Product Description
Working Area(X,Y,Z)
1300mm*2500mm*200mm
Perfect Laser also have the ability to custom-made according to user's special demand
Spindle Power
water cooling
3Kw
water cooling 5.5 Kw

HSD Italy
6Kw
HSD Italy 9Kw
Spindle Cooling Way
water cooling
water cooling
air cooling
air cooling
Frame Structure
Seamless welding steel structure
X,Y Structure
Square Guide Rail, Gear Transmission
Z Structure
Linear guide rail, ball screw
Working Delicacy
0.025-0.05mm
Max Engraving Speed
25,000mm/min
Resolution ratio
0.002mm
Repetition accuracy
±0.02mm
Spindle Rotating Speed
6000 - 24,000rpm
Drive motor system
Step Motor and Step Driver(Option: Servo System)
Operating System
DSP A11 control system
Working-holding
T-slot working table
Dust removing plant
Duct collection (dust prevent setup)
Engraving Command
G code, u00, mmg, PLT, HPG
Command language system
English Version, Windows 98/2000/XP Operation System
Operational Software
Original Type3 Software, ArtCam software or Wentai Software
Command language system
English Version, Windows 98/2000/XP Operation System
Software Compatibility
Support CAD/CAM software, PLT format, Corel Draw, Auto CAD
Working temperature
0-45°C
Relative humidity
30% - 75%


Features
1.Using Taiwan imported square linear Guide, double rows four ranks ball slider, large bearing force, smooth operation, high accuracy and long life.
2.Software compatibility, compatible with type3/Actcam/Castmate/Wentai, and other CAD/CAM design software.
3.Y axis using a dual-motor drive, speed up to 25 m/min above speed, combined with strong cutting spindle engraving speed can be improved.
4.Steel table overall.
5.This model is suitable for 2-3 flower-type knife carving and milling, various patterns of processing without tool change, automatic program execution. Its main feature is to invest less, high profits, less maintenance and easy to operate.
Utility Industry
1.Solid wooden door industry: sophisticated European wooden doors, carved doors, wooden doors, need to toggle a variety of tool products (paint free doors carving, cabinet doors, wooden doors, screens)
2.Woodworking crafts: photo frame cutting, high density board, particleboard, plywood cutting, arc of the violin making, carved solid wood furniture, wooden art mural sculpture, Lightguide plate processing, PP plate cutting, window processing, wave boards, large plate flat carving.
Engraving ;
---engrave various materials
Furniture :
---simple and complex exterior walls (including artistic carvings), furniture linings, exclusive furniture elements with intricate carvings. Curve cutting of DSP, DVP, MDF (including laminated products).
Interior decoration:
---coffee machines and pool tables, reliefs, stairs, skirting and more intricate carvings.
Exterior decoration:
--- carve doors and windows with curly patterns.
--- decorate wooden houses and bathrooms with decorative elements.
--- decorate balconies, pavilions, fences with wood plank patterns.
Customized product:
---mirror frames, panels, images of people and animals, souvenirs, coffins, desks, watches, etc.
Making doors:
--- Milling curved cuts on the fiber door of glass and fiber.
--- Fabrication of fibers, including artistic carving.
--- Wood inlaid doors, lining iron doors, etc.
--- Custom doors made of wood.
Making models :
---make master models, casting models, prototypes, vacuum forming molds by various materials (including aluminum, brass, bronze and plastic molds).
Advertising:
--- Cutting letters, logos, brackets and logos by plastic, PVC, acrylic and other materials.
Packaging & Shipping
Company Information
FAQ
1,Can you offer good price with fine quality also?
Surely,if without quality,we cannot win long market.we will loose long-terms customers.Quality is our responsibility.we must produce and test machine well.Becasue we are always expecing long term business.Regarding the price.
we are not sure if it is lowest or highest,But we will be offering reasonble.We don't want heavy profits,we want a acceptable price to you,and we are expecting a bigger quantities of sales for different wood machines.
2,We will be protetcted if we are paying for orders?
Surely yes,we have been exported 1000000$ different wood machine every year,We received the payment,we should produce for you and ship to you without delay. It is honesty and reputy.We could understand that you paid,you want to see machines soon and use soon.
3,What's your warranty? can you do more service for us? we wish woud be protected after purchasing machine.
We are pleased to give life continious aftersales service. within 12 months, if spareparts broken,we will send you new for change. we would like to help to solve any troubles when you use machine at any time.and don't be worried,we will keep opening 24 hours for all customers problem or difficilaty. we must help to make solutions within 48 hours.
4,What's your production time? we want faster shipping time also.
Mostly machine we have in stock, some machine we produce need about 7-10days. make fast shipment always. shipping time depends on shipping company.
