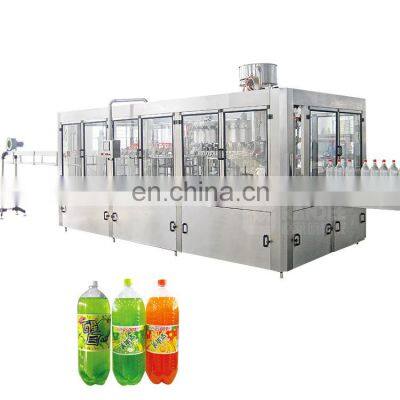

Hot selling fizzy carbonated soft drink soda water washing filling capping making machine bottling plant made in China

Product Description

Product Description
Product Description Hot selling fizzy drink washing filling capping machine made in China Machine description: The production process of the machine is as follows: the conveyor chain is directly connected to the three-in-one machine, and the bottle is transported by star wheel to the three-in-one bottle washer. The bottle gripper is mounted on the rotary disk of the bottle washer, and the bottle gripper clamps the bottle mouth and turns 180° along a guide rail to make the bottle mouth enter the bottle washing machine downward. After the bottle is rinsed and drained, the bottle is clamped and then turned over 180° along the guide rail to make the bottle mouth upward. The washed bottle is exported by the bottle washer and sent to the filling machine by the bottle star wheel. The bottle entering the filling machine is held by the bottleneck holder stuck in the bottle mouth. Filling is done by isostatic filling type. The filling valve contacts the bottle mouth filling CO2 and is isostatically opened filling valve for filling. After the filling is finished, the exhaust pressure is released first, and then the filling valve leaves the bottle mouth, and the bottle enters the capping machine through the card bottleneck transition dial. The anti-rotation knife on the capping machine catches the bottle neck and keeps the bottle upright and prevents rotation. The capping head keeps revolving and self-rotating on the capping machine, and realizes the capping and capping action under the action of the cam, and completes the entire capping process. The finished bottle is transferred from the capping machine to the bottle delivery chain through the bottle star wheel, and the three-in-one bottle machine is transported by the conveyor chain. The whole equipment is closed by closed window, the height of the sealing window is higher than the highest point of the equipment, and appropriate passage is left at the bottle inlet and outlet. Grandee Machinery Can Do For You ? Soda Water Production Line Flow Chart1 RO Water Treatment EquipmentProcess: Spring-raw water booster pump, mechanical filter, precision filter, active carbon filter, sodium exchanger, RO machine/ hollow fiber ultrafiltration device, Store tank, UV sterilizer, ozone generator and other equipment.It can effectively get rid of muddy organic, iron, manganese and oxide, filter suspended substance, colloid, remained oxygen of micro-organism and some of height-metal ion in the water. This water treatment equipment can also reduce hardness of water to make it all specifications of the water quality fully meet the state fresh water standards, even that of standard of mineral water2 Automatic Blow Molding Machine 2 Soda Water Mixing SystemProcess: Sugar melting boiler or High level cutting tank, double filters, syrup pump, blending tank, stroage tankThe output of beverage processing system depending on how many liters per hour for carbonated drink, soda water or juice,etc.Syrup melting boiler: 300L/Hr, 500L/Hr, 1000L/Hr,etc, steam heating or electrical heating type, steam heating boiler will matched fuel oil boiler, but save electricity, eletrical heating type boiler will power-consuming.Blending tank: 1000L/Hr, 2000L/Hr, 3000L/Hr, etc, double layer with warming jacket, motor with blending system Storage tank: 1000L/Hr, 2000L/Hr, 3000L/Hr,etc. double layer with warming jacket 3 Carbonation mixer and Water chiller Process: Water, syrup, CO2 mixing systemCarbonation mixer: 1500L/Hr, 2000L/Hr,3000L/Hr,5000L/Hr,etc. Co2 content is from 2.0-3.8Water chiller: working with carbonation mixer, the cooling medium of water chiller going to heat plate exchanger of carbonation mixer to cooling carbonation drink to 3 degree to 8 degree (filling temperature)4 Automatic sleeve labeling machine Application: PVC PET shrink label Labeling speed: 150B/Min to 500B/MinBottle types: Various kinds of bottle types, for example: round bottles,square bottles,flat bottles, curved bottle and cup-shaped,etc.Different bottle shape or size needs to change the center column and the screw rod of separate bottle 5 Automatic shrink packing machine Application: PE film heat shrinking machine for different bottle sizesSpeed: 8--12bags/min, but has extra choice for bigger capacity like 20-45bages/min Technical dataTypeXGF14-12-5XGF16-16-5XGF24-24-8XGF32-32-8XGF40-40-10XGF50-50-15XGF60-60-15XGF72-72-18Output(BPH)60008000120001500018000240002800035000Measurement(mm)2360*1770*27002760*2060*27002800*2230*27003550*2650*27004360*3300*27005700*5050*27006100*5815*27006120*4650*2700Power(kw)1.52.23.04.07.57.511.011.0 Related productsCompany information Workshop detail Our team Our exhibition Project cases FAQ
