High Quality Factory Customization E-Plane Tee

High Quality Factory Customization E-Plane Tee

US$20.00-199.00 1 Piece (MOQ)

Basic Info.

Usage
Hand Held, TV, Automotive, Home Theatre, Lattop
Wave Range
Ku Program
Model Number
Vswr (Max) 1.25
Place of Origin
Shaanxi, China
Product Name
E-Plane Tee
Material
Aluminium
Vswr (Max)
1.25
Isolation (dB.Min)
23
Warranty
1 Year
Sample
Available
MOQ
1 Set
Packing
Wooden Box
Forward Power (W)
20-150
Insertion Loss (dB.Max)
0.4
Transport Package
Package
Trademark
EF
Origin
China
Production Capacity
50000PC/Year

Product Description

Products Description EF Telecom manufactures a wide variety of E-Plane Tees. The junction of the auxiliary arm is made on the broad wall of the main waveguide. specifica
Model No Freq Range (GHz) WG Type
Flange

Material
IEC EIA
EF-3WET 0.32-0.49 R3 WR2300 FDP/FDM Al
EF-4WET 0.35-0.53 R4 WR2100 FDP/FDM Al
EF-5WET 0.41-0.62 R5 WR1800 FDP/FDM Al
EF-6WET 0.49-0.75 R6 WR1500 FDP/FDM Al
EF-8WET 0.64-0.98 R8 WR1150 FDP/FDM Al
EF-9WET 0.75-1.15 R9 WR975 FDP/FDM Al
EF-12WET 0.96-1.46 R12 WR770 FDP/FDM Al
EF-14WET 1.13-1.73 R14 WR650 FDP/FDM Al
EF-18WET 1.45-2.20 R18 WR510 FDP/FDM Al
EF-22WET 1.72-2.61 R22 WR430 FDP/FDM Al/Cu
EF-26WET 2.17-3.30 R26 WR340 FDP/FDM Al/Cu
EF-32WET 2.60-3.95 R32 WR284 FDP/FDM Al/Cu
WF-40WET 3.22-4.90 R40 WR229 FDP/FDM Al/Cu
EF-48WET 3.94-5.99 R48 WR187 FDP/FDM Al/Cu
EF-58WET 4.64-7.05 R58 WR159 FDP/FDM Al/Cu
EF-70WET 5.38-8.17 R70 WR137 FDP/FDM Al/Cu
EF-84WET 6.57-9.99 R84 WR112 FBP/FBM/FBE Al/Cu
EF-100WET 8.20-12.4 R100 WR90 FBP/FBM/FBE Al/Cu
EF-120WET 9.84-15.0 R120 WR75 FBP/FBM/FBE Al/Cu
EF-140WET 11.9-18.0 R140 WR62 FBP/FBM/FBE Al/Cu
EF-180WET 14.5-22.0 R180 WR51 FBP/FBM/FBE Al/Cu
EF-220WET 17.6-26.7 R220 WR42 FBP/FBM/FBE Al/Cu
EF-260WET 21.7-33.0 R260 WR34 FBP/FBM/FBE Al/Cu
EF-320WET 26.3-40.0 R320 WR28 FBP/FBM/FBE Al/Cu
EF-400WET 32.9-60.1 R400 WR22 FUGP Cu
EF-500WET 39.2-59.6 R500 WR19 FUGP Cu
EF-620WET 49.8-75.8 R620 WR15 FUGP Cu
EF-740WET 60.5-91.9 R740 WR12 FUGP Cu
EF-900WET 73.8-112 R900 WR10 FUGP Cu

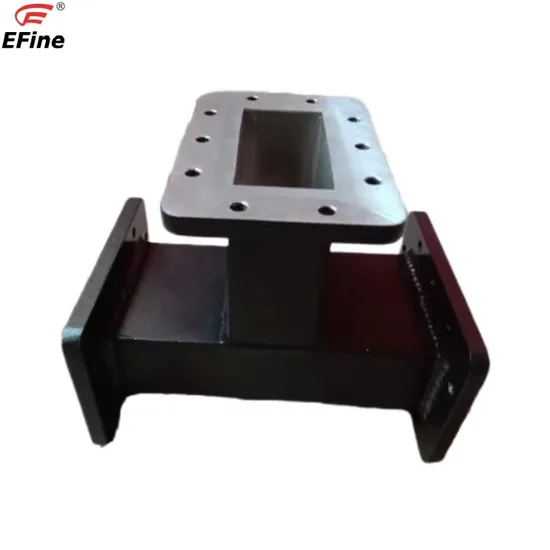

Product picture
Product Description 1.Radar Cross Section We provide state-of-the-art radar cross section measurement systems suitable for measuring small-scale test articles and/or full-scale vehicles depending on customer requirements.
2.Radome Testing
The military and commercial aircraft carry a vast array of antennas for specialized and vital functions. Communications, navigation, weather and fire control antennas must perform as specified to meet safety and mission requirements. Radomes must conceal and protect antennas without interfering with or degrading transmit/receive capabilities.
3.Satellite Antenna Testing
RF testing of flight hardware poses challenges that are unique to the space industry and antennas specifically, are often delicate and gravitationally sensitive. Minimizing or even avoiding motion of these antennas during testing is highly desirable for two reasons: Firstly, it minimizes risk to the antennas. Secondly, the standard gain horn antenna can be deployed with respect to a fixed gravity vector.
4.Wireles
Wireless networks rely on antennas and our products allow for the reliable characterization of these antennas. We offer test systems that are suitable for evaluation of electrically small handset or other UE antennas, as well as electrically large base station antennas. Packaging & Shipping
Company Profile
Xi'an EFine Telecom Technology CO.,Ltd (EFine Telecom hereinafter) is a leading microwave waveguide components, assemblies and antenna systems manufacturer in China. Established in 2011, EFine Telecom is continually growing to meet customer's needs. Our highly trained design engineers and manufacturing personnel can handle both standard and custom products to meet your needs. Our in house design, manufacturing, inspection and quality control capabilities allow fast response to customer requirements. Our standard delivery time is only half of the average western supplier's standard delivery time. Our microwave measurement capability up to 60GHz makes us the best choice for the design and manufacturing of your components. We implement TQM (Total Quality System) and SOP (Standard Operation Procedure) with ISO 9001:2017 certification, which assures WinFine Telecom's strong commitment to quality standards and customer satisfaction. We are confident we offer well-engineered, high quality products at globally competitive prices. Our mission is to satisfy our customers by providing timely and cost effective solutions without compromising quality, performance and delivery. Manufacturing Technique
FAQ 1.Q: Are you a manufacturer or trading company?
A:Yes, we are manufacturer.Our company has 15 years of professional experience in the telecom field, which can design, manufacture a wide range of microwave waveguide components, coaxial components, antennas and other telecommunication components to global market.
2.Q: How to make an OEM order?
A: 1.We will manufacture these products based on the mechanical drawings you provided. Some minor alterations might occur during the process of production to ensure we can meet your electrical specs requirements. Alternatively, we may go for the first set as samples and see whether it meet your specification requirements. After communication, the buyer and the seller reach an agreement on product details, packaging, purchase quantity, unit price, delivery time and payment terms.
2.The buyer sends a formal PO (purchase order) or the seller sends a formal PI (proforma invoice) with detailed terms and conditions.
3.Q: How do you solve after-sales service issues?
A: After receiving the goods, if you have any dissatisfaction or other issues, please contact us ASAP, we will give you a fast response and reasonable solution.
4.Q: How long is your delivery time?
A:Usually 7-15 working days after receiving your 100% payment. For bulk orders: 15-35 working days after receiving the deposit.
5.Q: How do I get samples?
A: We need to receive your payment before we can send the samples to you. After the customer confirms the order, we will reduce the sample cost. However, if you are our regular customer, we can send the sample to you and then deduct it from your account in the next transaction.
6.Q: What are your payment terms?
A: Small batch orders or urgent orders, you can choose PayPal, Western Union, Escrow to facilitate buyers, 100% payment before shipment; for large orders: 30%/50% of T/T as deposit, the balance before shipment.
7.Q: How about the warranty?
A: We can provide 1 year warranty.
