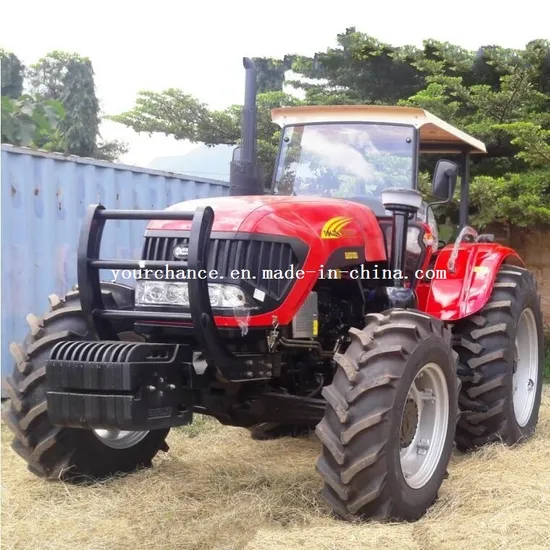

Peru Hot Sale High Quality Dq1504 150HP 4WD Four Wheel Agricultural Farm Tractor

Peru Hot Sale High Quality Dq1504 150HP 4WD Four Wheel Agricultural Farm Tractor

US$24,700.00
1-2 set
US$23,700.00
3-8 set
US$23,300.00
9+ set

Basic Info.

Model NO.
DQ1504
Power Source
Tractor
Traction Type
Traction
Drive Type
Gear Drive
Certification
CE, ISO Pvoc Coc
Color
Green, Blue, Red, Other Colors
Transport Package
Nude or Iron Crate Packing
Specification
big tractor
Trademark
CYC
Origin
China
HS Code
8701941090
Production Capacity
50000 Sets Per Year

Product Description

Peru hot sale High quality DQ1504 150HP 4WD Four wheel Agricultural Farm Tractor
Tractor Main Features and Advantages:
1.Equipped famous brand engine showing advanced capacity,low fuel consumption,high economic efficiency.
2. Streamlined appearance design, beautiful and generous.
3.Transmission Case adopt meshed shift and add the gearbox interlock device makes the operation more smoothly,reliable and easier.
4. Double action clutch with disc spring, perform steadily and easy to operate.
5. Fully hydraulic steering system greatly reduced driver's work strength.
6. Wet disc brake device, reliable brake performance.
7. Separate injection of hydraulic oil, reliable to operate.
8. The lifter with force and position adjustment, with reliable lift.
9. Tractor PTO:
PTO in Double speed : 540/760r/min Optional, For high working efficiency.
PTO shaft of 6 or 8 spline Optional, adaptable for agricultural equipment of all over the world.
10. Big Chassis and Heavy-duty Rear axle for Durable Strong machine.
11. Full series light, ROPS,Sunshade/Canopy, Fan/Heater/Air-conditioned cabin are all available, for more comfortable driving environment.
Tractor Main specificaiton and Technical parameters:
Model DQ1504
Drive type 4x4, 4WD wheel type
Engine
Engine brand and model YTO brand, diesel engine Model LR6M3Z-23
Type In-line, direct injection,Water cooling, four stroke,6-cylinder
Aspiration way Turbo
Engine power at rated speed 110.3kw/150HP
Rated Power of PTO 94 KW
Max. traction Force (KN) 32.5
Displacement(L) 7.13
Compression ratio 18:1
Rated speed (r/min) 2300
Lowest fuel consumption (g/kw.h) ≤210
Cylinder·Bore·Stroke 6-110×125
Fuel tank capacity (L) 350
Muffler Dimension (Dia.×Length) (mm) φ600×295×140
Muffler weight (kg) 7.2
Steering type Full Hydraulic steering
Transmission
Clutch USA JpV brand, 13 inch dual-stage Clutch
PTO Speed (rpm) 540/1000
Gearshift 16F+8R
Speed range (km/h) F: 1.37-32.93 / R:2.09-30.63
Driving brake Wet, disk, hydro-static operate
Gearbox 4×2×(2+1)
Gearbox shifting way Joggle cover
Walking system
Frame type Frameless
Tyre size( front/rear) 14.9-26/18.4-38
Pressure( front/rear) (kPa) 157-196/150-200
Rim material 330CL
Working device
Lifter type Semi-detached model
Max. Lifting force (KN) 27
Suspension model Rear, three-point linkages
Suspension category Category II or III
Adjusting control Position control, float control
Hydraulic pump type Gear pump CBN-E325L
Hydraulic output valve 3 Groups
P.T.O. type 1 type, rear
Spline no. of P.T.O. 6( standard), 8, 21
Diameter of spline 35
RPM 540/1000 or 760/1000
Technical parameter
Overall Dimension (LxWxH) (mm) 5240×2345×2995
Wheel base (mm) 2530/2657
Track base-Front /R(mm) 1650-2285 (1950 ex-work) /1620-2420 (1850 ex-work)
Track base adjusting way Limited/unlimited
Minimum ground clearance (mm) 520
Min. operational weight (kg) 4755
Front /Rear axle weight (kg) 2050/2705
Front Ballast 440kg (11 pcs, 40kg/pcs)
Rear Ballast 520kg (2 lays each side)
Covering Air-conditioning Cabin or Sunshade (Canopy)
Structure weight (kg) 5400(without cabin)/5780 (with cabin)

Advance Manufacutring Line:
Strictly Inspecting and Full Testing for ensuring high quality product:
Tractor Packing and Loading container for Delivering goods :
Various Transport modes and Delivery term to meet different customers demand :

Best price will be quoted for you as soon as receive your Requirement !
