UPVC PVC Hollow Corrugated Roofing Sheet Production Line Making Machine

UPVC PVC Hollow Corrugated Roofing Sheet Production Line Making Machine

US$110,000.00 1 Set (MOQ)

Basic Info.

Model NO.
SJSZ-80/156
Type
Sheet Extruder
Plastic Processed
PVC
Product Type
Extrusion Molding Machine
Feeding Mode
One Feed
Assembly Structure
Separate Type Extruder
Screw
Twin-Screw
Engagement System
Full Intermeshing
Screw Channel Structure
Deep Screw
Exhaust
Exhaust
Automation
Automatic
Computerized
Computerized
Raw Material
PVC Powder, CaCO3, Chemical Additives,ASA
Capacity
300-400kg/H
Temperature Control
Omron
Contactor
Siemens
Inverter
ABB
Motor
Siemens
Transport Package
Export Standard
Specification
400.00cm * 300.00cm * 250.00cm
Trademark
Dingkun
Origin
China, Qingdao
HS Code
847790000
Production Capacity
20sets/Month

Packaging & Delivery

Package Size
400.00cm * 300.00cm * 250.00cm
Package Gross Weight
4000.000kg

Product Description

Product Overview
Plastic PVC UPVC Roof Sheet Making Machine
We can produce pvc roof tile machine of wave type ,trapezoidal type ,glazed type ,with a width range from 650mm to 1360mm ,common widths such like 900mm 1050mm 1130mm. The pvc roof sheet is suitable for tropical weather with advantage of anti-corrosion, rust-proof,strong durability, and beautiful appearance, easy and fast installation. It is widely used in the factories , sports stadium, schools, agriculture industry, marine, and warehouse, commercial buildings.

Processing Flow
Mixer→Auto loader→SJSZ80/156 conical twin screw extruder →Mould→ Vacuum Calibration platfrom→Edge cutter→Hual off machine→ Transversal cutter → Stacker
PRODUCT SPECIFICATIONS
PVC raw materials Loading and Mixing system
1. Spiral Loader or Vacuum auto Loader
one set
2. High speed Heating Cooling Mixer unit
one set

PVC Roof Tile Extrusion Line
1. Spiral Loader
one set
2. SJZ80/156 Conical double screw Extruder and co-extruder
one set
3. Mold and distributor
one set
4. Vacuum Calibration platfrom
one set
5.Side cutting
one set
6. Haul off unit
one set
7. Cutting unit
one set
8. Stacker
one set

Sheet/Plate Recycling machines
1. Sheet Crusher/Grinder
one set
2. PVC Pulverizer/Miller
one set

Specific information
Finished Product Size
width:650-1360mm thickness:1-4mm
Main Material
PVC/CaCO3/Processing Additives/ASA
Extruder
80/156 Conical Double-Screw Extruder+co-extruder
Production Capacity
400kg/h
Line speed
0.5-3m/min
Power
255kw


1. SJZ80/156 Conical double screw Extruder
Machine Electrical part:ABB inverter,Siemens Motor,Electrical wire is CE export standard Motor :75kw SIEMENS Gear Box: JC Brand / DELING Screw& Barrel : Zhoushan Control system : Siemens Screen touch control or RKC or OMRON table control.
2.Mould Die
Mold type: Coat hanger runner, uniform discharge. Head surface:0.04-0.05mm. Effective width: 1300mm Heating zones: 7zones Heating power: 3.5kw×7zones

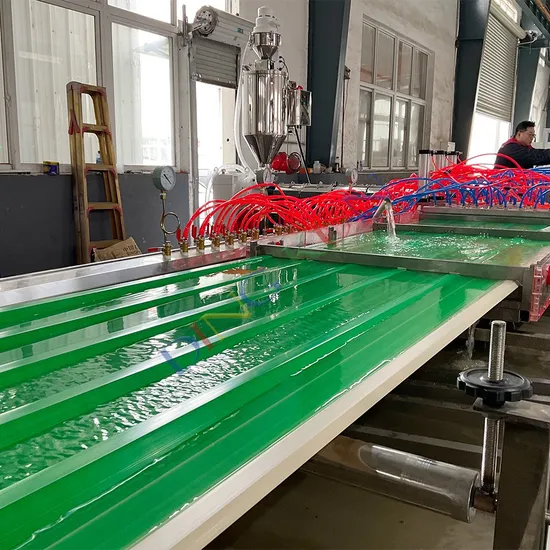

3.Vacuum Calibration platform
Length 6m equipped with strong cooling device which ensures the cooling effect.
4.Haul-off machine
Equipped with the precise speed reduction motor and inverter,has the advantages of reasonable structure,powerful and stable haul off force.
5. Cutter and Stacker
cutter has the reliable and accurate cutting performance. PLC Control

Delivery

Exhibition & Customers

Company profile
DINGKUN is committed to providing full support for its local and international clients and dealers and will always provide a prompt response to customer enquiries. 1. Provide all the machines for the complete production according to customer's requirements. 2. Provide complete service for factory layout and other information to help customer to build the factory. 3. Provide the raw material to the customer if need. 4. Provide good service for machine installation and training, until the customers can run the machines and make stable production. 5. Provide after-sell service for all the life, except one year quality guarantee, 6. Provide good quality, good price and good service to customer. We are the professional and trustable supplier for turnkey projects. Let us do win-win business together
If you are interested in our machine ,please contact Anny Liang
