Scaffolding Production Equipment Inverter Welding Tools

Scaffolding Production Equipment Inverter Welding Tools

US$15,000.00-15,500.00 1 Set (MOQ)

Basic Info.

Model NO.
JS-SG0208
Technical Class
Pulse Laser
Control
Automatic
Power Density
Heat Conduct Welding
Laser Classification
Optical Fiber Laser
Type
Automatic Laser Welding Machine
Transport Package
Plastic
Specification
2.8M*2M
Trademark
JINSHI
Origin
China
HS Code
8479899990
Production Capacity
10000PCS/Year

Product Description

Product details
The equipment is an automatic welding machine for the production of scaffolding coil buckle vertical rod, which can realize automatic tube loading, automatic spot welding and automatic ring welding. Automatic drop parts and automatic transfer robot palletizing the whole process of cyclic work. Beautiful weld, save cost, improve production efficiency.
Size can be customized according to customer requirements
The equipment is mainly used for: automatic spot welding and ring seam welding of scaffolding bracket buckle.
(Sleeve welding can be added)
Scope of welding parts applicable: (can be customized according to customer requirements)
1. Tube length: 0.5-1 m.
2. Round pipe diameter: Φ48 and Φ60.
3. Number of round pieces: 1-2.
4. Workpiece radial runout error: < 1mm (±0.5mm)
5. Workpiece length error: < 1mm (±0.5mm)
Equipment features:
1, the ideal weld formation reduces the grinding time and welding material waste, uniform welding weld appearance.

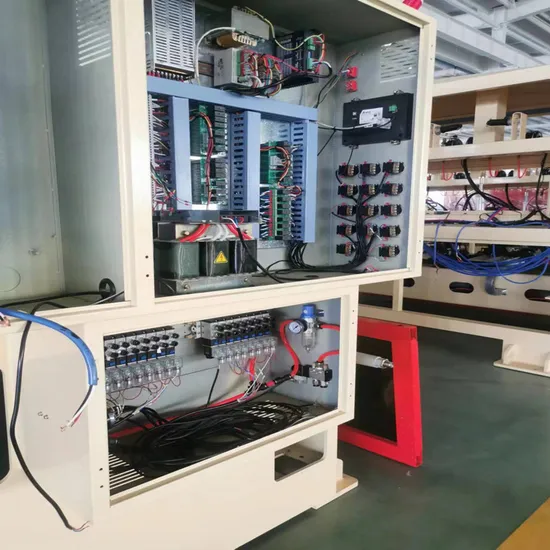

2, PLC+ industrial touch screen, man-machine interface. The components of the control system are imported or well-known domestic brands. welding
The speed is stepless and adjustable, the operation is simple and convenient, the working performance is stable and reliable, and the machine, electricity and gas are controlled in one.
3, pneumatic clamping workpiece, fast speed, welding gun Angle humanized adjustment, 5 welding machine at the same time, improve the work efficiency.
4. Automatic unloading. Reduce the labor intensity of workers.
Main technical index

Control input power supply Three phase four wire380V/50HZ
Spindle motor 86BYGH156/Stepper motor 6A
Load duration 100%
Air source pressure adjustment range 0.2-0.8 mpa
Maximum adaptive workpiece 1000mm
Spindle speed 0.5-200rpm
Spindle drive mode Stepper motor
Spindle speed control mode PLC control
The adjustment mode of sending and withdrawing guns pneumatic
Decelerating mechanism Turboworm reducer
Body size (length * width * height) 2600*2100*2250

Company honors and qualifications:
Corporate office area:
With high quality products and excellent reputation, Golden Lion sells well all over the world, helps enterprises solve production problems, helps enterprises develop, and establishes long-term cooperative partnership with well-known enterprises at home and abroad. Your success is the eternal pursuit of Golden Lion welder! Let us hand in hand, sustainable development, create brilliant!
Frequently Asked Questions
If I have some problems, what should I do?
-You can contact our salesman directly, our engineer will check the problem. We Provide proofing service before sale and free technical training, online technical guidance, video guidance
How long is the warranty?
-We offer a 1-year warranty(except for the consumable parts like Lens). The supplier will provide detailed information as soon as possible.
If you need help, we have a professional team to help you.
If you have other mold needs technical instruction and video instruction are also provided.
Packaging&Shipping
1. Cleaning machine.
2. Wrap all the machine and parts with bubble film and plastic film.
3. Forklift the packed machine to the container.
4. Choose the optimal routes and transportation modes according to the distance.
If you have any questions,please contact us!
