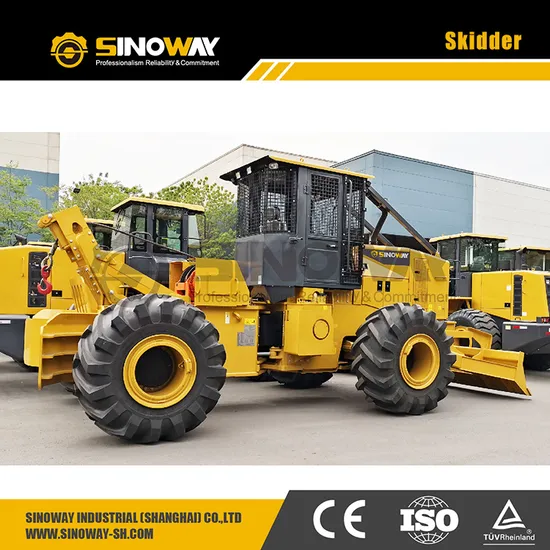

Compact Forestry Log Grapple Cable Skidder with Wood Clamp for Sale
| US$118,000.00-128,300.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SWS250K
Certification
CE
Brand
Sinoway
Model
Sws250K
Engine
Weichai
Rated Power
178kw
Winch Drum Width
230mm
Operating Weight
19700kg
Fields Service
Available
Transport Package
Nude
Specification
ISO
Trademark
SINOWAY
Origin
China
HS Code
84294090
Production Capacity
100 PCS / Year
Product Description
SINOWAY skidders deliver wood to roadside at the lowest cost in a variety of terrain conditions, tree sizes and species. Build quality, durability and operator ergonomics are unmatched.Machine Show
Specifications
| Item | Unit | Standard configuration | ||
| Purpose | Integral cab equipped with reinforced frame , safe and reliable. The rear axle is equipped with limited slip differential to avoid slipping of the tire. The new generation of SINOWAY skidder is widely used in the collection & transportation of various kinds of wood under the working condition of primitive forest. | |||
| Winch drive form | Driven by hydraulic motor | |||
| Operation form of rope laying | External control of the whole machine, manual control | Control in the cab, electrohydraulic control | ||
| Maximum traction force of wire rope | KN | 204 | 250 | |
| Maximum speed of wire rope | m/min | 10 | ||
| Drum capacity (diameter x length) | mm/mm | Ф 22 x 33 | Ф 28 x 30 | |
| Winch drum diameter (type of rope winding) | mm | 273 | 295 | |
| Winch drum width | mm | 230 | 245 | |
| Lifting height of push plate | mm | 1381 | ||
| Cutting depth of push plate | mm | 456 | ||
| Operating weight | Kg | 19700 | ||
| Engine power | Kw | 178 | ||
| Wheelbase | mm | 3680 | ||
| Tread | mm | 2622 | ||
| Speed | F1 / R1 | Km/h | 6/6 | |
| F2 / R2 | Km/h | 11/11 | ||
| F3 / R3 | Km/h | 22/22 | ||
| F4 / R4 | Km/h | 38/38 | ||
| Tire type and pattern | 23.5-25 Herringbone | |||
| Swing angle of front axle | ° | ±12 | ||
| Turning radius (outside of tire) | mm | 6370 | ||
| Overall dimension (length x width x height) | mm | 7700 x 3220 x 3550 | ||
