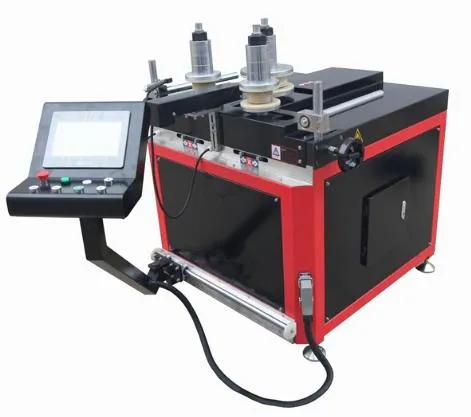

Good Quality Pipe and Tube Bending Machines 3 Axis CNC PVC Aluminum Profile Bending Machine

Product Description

Good Quality Pipe and Tube Bending Machines 3 Axis CNC PVC Aluminum Profile Bending Machine
Product Description

Product Parameters

Machine feature:
1. The machine is mainly used for bending for metal materials such as Iron, copper.and aluminum and special-shaped
material. It's ideal equipment of curved process for furniture manufacturers, wrought iron engineering manufacturers,
aluminum alloy doors and Windows manufacturers, decorative steel structure enterprise.
2. The machine adopts CNC controller, which make the machine features easy.handling and high precision.
3. Using CNC software, makes the bending operation very simple.
4. Can bend many shapes such as C shape, U shape, S shape, the whole circle and spring.
Parameter:

CNC aluminum roll bending machine
Model			LWG-CNC-13T-3
Power supply			3phase 380V 50Hz
Total power			4.0kW
Y axial hydraulic thrust			13T (Max:20T)
Repeat positioning accuracy of Y axis hydraulic cylinder			≤0.01mm
Maximun torque of X axis			2500N.M
Three shaft speed			1-15r/min
Axial spacing			280-600mm
Min. bend radius			R=100mm
Spindle diameter			50mm
Machinable Max. size			W*H=120*150mm
Host size			L*W*H=1500*1200*1400
Total Weight			900kg

After Sales Service

Packaging & Shipping

Company Profile

Jinan Truepro is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with
well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish
designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.
We believe that "IT'S THE BEST THAT FITS MOST."
Every machine could be customized to meet your special requirement.
FAQ

1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.
2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines
3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation
training. All of our engineers have passport.
4. If I make Aluminum window and door, how many basic machines do i need?
1)double head cutting saw
2)Lock hole copy milling machine
3)End milling machine
4)Automatic Corner connector automatic cutting saw
5)Single head Corner combining machine
