US$3,000.00-4,000.00
|
1 unit
(MOQ)
|
Basic Info.
Portable Harvester Type
Side Hanging Type
Certification
ISO9001:2008, CE
Application Field
Agriculture
Usage
Rice & Wheat Harvesting
Engine Type
192f Air-Cooled Diesel Engine
Rated Power
9HP (6.6kw)/, 2600rpm
Oil Consumption(Kg/Mu)
1.0
Productivity(M2/H)
667-1000
Dimension(M)
2.7X1.42X1.35
Transport Package
in Iron Crates or Assembly
Production Capacity
20, 000 PCS/Year
Packaging & Delivery
Package Size
230.00cm * 230.00cm * 60.00cm
Package Gross Weight
500.000kg
Product Description

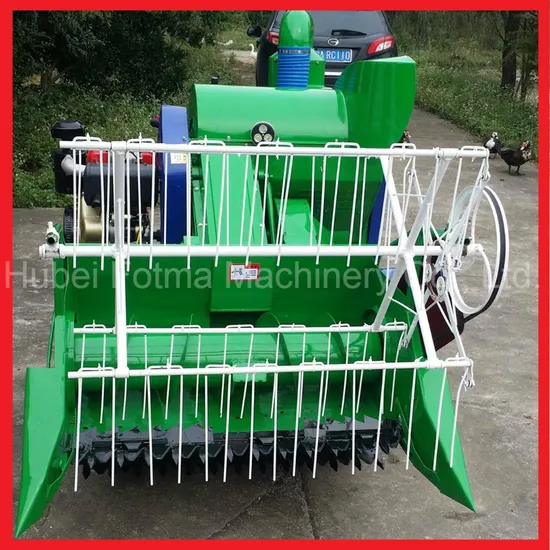

Rice & Wheat Mini Combine Harvesting Machine(4LZ-0.8)
1. Why choose us?
FOTMA is the leading and professional supplier in China for rice & wheat mini combine harvester!
FOTMA has over than 17 years experience with combine harvester and agricultural machine!
FOTMA can supply the best price and professional service!
FOTMA has good reputation with all world customers!
FOTMA is 13 year Gold Member at Made In China!
2. Product description
Rice & Wheat mini combine harvester is a kind of multi-functional combine harvester, which is used to harvest rice as well as wheat and other grain. It can thresh and remove impurities in the field. It is specially suitable for hilly and mountain lands or areas where general combined harvesters can not enter in. Our 4LZ-0.8 rice & wheat mini combine harvester is small in size, light in weight, simple for operating and cheap.
3. Features
1. Simple structure
Easy to maintain, repair and maintenance can be conducted by person capable to repair bikes.
2. Back position operation
Safe, convenient and quick for up and down slope or field transfer. Optional for electric starter, easier for operation.
3. Connected structure
Easy to disassembly and assembly, only by four screws it can be divided into harvesting assembly, diesel engine and chassis for manual carrying.
4. Tire caterpillar
Longer service life, better trafficability in deep mud fields; Suit for various road surfaces.
5. Double pole harvesting
Low stubble, high efficiency, magnificent drop the fuel consumption, longer service life.
6. Outer grass protection structure
No grass twisting during threshing, low load, clean threshing, with loss rate lower than machines of the same kind.
7. High lifting range of the cutting platform
Suit for grains of various height, easy to cross field banks. Automatic hydraulic lifting, easier to operate.
8. Throwing type air separation
Clean for air separation: Fewer paddies lost. Simple structure, few troubles; Free from dew effect, all climates operational.
9. Certificated by authorized institution
Combined technical performance at leading level among small harvesters of the same type in China.
10. Less investment for this machine
Quick capital return, generally the buyer can return the invest and get thousands or even tens of thousands RMB in a year.
4. Technical parameters
Type | crawler type walking harvester |
Usage | Rice & Wheat Harvesting |
Cutting width | 120cm |
Engine Type | 192F diesel engine(9.2KW/12.5hp) |
Total Lost | <2.5% |
Breakage ratio | <0.5% |
Impurities ratio | <5% |
Weight | 470kg(with engine) |
Dimension | 2.7 x 1.42 x 1.35m |
Packing dimension | 2.2*1.32*1.2m |
Min. Ground Clearance | 320mm |
Stubble height | 12-75cm |
5. Photos
6. Package
7. Payment
If you would like to get an offer or place an order, Contact us with the products name, model, quantity desired or a description if not listed in our website. All of our prices are for dealership based on wholesale purchase. We offer various payment options such as Wire Transfer (T/T), Letter of Credit at sight, Paypal, Westunion etc.
8. Shipping
We have worked with many world famous shipping carriers and can arrange shipment to any country in the world, it can save your time and money. We can provide airfreight and ocean service.
9. Contact us
Ms. Mavis Zheng
Hubei FOTMA Machinery Co., Ltd
Add: No. 52 Guanggu Avenue, Hongshan, Wuhan city, Hubei Province, P.R.China.
