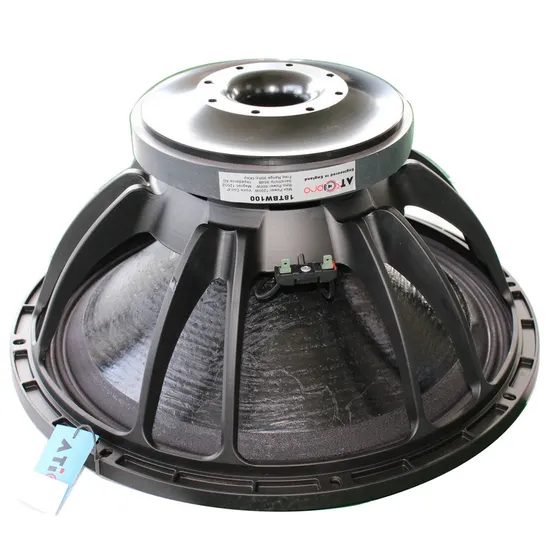

18tbw100 Woofer B&C Style Lf Driver Tranduer Rcf

18tbw100 Woofer B&C Style Lf Driver Tranduer Rcf

US$21.50-45.50 20 Pieces (MOQ)

Basic Info.

Model NO.
18tbw100
Activity
Passive
Operation Mode
Wire / Remote Control
Speaker System
Mono
Speaker Material
Metal
Application
Commercial
Certification
CE, RoHS
Monitor
N/a
THD
<0.03%
Transport Package
Carton Box
Specification
18"
Trademark
OEM/ODM
Origin
Ningbo
HS Code
8518290000
Production Capacity
50000PCS/Year

Product Description

Full series speaker we can make for you
For more information,please ask our sales,they weill send details soon.
LOUDSPEAKER DETAILED SPEACIFICATION
Customer: Model No.: 18TBW100
Norminal Diameter: 460 mm Bitmap
Norminal Impedance: 8 Ohms
Power Rated (AES): 800 Watts
Sensitivity (1m/w): 96 dB
Frequency response: 35~1500 Hz
Voice coil Dia.: 4 Inch
Voice coil Material: Glass Fiber / Copper
Basket (Frame): Aluminium
THILE-SMALL PARAMETERS
V.C.DC resistance: Re 5.6 ohms
Resonance frequency: Fs 35 Hz Bitmap
Mechanical Q factor Qms 8.25
Electrical Q factor Qes 0.425
Total Quality factor Qts 0.41
Mechanical Moving mass Mms 240 g
Mechanical compliance Cms 382 um/N
Force factor BL 26.5 Wb/m
Equivalent Acoustic Volume Vas 160 it.
Max linear displacement X max ± 12mm
Referance effciency ηo 2.12%
Diaphragm Area Sd 1210 Cm2
V.C.inductance @1K Hz Le 2.45 mH Bitmap
MOUNTING INFORMATION
Overall Dia.: 460 mm
Mounting holes Dia 8-Φ6.5 mm
Bolt circle Dia 442 mm
Baffle cut-out Dia.: 422 mm
Overall Depth: 242 mm
Measurement 0.07 cbm
weight: 15.2 Kgs
