Wind Cooling Air Bubble Film Recycling Machine
| US$5,000.00-30,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
FT-A90
Raw Material
PE
Screw
Single-Screw
Inverter
Inverter
Electromagnetic Heater
Electromagnetic Heater
Automation
Automatic
Computerized
Computerized
Customized
Customized
Certification
CE
Condition
New
Output
65-135kg/H
Transport Package
Wooden Case/Wooden Block/in Nude
Specification
FT-A90/100/110/120
Trademark
Fangtai
Origin
Ruian China
HS Code
8477201000
Production Capacity
20set/Month
Product Description

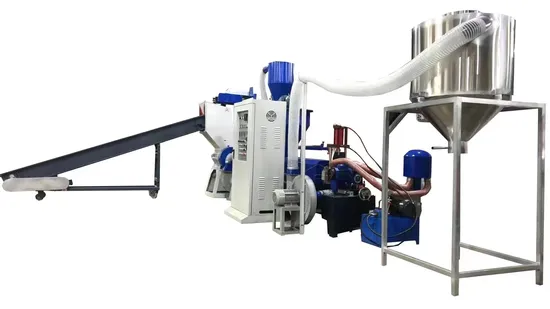

Wind-cooling Hot-cutting plastic Recycling Compounding MachineCharacteristics
This raw materials like waste films of HDPE and LDPE and extruded through the extruder,and then are cooled through wind and cut hotly into granules,featuring in fine quality,bubble free and moisture free.The machine is equipped with a forced feeder,fast mesh changer and automatic temperature controller.
Optional Equipment
1) Hydraulic Net Changer
2) Force Feeding
Main Technical Variables
| Model Type | FT-A90 | FT-A100 | FT-A110 | FT-A120 |
| Diameter of Screw Stem | Φ85 | Φ95 | Φ105 | Φ115 |
| Major Diameter of Screw Stem | L/D20:1-22:1 | L/D20:1-22:1 | L/D20:1-22:1 | L/D20:1-22:1 |
| Rational Speed of Screw Stem | 10-100r/min | 10-100r/min | 10-100r/min | 10-100r/min |
| Main Motor Power | 18.5kw | 22kw | 30kw | 37kw |
| Output | 68kg/h | 95kg/h | 120kg/h | 135kg/h |
| Weight of Overall(kg) | 2600 | 2800 | 3000 | 3200 |
| Cover Dimensions(L*W*H)(mm) | 4000*1500*1800 | 4200*1500*1800 | 4400*1500*1800 | 4600*1500*1800 |
