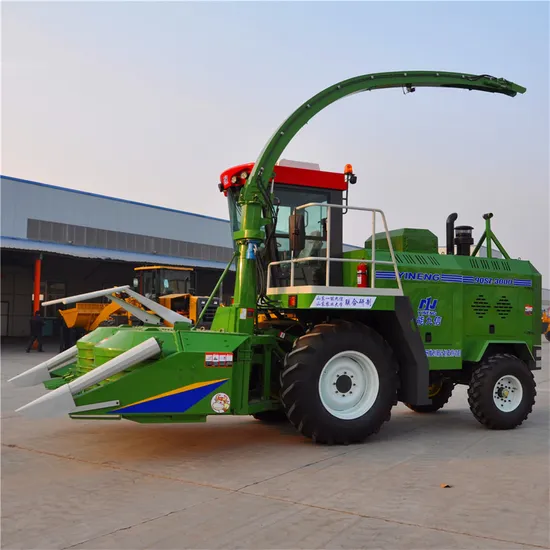

Ce 9qsz-3000 Green (yellow) Forage Harvester

Product Description

1. Features:
1\Using the Germany champion's disc technique vertical cutting platform, working width 2.4meters
2\The engine by Yuchai engine, output power of 190 horsepower, reliable quality, fuel consumption is small;
3\Free switching between 4WD walking and 2WD walking modes, improve the machine environment adaptability.
4\Adopt the operating system of electro-hydraulic control and CVT, electronic header, which is convenient for driver to operate;
5\Cast spout is in the way of rotating turbine, can be controlled wirelessly and remotely by handle;
6\Large capacity dump hopper, easy for the car-following operation;
7\Adjust the cutting length of the materials in multi-polar. The unique grain crushing and scrubbing device, straw rubbing rate is more than 95%, grain crushing rate is more than 90%.
2.Main Specifications:

Items	Parameters
Operation way	Auto-run unlevel harvest
Cutting table type	vertical cylinder
Operation Range	2400mm
Operation speed	4-8km/h
Efficiency	20-60T/h
Cutting Length	7-50mm(adjustable)
Loss rate	≤3%
Min cutting height	≤150
Engine Power	140kw(190hp)
Dimension	7100*2850*4730mm
Overall weight	6900kg

Remark: Heavy chassis for standard
3. Quality certificate:
(1) CE Approved.
(2) Obtained the certificate of ISO9001:2008.
(3) Manufacturing license number:
4. Others:
(1) Packing: 1 unit naked within 1 x 40HQ container
(2) Delivery time: 40 days
(3) Accidental benefits: Customers can purchase wearing parts according to the parts list we offered.
(4) Guarantee Period: One year
(5) Offer Validity: 30 days
