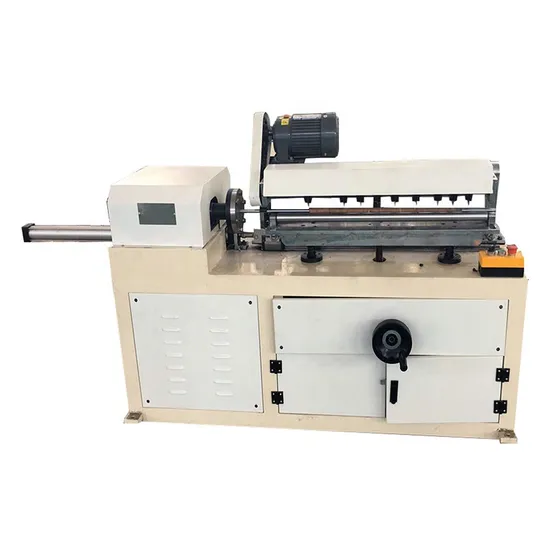

Foresight Technology Paper Tube Cutting Machine Paper Tube Recutter

Foresight Technology Paper Tube Cutting Machine Paper Tube Recutter

US$5,700.00 1 Set (MOQ)

Basic Info.

Model NO.
JT-800A
Paper Core Usage
Industry
Tube Machine Type
Bending Machine
Gumming Type
No Glue
Layers of Roll Paper
9 - 16
Reelpipe Speed
12 - 18m/minute
Wall Thickness of Paper Tube
1mm-10mm
Certification
CE
Condition
New
After-sales Service
Supply
Max. Paper Core Diameter
76 mm
Paper Core Cutting Length
20-800 mm
Main Roller Rotary Speed
25 Times/Minute
Rotary Motor Power
1.5 Kw
Min. Paper Core Diameter
6 mm
Air Pressure
0.6MPa
Cutter
10 Sets
Weight
500 Kg
Diamension
1900X1050X650mm
Cutting Precision
0.01 mm
Transport Package
Flexible Wrapping and Wooden Case.
Specification
CE, SGS, ISO: 9001
Trademark
Jota Machinery
Origin
China
HS Code
84411000
Production Capacity
50 Set/ Year

Product Description


Foresight Technology Paper Tube Cutting Machine Paper Tube Recutter
Suitable to cut the core inner diameter from 6mm to 76mm by changing the shafts.
Product Description Main Parameters
Core Inner Dia. 10-76mm
Cutting Type Round Blades synchronization
Cutting Jumbo Tubel Length 40-900mm
Cutting Type Pneumatic
Cutting Thickness 0.5-5mm
Feeding Type Auto unload, manual load
Cutting Speed 25 times/min
Control Type Pneumatic
Cutting Quality 10 sets
Operation Person 1 person
Power 1.5kw
Voltage 3Phase 4Line
Overall Dimension 1900*1050*65mm

Specification
1. JT-800A Multi Blade Paper Core Recutter adopts pneumatic system to control.
2. Easy to operation, convenient and economic.
3. High speed and high precision.
4. It is used for cutting different size paper cores.
5. Especially for cutting different size paper cores.
6. Adopt automatic unloading system, reduce working intensity.
7. It adopts two motors, one is for the main shaft running, the other one is for the cutter running.
Packaging & Shipping Packaging: Foresight Technology Paper Tube Cutting Machine Paper Tube Recutter is with flexible wrapping and wooden case.With the machine, we will supply one year guarantee, whole life technical support, a set of tools, a box of vulnerable parts, English Manu, Inverter Manu and Electrical Schematic Diagram.Delivery Time: Within 30 days after received 30% deposit receipt by T/T. Foresight Technology Paper Tube Cutting Machine Paper Tube Recutter
Relate Machines
Company Profile Jota Machinery Industrial (Kunshan)Co.,Ltd is a long established engineering company combined with science, research, development, production and management. It 's specializing in plastic & paper packaging machinery with more than 20 years experiences in China.
We supply all kinds of packaging machines to satisfy the stringent requirements for Health and Safety, and meet the latest European CE Standards. We provide customers with professional pre and after sales services, and to guarantee complete satisfaction of the equipments installed all over the world.
By Superior quality to create brand, perfect service to make satisfactory. We warmly welcome the friends from home and abroad to work with us to win a mutual benefit future.

FAQ 1, Are you trading company or manufacturer?
We are Foresight Technology Paper Tube Cutting Machine Paper Tube Recutter manufacturer, and also provide the business solution to all the friends.
2, Do you have quality certificate?
Yes we have CE, SGS etc.
3,What's the Foresight Technology Paper Tube Cutting Machine Paper Tube Recutter delivery time?
Around 20~30days, however, based on order.
4, Can you help us to buy other goods?
Sure of that, it is our honor to work for you, and control the goods quality.
