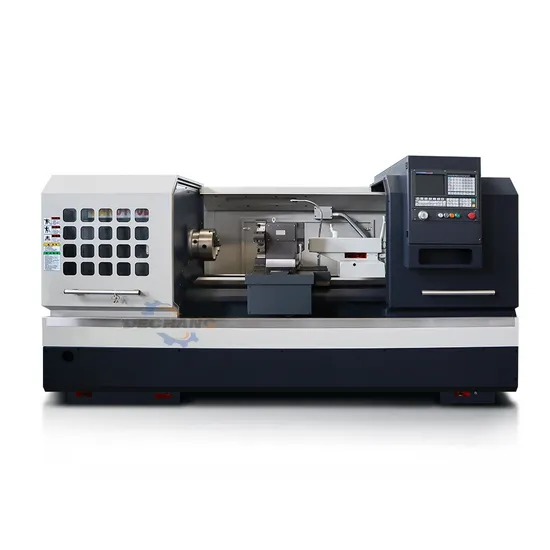

Large CNC Metal Lathe Cak6161 High Speed Flat Bed Horizontal Cheap CNC Lathe

Large CNC Metal Lathe Cak6161 High Speed Flat Bed Horizontal Cheap CNC Lathe

US$11,000.00-20,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
CAK6161
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Product Name
Large CNC Metal Lathe Cak6161 High Speed Flat Bed
Transport Package
Plywood Case
Trademark
DECHANG
Origin
China
HS Code
8458190000

Packaging & Delivery

Package Size
250.00cm * 170.00cm * 190.00cm
Package Gross Weight
2650.000kg

Product Description

Large CNC Metal Lathe CAK6161 High Speed Flat Bed Horizontal Cheap CNC Lathe
Product Description
Standard configuration
Guideway width 400mm
Manual 3 steps speed
3 jaw manual chuck
52mm spindle hole
Electric 4 station electric tool post
Manual tailstock
GSK system
Optional configuration:
80mm spindle hole
Hydraulic chuck
6/8 station Electric turret
Hydraulic tailstock
Independent spindle
Auto chip conveyor
Siemens/Fanuc system
SPECIFICATIONS
SPECIFICATIONS Units CAK6161 CAK6161B CAK6161C
Swing over bed mm 610
Swing over cross slide mm 350
Distance between centers mm 750/1000/1500/2000/3000
Spindle bore mm 52,(80 for B),[105 for C]
Spindle bore taper - MT6,(φ90 1:20 for B),[φ113 1:20 for C]
Spindle nose type - C6,(D8 for B),[D8 for C]
Spindle speed steps - Manual 3 steps (Optional: stepless)
Spindle speed range rpm 21-150,66-500,162-1500
(Optional: 100-1600 )
Turret/tool post - Electric 4 position
Tool size mm 25 x 25
X axis travel mm 310
Z axis travel mm 750/1000/1500/2000/3000
X axis rapid traverse mm/min 6000
Z axis rapid traverse mm/min 10000
Tailstock quill diameter mm 75
Tailstock quill taper - MT5
Tailstock quill travel mm 150
Main spindle motor kw 7.5
Coolant pump motor kw 0.125
Weight for 750 kg 2550
Weight for 1000 kg 2650
Weight for 1500 kg 2750
Weight for 2000 kg 3250
Weight for 3000 kg 4050
Dimension for 750 mm 2550x1700x1800
Dimension for 1000 mm 2750x1700x1800
Dimension for 1500 mm 3250x1700x1800
Dimension for 2000 mm 3700x1700x1800
Dimension for 3000 mm 4710x1700x1800

Detailed Photos


Company Profile
What We Do?
Our main products are :
CNC Lathe Machine, CNC machining center, CNC Milling Machine, CNC Turning Center, Lathe machine, Milling machines,,Drilling machine, Sawing machine, Grinding machine and other metal-working machines and accessories.
Our Machines Application Fields:
1.Aviation industry: 5-axis machining centers, horizontal and gantry machining centers, precision CNC lathes, etc. can be used to process parts such as aircraft wings, fuselages, empennages and engines
2.Railway locomotive manufacturing industry: CNC lathes, vertical and horizontal machining centers, and five-axis machining centers can process high-speed rail locomotive bodies, axles, wheels and other parts
3.Mold manufacturing: high-speed CNC milling machine, high-precision CNC machining center, precision grinding machine can process automotive panel molds, die-casting molds, forming extrusion molds, etc.
4.Power equipment manufacturing industry: For power generation equipment, heavy CNC gantry milling machines, large floor milling machines, large CNC lathes,
In addition, our machine tool products can also be used in weapon manufacturing, electronic information equipment manufacturing, metallurgical equipment manufacturing.

WHY CHOOSE US?
QUALITY COMMITMENT
Company is committed to bring efficient, high precision and stability to all users by insisting on providing our customers with high quality machines.Company machines passed ISO, CE Certificates.
SERVICE SUPPORT
The warranty period is general 13 months after B/L date. During the warranty period, if the parts are damaged because of itself quality problems,except human factors and improper operation, we will provide free replacement parts. Meanwhile, the machine should be under normal operation according to Operation Manual.
Company also provide provide online technical support, voice and video guidance.
Our Facotry
MANUFACTURER CAPABILITY
The company has purchased high-precision and high-efficiency advanced equipment from well-known domestic and foreign brands, and the company's machining and production technology level has been continuously improved, resulting in a continuous increase in production capacity. Company provide first-class machines to to meet the needs of domestic and foreign customers.
R&D CENTER
Company collected first-rate professionals in domestic machine tool trade and established long-term technical cooperative relations with other famous machine manufactures. Meanwhile, companmy pays more attention to introducing advanced foreign technology, and makes great efforts to achieve technical renovation and develop market oriented highly sophisticated products.
Company provide comprehensive cnc machines and manual machines to global customers.
Whether you are an end user, a dealer, or a machining factory, you can send your technical requirements, specifications, drawings, and we will provide the most and we will provide the most suitable machine or a comprehensive processing line solution.

After Sales Service
SERVICE SUPPORT
From the moment you become part of the DECHANG, we are fully dedicated to guiding you, answering your questions and supporting your business. You can rest assured that with DECHANG, you always have a trusted partner to guide you every step of the way. See how our Technical Support services can answer your questions and help you solve your most pressing issues.

1.Warranty

The warranty period is general 13 months after B/L date. During the warranty period, if the parts are damaged because of itself quality problems,except human factors and improper operation, we will provide free replacement parts. Meanwhile, the machine should be under normal operation according to Operation Manual.
2.Quick Response

Our top-notch, expert technical support specialists are there for you seven days a week, 24 hours a day, so you can always count on us to provide help when you need it most.
3.Online Technical Support

On the Whatsapp or Wechat, our technician and sales will deliver solution by taking video and words instructions.
4.Overseas Commissioning and Installation
This is a paid service. If an engineer is required for overseas installation and debugging, please contact the salesperson to obtain the cost

FAQ
1: Where is your company A: Our company is located in Tengzhou City, Shandong Province.2: What about your warranty?A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free3: How do you offer after-sale service?A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems4. What is your standard package? A: Our package is export standard plywood case with pallet.5: What's the Payment Terms? A: T/T, 30% initial payment when order, 70% balance payment before shipment; 6: What's the MOQ? A: 1 set.
