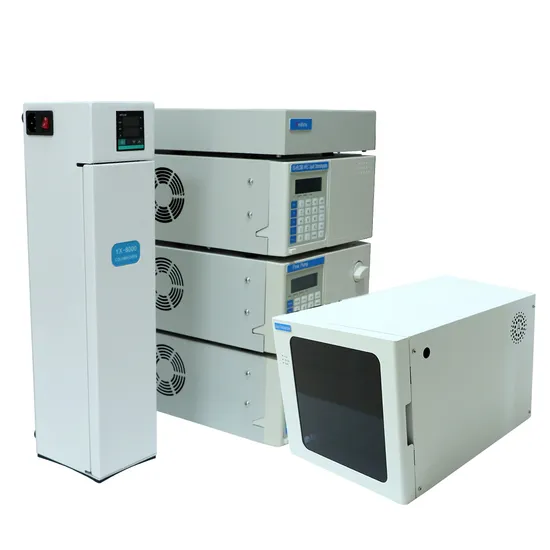

Factory Price HPLC High Performance Liquid Chromatography with Isocratic And Gradient System

Factory Price HPLC High Performance Liquid Chromatography with Isocratic And Gradient System

US$13,500.00
1 Set
US$12,500.00
2-4 Sets
US$10,880.00
5+ Sets

Basic Info.

Model NO.
VS-HPLC980: Liquid Chromatography
Appliance
Analysis furans
Ray Type
UV Vis
Gaspath System
Liquid flow system
Detector
UV Detector
Energy Resolution
≤7%
Spectrometer Detector
UV Detector
Stationary Phase
Liquid Solvent
Mobile Phase
Liquid
Chromatography Type
Liquid Chromatography
Chromatographic Column Type
C18
Chromatographic Column Length
10~30cm
Chromatographic Column Diameter
0.2~0.5mm
Transport Package
Polywooden Case
Specification
60*50*70cm similar
Trademark
WESHINE
Origin
Hebei, China
HS Code
9027201200
Production Capacity
20sets Per Month

Product Description

Product DescriptionChromatography is used to separate proteins, nucleic acids, or small molecules in complex mixtures. Liquid chromatography (LC) separates molecules in a liquid mobile phase using a solid stationary phase. Weshine invented that VS-HPLC Liquid chromatography can be used for analytical or preparative applications. Product Name: HPLC Liquid Chromatography
Standard: DL/T 1355-2014
Liquid flow control:High Pressure Constant Flow Infusion Pump
Detector:UV-Vis Variable Wavelength Detector
Sampler:Liquid Control Autosampler 200samples
One Column:C18 4.6*250mm, 5um
Flow Setting Range:0.001~9.999ml/min
Flow Stability:Less 0.2% RSD
Maximum Infusion Pressure:0~9999Psi
Flow Infution Pump:One/Two-Sets High Pressure
Constant Flow Infution Pump
ModelVS-HPLCI980VS-HPLCG980VS-HPLCQL980
PumpTypeIsocratic PumpGradient PumpQuarternary Low Pressure Pump
Flow Rate Range0.001-10.000mL/min, in 0.001mL increments
Flow Accuracy≤±0.2% (1.00ml/min, H2O,R.T.,8.5MPa)
Flow PrecisionRSD≤0.06% (1.00ml/min, H2O,R.T.,8.5MPa)
Maximum Pressure63MPa
Pressure accuracy≤±3.0%
Pressure pulsation≤0.1MPa
Composition rang/0-100%0-100%
Composition precision/≤0.2%RSD≤0.3%RSD

UV/VIS
Detector
Wavelength Range190-800nm
Wavelength Repeatability≤0.1nm
Wavelength Accuracy≤±1.0nm
Band Width6nm
Response Time0.0s-5s
Baseline Noise≤±0.25×10-5AU(empty cell, 254nm, 1.0s)
Drift≤0.5×10-4AU/h(empty cell, 254nm, 60min)
Path length10 mm(analytical cell)
Light SourceDeuterium Lamp and Tungsten Lamp
Data-processing WorkstationSequence tables for any set of samples Internal and external standard calculation methods
Automatically displays, prints, exports and starts other programs after the completion of a measurement.
System ManagerIntegrated A/D convertersIntegrated A/D converters
Integrated vacuum degasser, 4 channel
Power SupplyAC110/220V±10%, 50/60Hz
Optional AccessoryColumn Oven, Autosampler, Degasser, Diode Array Detector, Refractive Index Detector, Evaporative Light Scattering Detector,
Fluorescence Detector
FEATURES1. High pressure constant flow pump with parallel pump heads and optimized 5mm stroke of plunger rod ensuring perfect pump performance
2.The higher level of integration with binary or quaternary pumps integrated into one set of module
3.Specially designed column oven for GPC, which represents greater capacity of three columns, max ID10×250mm
4.Adoption of advanced UDP communication protocol that is fast, stable and can be used for instrument remote control
5.The HPLC system being more integrated and intelligent
