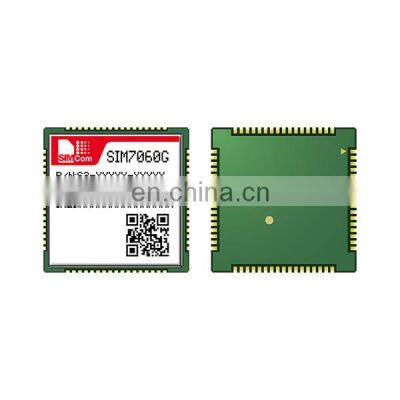

SIMCOM SIM7060G GNSS NBIoT Module, Multi-Band NB-IoT GNSS Module SIM7060

Product Description

Product Description
DescriptionNB-IoT&GNSS ModuleThe SIM7060G is Multi-Band LTE-FDD NB-IoT and GNSS module solution in a SMT type .It has strong extension capability with rich interfaces including UART, GPIO,SPI,I2C etc. The module provides much flexibility and ease of integration for customer's application.It is designed for applications that need low latency, Low throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, the SIM7060G module is ideally suited for M2M applications, such as metering, asset tracking, remote monitoring , E-health etc..Product Advantages• With Power Save Mode(PSM) and Extended Discontinuous Reception(eDRX), SIM7060G can extend battery life to 10 years.• SIM7060G provides deeper coverage enhancement compared to GSM.• GNSS support:GPS&Beidou&GLONASS• The package of SIM7060G is compatible with SIM7000x.General FeaturesDataSuppot Bands:B1/B2/B3/B4/B5/B8/B12/B13/B17/B18/B19/B20/B25/B26/B28/B66/B70/B71Control Via AT CommandsSupply voltage range: NB-IoT 2.1V-3.6VGNSS 2.8V-4.5VOperation temperature: -40℃to +85℃Dimensions: 24 X 24X 2.4mmWeight: 3.2gUplink: 150Kbps Downlink:126KbpsGNSSOther FeaturesGPS&Beidou&GLONASSTCP/UDPHTTP/HTTPS/TLS/DTLS/DNS/NTP/PINGLWM2M/COAP/MQTTAyla Cloud*Firmware update via UARTFOTAEAT*InterfacesConsumptionUARTSIM cardSPII2CGPIOADCPSM: 3.4 uAsleep: 0.4mAIdle: 5.6mAeDRX: 30uA （eDRX=655.36s）Certifications(plan)CE / FCCRoHS / REACHWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC
