Marine Use Yokohama Type Fender Producing According to ISO17357 Standard

Product Description

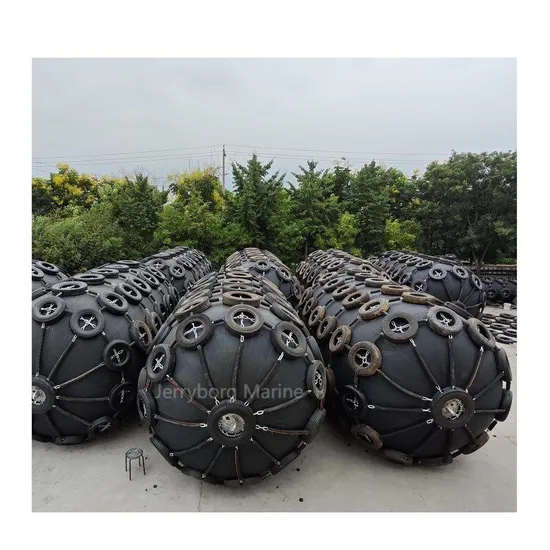

Products Description Sling type fenders are used worldwide in Ship-to-Ship (STS) transfer operations, docks and various vessels.
Used in ship-to-ship and ship-to-dock operations, fenders play a vital role in the safe operation of ship berthing and mooring.
1. ISO 17357-1:2014 certified
2. Guaranteed energy absorption
3. Low hull pressures
4. Chain tyre net and Sling type
5. Thick skin construction
6. Good angular performance Jerryborg Pneumatic Rubber Fenders are constructed of several layers of strong tire-cord, and are thus resistant to pressure and cutting. The safety factor adopted in the design of this fender is based on accepted theory and has been proven by extensive experimentation. Operational experience over a long period of time attests to its high safety and reliability, and hydraulic pressure tests have proven the strength to be suitable. Furthermore, large-size fenders are equipped with a safety valve to release the inside air in the event of accidental over-pressure. The figure below shows data obtained from many destructive pressure tests at various percentage compressions. Such data are used to establish a basic minimum endurable pressure (MEP) curve for pneumatic rubber fenders.
Advantages at Inclined Berthing
Ships usually make initial contact with the dock or another ship on STS operations at an oblique angle. In the case of solid rubber fenders or foam fenders, rated reaction force and energy absorption decreases considerably at inclined compressions compared with parallel compression. In order to compensate for the decrease of energy absorption at inclined compression, it is necessary to use larger sizes in the case of solid rubber fenders or foam fenders. Distribution of load is also comparatively even because of the molecular freedom of air and high flexibility of the multi-layered cord-reinforced rubber membrane. This makes the body of a pneumatic rubber fender more shape conformant compared to solid or foam fenders, and thus able to better distribute the load along the hull of a ship or jetty structure during inclined compression.Adaptable to the TideJerryborg Pneumatic Rubber Fenders basically float on the water in an unrestricted vertical plane corresponding to the tidal range and ship's vertical movement. This means that energy absorption always takes place at the most suitable position, and that only one fender is required per dolphin.
Installation Dimensions

Size	A	B	C	D	E	F
φ1000 * 1500L	975	950	1350	200	375	2000
φ1200 * 2000L	1200	1140	1620	220	430	2600
φ1500 * 2500L	1525	1420	2050	250	525	3250
φ2000 * 3500L	2050	1900	2700	300	650	4500
φ2500 * 4000L	2490	2380	3380	450	890	5200
φ3300 * 6500L	3380	3140	4460	500	1080	8500
φ4500 * 9000L	4710	4270	6180	800	1470	12000

Performance Table

Dia. xLength(mm)	Initial internal pressure 50Kpa			Initial internal pressure 80Kpa
	ReactionForce(KN)	EnergyAbsorption(KN.M)	HullAbsorption(Kpa)	ReactionForce(KN)	EnergyAbsorption(KN.M)	Hull Absorption(Kpa)
500 *1000	64	6	132	85	8	174
600 * 1000	74	8	126	98	11	166
700 * 1500	137	17	135	180	24	177
1000 * 1500	182	32	122	239	45	160
1000 * 2000	257	45	132	338	63	174
1200 * 2000	297	63	126	390	88	166
1350 * 2500	427	102	130	561	142	170
1500 * 3000	579	153	132	761	214	174
1700 * 3000	639	191	128	840	267	168
2000 * 3500	875	308	128	1150	430	168
2500 * 4000	1381	663	137	1815	925	180
2500 * 5500	2019	943	148	2653	1317	195
3300 * 4500	1884	1175	130	2476	1640	171
3300 * 6500	3015	1814	146	3961	2532	191
3300 * 10600	5257	3067	158	6907	4281	208
4500 * 9000	5747	4752	146	7551	6633	192
4500 * 12000	7984	6473	154	10490	9037	202
