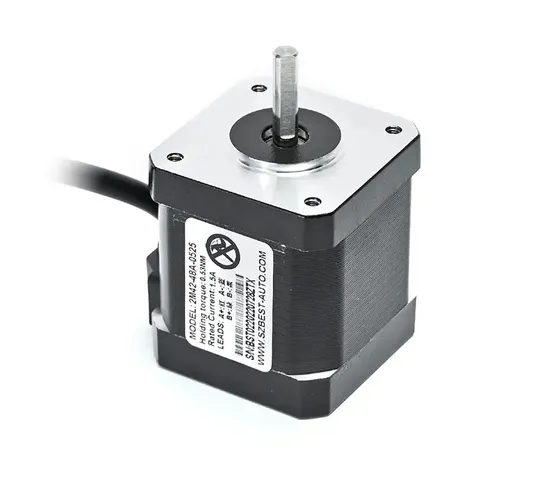

High Quality 2 3 Phase Stepper Driver Customized NEMA 8 11 14 17 23 24 34 42 52 CNC Hybrid Stepper Motor Micro Stepper Motor

High Quality 2 3 Phase Stepper Driver Customized NEMA 8 11 14 17 23 24 34 42 52 CNC Hybrid Stepper Motor Micro Stepper Motor

US$15.00
50-99 Sets
US$12.00
100+ Sets

Basic Info.

Model NO.
2M42-40A-2050
Number of Stator
Can Be Customized
Excitation Mode
HB-Hybrid
Function
Control, Driving
Number of Poles
8
Operate Mode
The Three Single Phase
Type
Magnetic-Electric
Certification
ISO9001, CCC
Brand
Can Be Customized
Voltage
12V-24V
Rated Current
1A-1.7A
Torque
0.13-3.8nm
Resistance(Ω)
0.5-3.6
Resistance Accuracy
±10%
Inductance Accuracy
±20%
Rotational Inertia(G.Cm2)
1600-4800
Temperature Rise
Under 80K
Insulation Class
Class B 130°
Warranty
1 Years
Transport Package
Export Carton
Specification
Customize according to the product
Trademark
BBA
Origin
Dongguan, China
HS Code
8501109990
Production Capacity
200sets/Month

Packaging & Delivery

Package Size
30.00cm * 60.00cm * 55.00cm
Package Gross Weight
3.000kg

Product Description

High quality 2 3 phase stepper driver customized NEMA 8 11 14 17 23 24 34 42 52 cnc hybrid stepper motor micro stepper motor A stepper motor is a type of electric motor that divides a full rotation into a series of discrete steps, offering precise control over its position, speed, and acceleration. Product Description

Specification
Stepper Motor Features: 1. Discrete Steps, High Precision
Stepper motors move in fixed increments or steps, which allows precise positioning without the need for feedback systems (in open-loop configurations). Each step typically corresponds to a fixed angle, such as 1.8° (for 200 steps per revolution) or 0.9° (for 400 steps per revolution), ensuring accurate control.
2. Open-Loop Control
Most stepper motors operate without the need for feedback (like encoders), making them simpler and more cost-effective than servo motors.
3. Holding Torque
Stepper motors can hold their position firmly when stopped, providing high holding torque without active movement. This is beneficial in applications requiring stationary holding positions.
4. No Need for Position Feedback
Since the motor moves in discrete steps, the position can be inferred based on the number of steps moved, avoiding the need for continuous feedback sensors.
5. Low Speed, High Torque
Stepper motors provide good torque at low speeds, which makes them ideal for applications that require precision at slow
speeds, such as CNC machines or 3D printers.
6. Bidirectional Control
Stepper motors can rotate in both directions by adjusting the current flow in the windings, allowing for easy reversal of motion.
7. Simple Control, Durability and Reliability
The control of a stepper motor is straightforward, with step signals generated by external controllers or drivers. This can be done using a micro controller like an Arduino or Raspberry Pi. Stepper motors have fewer wear-and-tear components compared to brushed DC motors since they don't have brushes or commutators, making them highly reliable for long-term usage. Customer case
