Fiber Laser Pipe Cutter Metal Tube CNC Laser Cutting Machine Stainless Steel Carbon Steel
Basic Info.
Application
Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Shoemaking Industry, Woodwork Industry, Advertising Industry
Cooling System
Water Cooling
Technical Class
Continuous Wave Laser
Applicable Material
Metal
Structure Type
Desktop
Laser Classification
Solid Laser
Product Name
CNC Fiber Laser Metal Cutting Machine
Function
Cutting Metal Materials
Cutting Materials
Stainless Steel Carbon Steel
Laser Power
1500W/ 2000W / 3000W
Laser Head
Auto Focus Laser Head
Voltage
3 Phases 380V 50-60 Hz
Working Area
6000mm
Working Table
Sawteeth Working Table
Laser Source
Ipg Raycus Max
Repeatability Accuracy
0.03mm
Accuracy of Positioning
0.02mm
Color
Customizad
Certification
CE/ISO Certificate
Transport Package
Fumigation-Free Plywood Wooden Box
Specification
6000mm
Trademark
FAST
Origin
China
Production Capacity
50 Sets/Month
Packaging & Delivery
Package Size
700.00cm * 150.00cm * 200.00cm
Package Gross Weight
3000.000kg
Product Description

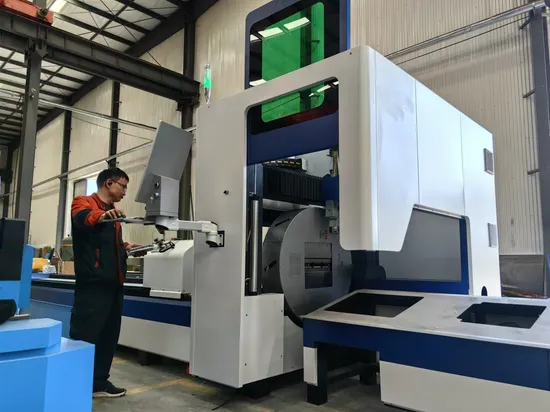

Automatic Chuck Metal Pipe Laser Cutting MachineMachine Features:
1.High performance laser equipment, stable operating system, so that the cutting effect to achieve the best. 2. Perfect cooling, lubrication, dust removal system to ensure stable, efficient and durable machine operation.
3. Three chuck laser tube cutting machine, can real 0 tail save your materials cost.
4. Full Automatic pneumatic chuck support 20-240mm diameter round tube, and 20-240mm diameter square tube. Gear transmission system, long service life. No damage for raw tube materials.
5. Automatic height adjustment performance, keep the focal length constant, excellent and stable cutting effect.
| Model | FAST-6000 | FAST-12000 |
| Cutting Length | 6000mm | 12000mm |
| Repeat Repositioning Accuracy | ±0.03mm | |
| Accuracy of Positioning | ±0.02mm | |
| Cutting Speed | 145m/min | |
| Laser Power | 1500W/2000W/3000W/6000W | |
| Laser Source | MAX/Raycus/IPG | |
| Maximum acceleration | 2G | |
| Upgrade | Three Chuck/Full Cover | |
Fiber Laser Cutting Machine Description:
1. Laser power: 1000W, 1500W, 2000W, 3000W, 4000W, 6000w, 10000w, 12000w, etc.
2. Laser generator: RAYCUS, MAX, RECI, IPG etc. 3. Cutting materials: Iron, aluminum, carbon steel, stainless steel, copper, hardware and another metal sheet materials.
4. Other machine optional parts can be chosen, such as, rotary axis, exchange working table, full cover, etc.
5. China fiber laser machine cutting manufactuers, low cost and best quality, with CE, ISO etc certificates.
