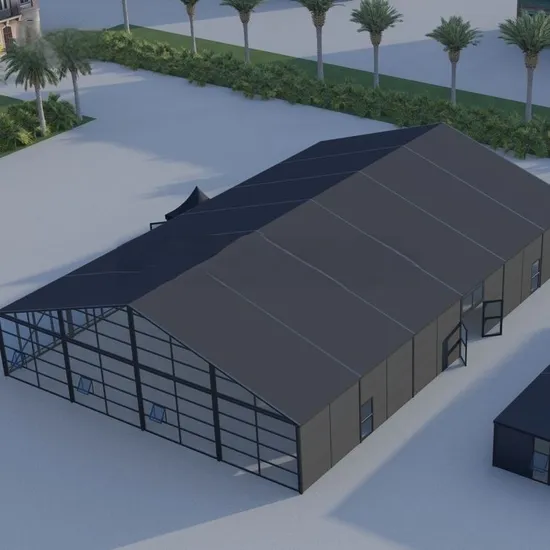

Large Party Black Pole Frame Clear Span Tents Aluminium Banquet Tent Portable Commercial Weeding Tents
| US$30.00-50.00 | 100 Square Meters (MOQ) |
Basic Info.
Model NO.
DZTW002
Material
PVC
Usage
Party, Camping Tent, Traditional, Relief
Style
Customized
Pole Material
Flexible Poles,aluminium Alloys
Structure
Single Skin
Color
Can Customzied
Season
Any
Waterproof
Waterproof
Customized
Customized
Product Name
Wedding Tent
Size
20*30 or Can Be Customized
Frame Material
Hard Pressed Extruded Alu-Minum Alloy T6061/T6
Tent Roof Fabric
850g/Sqm PVC Coated Polyester Fabric
Side Wall
PVC Walls,Glass Wall,ABS Wall,Sandwich Panel Wall,
Eave Connection
Hot-DIP Galvanized Twin Plate;Expansion Bolts
Surface Treat Method
Hot DIP Galvanized
Application
Exhibition/Party/Event/ Show/Wedding/Warehouse
Features
Water Proof, UV Resistance, Fire Retardant
Wind Resistance
80-140km/H
Temperature Resistance
-30 Degree Celsius ~ +70 Degree Celsius
Ground Situation
Grassland,Earth Land,Asphalt Ground,Cement Ground
Fire Resistance
DIN4102 B1/M2 ( Europe Standard )
Certificates
Cfm,TUV,ISO9001:2008
Transport Package
1. Membrane Film 2. Carton 3. PVC Carry Bag
Specification
Can be customized
Trademark
DIANZI
Origin
China
HS Code
6306220010
Production Capacity
80000 Square Meters/ Month
Product Description
| Our Tents | |
| Size | Width: Can be 3m to 60mLength: Not limited; Can be extended by 3m or 5m, such as 15m, 20m, 30m, 40m, 50m... |
| Frame | 4 channels, hard pressed extruded aluminium alloy 6061/T6. (Surface anodized finish. Anti rust.) |
| Roof Cover | Opaque(or transparent), water proof, 850g/m². Flame retardant.PVC-coated comply to DIN 4102 B1( European standard ) |
| Side Wall | 1)650g/m² PVC-coated Polyester 2)glass wall 3) ABS wall comply to DIN 4102 B1( European standard ) |
| Wind Resistance | 80~140km/h |
| Snow Load | 25kg/sqm |
| Fixing Solution | Ground anchor, expandable bolt, weight plate, etc. |
| Applicable temperature range | -30 degree Celsius ~ +70 degree Celsius |
| Connectors | Hot-dip galvanized twin plate;expansion bolts to fix tent |
| Ground Situation | Grassland,earth land,asphalt,cement ground,marble,etc |
| Application | Exhibition/party/event/trade show/wedding/warehouse |
| A STRUCTURE TENT | |||
| WIDTH(meter) | EAVE HEIGHT(meter) | RIDGE HEIGHT(meter) | MAIN PROFILE(meter) |
| 3 | 2.79 | 3.21 | 100×48×3mm |
| 6 | 2.79 | 3.86 | 100×48×3mm |
| 9 | 2.6 | 4.28 | 120x48x3x5.5mm |
| 12 | 2.6 | 4.82 | 120x48x3x5.5mm |
| 15 | 2.6 | 5.37 | 120x48x3x5.5mm |
| 40' | 10' | 16.55' | 166*88*3mm |
| 50' | 10' | 18.18' | 166*88*3mm |
| 60' | 10' | 19.82' | 166*88*3mm |
| 10 | 3.5 | 5.15 | 150*120*3*5mm |
| 18 | 4 | 6.94 | 200×120×4×4.5mm |
| 20 | 4 | 7.27 | 200×120×4×4.5mm |
| 25 | 4 | 8.12 | 250×120×4×6mm |
| 30 | 4 | 8.93 | 250×120×4×6mm |
| 30 | 4 | 9.05 | 300×120×5×7mm |
| 40 | 6 | 12.57 | 350×120×5×7mm |
| 50 | 6 | 14.18 | 350×120×5×7mm |
| 60 | 6 | 15.85 | 420×120×6×8mm |
| 70 | 6 | 17.5 | 500×120×6×8mm |
| 80 | 6 | 19.12 | 500×120×6×8mm |
| 3m to 80m span width available to be customized | |||
