Double Sphere Flexible High Pressure Rubber Expansion Bellow Joint with Steel Iron Forged Connector Water Application Head

Product Description

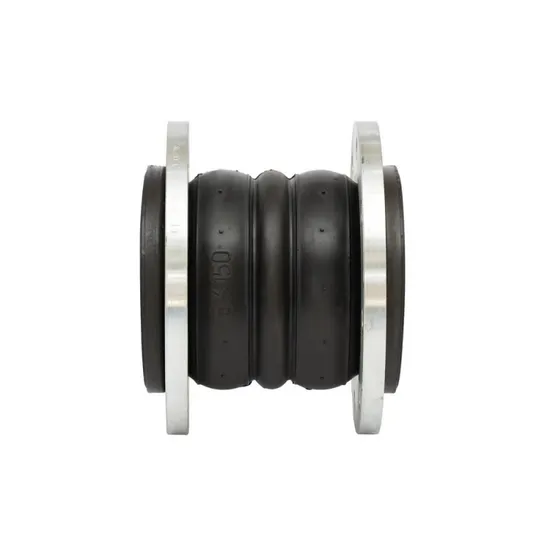

Product DescriptionNHFLEX-B TYPE Flanged Double Sphere Flexible Rubber Expansion Joints Pipe Connector Rubber Compensator
The Double Sphere Rubber Joint is a versatile and reliable component that serves as a vital link in various piping systems. Its primary function is to absorb movement, reduce vibration, and compensate for misalignment in pipelines, ensuring seamless operation and enhanced longevity of the entire system. This exceptional product is meticulously constructed using high-quality rubber materials, guaranteeing exceptional resistance to corrosion, chemicals, and extreme temperatures.
With its double sphere design, this rubber bellows offers unparalleled flexibility and elasticity, allowing it to accommodate axial, lateral, and angular movements with utmost ease. The dual-sphere configuration ensures optimal stress distribution, minimizing the risk of fatigue and premature failure. Furthermore, the unique design of the Double Sphere Rubber Joint effectively dampens vibrations, reducing noise levels and enhancing the overall efficiency of the system.
Our commitment to excellence is reflected in the rigorous testing and quality control measures that each Double Sphere Rubber Joint undergoes. We adhere to the highest industry standards, ensuring that our product meets and exceeds customer expectations. Additionally, our team of experienced professionals continuously strives to innovate and improve our offerings, guaranteeing that you receive a product that is at the forefront of technological advancements.
Characteristics:
1. Corrosion Resistance: Rubber expansion joints are made from high-quality rubber materials that exhibit excellent resistance to corrosion. They can be used with various media such as water, oil, and gases.
2. Elastic Deformation: Rubber expansion joints can absorb stresses and vibrations caused by temperature changes, vibrations, or pipe movements in pipeline systems through their elastic deformation. This helps protect the pipeline system from damage.
3. Shock Absorption and Noise Reduction: Rubber expansion joints effectively reduce the transmission of vibrations and noise in pipeline systems, providing a quieter and more stable working environment.
4. Easy Installation and Maintenance: Rubber expansion joints have a simple structure, making them easy to install and maintain. They also have low maintenance costs.Product ParametersStandard Specification:

Max.Working Pressure				2.5Mpa
Operating Temperature				-20ºC-100ºC
Vacuum KPa (mmHg)				44.9(350)
Applicable Media				Sea Water, Drinking Water, etc.
Flange Standard				DIN, JIS, GOST, ANSI, etc.

Component Parts:

Item	Part	Material
1	Body Outer Layer	NR, EPDM, NBR, FKM
2	Body lnner Layer	NR, EPDM, NBR, FKM
3	Reinforced Fabric	Nylon
4	Wire	Steel
5	Flange	Zinc Plated/Sprayed CS, SS304, SS316, Cast Steel

NHFLEX-B TYPE Rubber Joint Size Chart:

SIZE	LENGTH				Movemont Capablllty
DN	F/F				Comp.	Ext.		Lateral	Angular
(mm)	(mm)				(mm)	(mm)		(mm)	(degree)
40	175				10	20		20	30
50	175				10	20		20	30
65	175				10	20		20	30
80	175				10	20		20	30
100	225				15	30		25	30
125	225				15	30		25	30
150	225				15	30		25	30
200	325				20	40		30	30
250	325				20	40		30	30
300	325				20	40		30	30
350	350				20	40		30	30
400	350				20	40		30	30
450	350				25	45		30	30
500	350				25	45		30	30
600	350				25	45		30	30

* Control units must be used when piping is not properly anchored.
The rated pressure can be above 2.5MPa, but products will only be sold with control units.
Pressure rating is based on 30ºC operating temperature. The pressure rating is reduced at higher temperatures.
Rated pressure in the above table is the maximum "working pressure". Test pressure is 1.5 times "working pressure", Burst pressure is 4 times "work pressure".Main Products
→ Click to View More Types of Rubber Joints.ApplicationCompensating for Thermal Expansion and Contraction: Rubber expansion joints compensate for thermal expansion and contraction caused by temperature variations in the pipeline. They prevent excessive stress on the pipeline system due to temperature changes, thereby protecting the pipes from damage.
Absorbing Vibrations and Impacts: Rubber expansion joints absorb stresses caused by vibrations and impacts in the pipeline system, reducing the transmission of vibrations and noise. This helps protect the pipeline and related equipment from damage.
Compensating for Pipe Movements: During installation and operation, pipeline systems may experience certain degrees of pipe movement. Rubber expansion joints compensate for these movements, ensuring the proper functioning of the pipeline system.
Leak Prevention: Rubber expansion joints provide sealing performance in pipeline systems, reducing the risk of leaks and ensuring the safe operation of the pipelines.
Company ProfileNingjin NINGHAO Machinery Co.,Ltd. Founded on No November 19, 2010. It is located in No.2 taishan road, econnmic and technological development zone, ningjin county, dezhou city, shandong province. It covers an area of 120 acres, with more than 80 employees, among has all kinds of advanced production and inspection equipment.
We can offer all kinds of rubber expansion joints. Our products include: single ball flexible rubber expansion joint, double sphere rubber expansion joint, rubber-metal pipe connectors, thread-connection rubber expansion joint and tie rods set for rubber expansion joint. Rubber expansion joint main material: EPDM ,NBR ,NR, FR. The standard of the flange: ANSI150, DIN, JIS10K. The flange material: carbon steel, stainless steel, casting steel.
We have been in exporting for many years. We have wide business relations in the world. Now the main supply countries: Spain, Italy, Netherlands, Austria, French, Vietnam, India and many other countries. Our customers and clients all think highly of us.
Last, looks forward to the cooperation with you sincerely!
