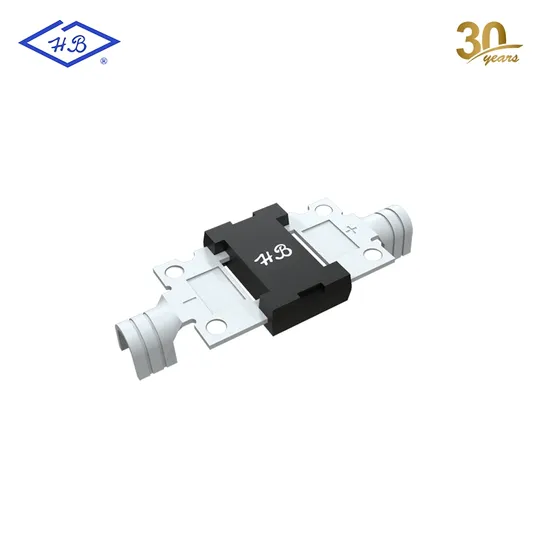

40MT045 PV Photovoltaic Schottky Bypass Solar Diode

40MT045 PV Photovoltaic Schottky Bypass Solar Diode

US$0.15-0.38 5,000 Pieces (MOQ)

Basic Info.

Model NO.
40MT045
Certification
RoHS, UL
Structure
Module
Material
Silicon / Copper / Epoxy
Technique
Trench
Production Type
Automation
Storage Temperature
-55 to 150 ºC
Case
Molded Plastic
Transport Package
Plastic Tube / Carton Box
Specification
MT09E
Trademark
HB
Origin
China
HS Code
854110
Production Capacity
30000000

Product Description

Product Parameters 40MT045
Type Maximum Maximum Average Maximum Maximum Maximum Package Dimensions
Peak Rectified Current Forward Peak Reverse Forward
Reverse @Half-Wave Surge Current Current Voltage
Voltage Resistive Load 60Hz @8.3ms Superimposed @PRV @25ºCTA @25ºCTA
PRV Io @TA IFM(Surge) IR IFM VFM
VPK AAV ºC APK mAdc APK VPK
40MT045 45 40.0 25 400 0.1 40.0 0.55 MT09E
Product Description FEATURES
Metal of silicon rectifier, majority carrier conduction
Guard ring for transient protection
Low power loss, high efficiency
High current capability, low IR
High surge capacity
High temperature reverse characteristic is excellent
For use in photovoltaic solar cell protection
Company Profile
FAQ Does Hornby Electronic offer customized product base on client's special requirements?
Yes, we can customize products on package, chips, Leads, solders. We have our independent R&D team and tactory to proceed special requirements. Pleace contact our sales for more details.
I can't find the part number that I am looking for. Is that means Hornby Electronic doesn't produce or have this parts?
We only put the most popular products on this platform. We provide many other products that you may interested in. Please contact our sales or managers for the diodes that you demand but are not found on the platform page.
I purchased HB products from other companies before. Are they authentic HB product?
We recommend you to purchase authentic HB Products from us or our authorized distributors. HB products from unauthorized sellers may have quality risks. You can check our partner page for authorized distributor list or ask our sales directly.
