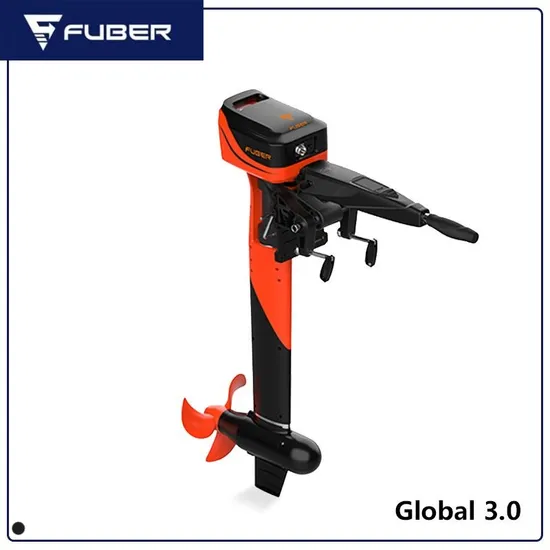

Global 3.0 3kw High Efficiency Driving Electric Outboard for Boat Motor with Ukcr CCS CE FCC Zc

Product Description

Product Parameters

	Global 3.0 outboard	Global 3.0 outboard with tiller	Global 3.0 pod
Energy type	Electric 100%
Rated voltage/current	72v/41a
Input voltage range	64v / 78vdc
Maxinput power	3 kw forward / 3 kw reverse
Equivalent fuel outboard	7hp
Maximum eficiency of the whole machine	56%
Ful load speed(forward)	1400rpm
Control	Tiler/control box	Tiler	Control box
Communication	Cable
LengthxWidthxHeight	515x 345 x 1208	963x345x1208	379x 300x595
Axis length	625mm	625mm	298mm
Net weigt	31kg	31kg	23kg
Angle of lifting	0°,15°,30°,45°,60°
Max lifting angle	60°		/
Propeller diameter	290mm
Working environment/storage temperature	-25°C~ 50ºC (-13°F~122°F)

Our Advantages
1. Multiple Protections for Built-in Drivers to Facilitate High Efficiency and Durability of Thrusters
We have installed power isolation, overcurrent protection and overheat protection for the built-in drivers. A ramp linear processing is performed on the control signal. These two upgrades allow the thruster to switch directions frequently and quickly. And voltage fluctuations +-15% will not cause any harm to the thruster. Makes the thruster has long-life.
2. Water-lubricated Alloy Bearings Empower Thrusters with Excellent Wear Resistance and Quality
We use alloy bearings with water lubricating effect, which are very advantageous in terms of wear resistance and quality.
3. Empowered by Magnetically Coupled Drive Technology, Thrusters Achieve Contactless and Anti-overload Torque Transmission
Our thruster adopt magnetically coupled drive technology, is the one that magnet array fitted inside the propeller hub is driven by the one attached inside the housing of the thruster, so as to realize non-contact and leak-free transmission of torque. magnetically coupling structure will produce ratchet effect in case of overload, to prevent the damages caused by objects jammed into the propeller.
4. Professional Test Pool Simulates Real Marine Scenarios to Ensure Thruster Quality through Rigorous Tests over Thousands of Hours
Not only we have capacity from R&D to produce, but also we have professional test pool, which simulate real marine environment, adding sand and shells, we test them before each model is molded, one-time charging for thrusters, uninterruptible power supply, running at full power for more than 1,000 hours. The total time of fatigue test and other tests reaches 3000 hours.
5. Integrated Molding by Five-axis Machining Center, Stainless Steel Thrusters Cast with Precision
We have a professional five-axis machining center, propeller integrated molding. It is SS material.
Successful Case
Company Profile
Packaging & Shipping
After Sales Service
FAQ Q: Are you a factory?
A: Yes, we hava capacity of R&D, produce, test etc..
Q: Why is it Fuber?
A: Fuber is our special brand for electric outboard.
Q: Can we order one set as sample?
A: Of course. MOQ is one set.
Q: If there is problem when we use the goods, how can we do?
A: First of all, please contact us in time, send videos and pictures for us, so that we can judge the problem and find the reason. We will guide you to debug and repair by video conference or email. If you can't solve it, please send the product to us in time, and we will repair immediately and send it back to you as soon as possible. For other content, please refer to after-sales service.
Q: Do you have overseas agent?
A: Yes, now we have agent in Singapore, Canada, Australia. We'd like to cooperate with powerful and intentional customers.
