US$3,000.00-6,000.00
|
1 set
(MOQ)
|
Basic Info.
Power Density
Deep Fusion Welding
Laser Classification
Optical Fiber Laser
Type
Portable Welding Machine
Cooling Type
Water Cooling
Welding Depth
0.2-1.5mm 0.2-2mm 0.2-3mm
Transport Package
Wooden Case
Production Capacity
5000 Sets/Year
Product Description
1000W 2000W 3000W Max Raycus Fiber Source Handheld Laser Welding Machine Welder Machine

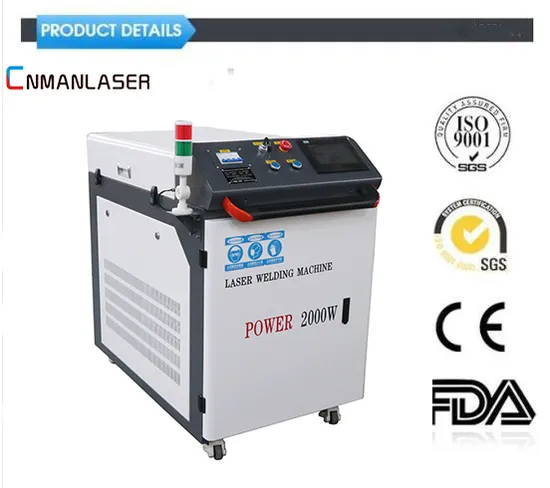

1. Picture for Welding Machines
Operation mode:
Manual welding, with simple fixture, flexible and simple operation
Electricity demand:
220/380VAC, 50/60Hz
Scope of application Cabinet, kitchen, stair, elevator, shelf, door and window guardrail, communication sheet metal shell, fan, stainless steel fixture and other industries have complex and irregular welding procedures. The welding of thin stainless steel plate, iron plate, galvanized plate and other metal materials can perfectly replace the traditional argon arc welding, secondary arc welding, electric welding and other processes.
2. Main Parameters Of Welding Machines
Maximum laser power | 1000W | 1500W | 2000W |
Laser wavelength | 1070±10nm | 1070±10nm | 1070±10nm |
Pulse width | Continuous light output | Continuous light output | Continuous light output |
Number of optical fiber output | 1 line | 1 line | 1 line |
Welding depth | 0.2-1.5mm | 0.2-2mm | 0.2-3mm |
Total power | <6KW | <8KW | <10KW |
Power input | AC220V+10%/3P+PE | AC220V+10%/3P+PE | AC380V+10%/3P+PE |
Host size(mm) | 480W*850D*224H | 600W*1400D*1050H | 600W*1400D*1050H |
Cooling mode | water-cooling | water-cooling | water-cooling |
Optical fiber model | QBH | QBH | QBH |
Fiber diameter | 50um | 50um | 50um |
Fiber length | 10m | 10m | 10m |
3.Detailed Images:
Sample Show: laser welding machine is widely used in high-precision metal parts welding, electronic components welding, picture tube electron gun welding, missile detector welding, mobile phone vibration motor welding, detonator engine welding, car lights and xenon lamp welding, precision optoelectronic parts welding, etc.
