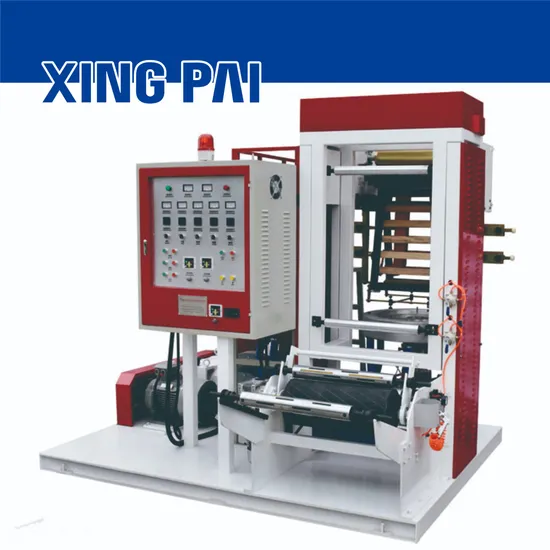

Small Film Blowing Extruder Machine

Small Film Blowing Extruder Machine

US$8,800.00-10,000.00 1 Piece (MOQ)

Basic Info.

Type
PE Film Blowing Machine
Raw Material
PE
Maximum Folding Width of Film
500mm
Screw Diameter
45mm
Automation
Automatic
Machine Weight
2t
Certification
CE, ISO9001:2008
Screw
Bimental 45mm ,Ld:30:1
Die Head
Fixed Die Head .HDPE ,LDPE
Air Ring
Double Lip Air Ring
Rewinder
Seperate Single Rewinder
Embossing Roller
Pneumatics
Optional
One Color Printing Device Online
Gear Box
146 Model with Oil Pump
Heater
Ceramic Heater
Cover
Seperate Cover
Film
HDPE,LDPE,LLDPE,Biodegradable PLA ,Bpat Film
Motor
Siemens Motor
Inverter
LG Inverter
Inverter Numbers
4PCS,for Motor ,Fan ,Traction ,Rewinder
Electrical
Chint
Key Word
Film Extruder ,Film Blowing Machine
Transport Package
Film Package
Specification
100-500mm
Trademark
xingpai
Origin
China
HS Code
8477309000
Production Capacity
10000

Product Description

Product Description
Our advantage of machine
1.Screw is Bimental ,LD30:1 .it can do both normal PE and biodegradable PLA .and the screw life can be 5 year without output damage .some normal screw the output damage after 1-2 year .
2.The die head is from taiwan process center ,polished by hand .the transparent is much better than others.
3.Our double lip air ring with 8 pcs air inlet hose ,instead of 6 pcs .the cooling is better .to promise the high output .
4.The output is 55kg/hr for XP45 model machine .
5.Original design ,such as ceramic heater and seperate cover,which can save power in future .
6.Bigger tower ,you can walk around ,safety


Product Parameters
Specification:
Model XP45/MN500
Screw size Φ45(Bimental)
Screw L/D 30:1
Gear box 146
Film width 100-500mm
Motor power 11kw
Single face Thickness of of film 0.008-0.10mm(let me know if need thicker film )
Blower 2.2kw
Max.output 55kg/hr
Power of Traction main motor 1.5kw
The dimension of machine 4.0m*1.5m*2.3m
weight 2500kg

Detailed Photos

Other product recommendation
Other machine
workshop picture

Group picture with customer

Customer Feedback
Packaging & Shipping

FAQ
1.:Are you factory or trading company ?
we are factory specialized in plastic machine for many years ,all of our engineer with more than 20 years experience .
2. Where is your factory? How can i visit your company?
our factory is located in Ruian city,zhejiang province, China.
Its about 40 minutes from shanghai by plane(4 hours by train).we will pick you up on airport or station .welcome to visit our factory
3 How long is your delivery time?
On normal our delivery time is 30-45 days .if you need it ugently ,we can make your machine first.about 10 days
4.:What's your warranty policy?
18 month guarantee and whole life maintance ,

5:What package do you use for the product?
Be Coated with anti-corrosion oil, and covered with plastic film, wooden box package need extra cost .

6:Does your factory provide installation service?
Our engineer can go to customer factory to installation . buyer should prepare materials used to testing the machine in advance and should be responsible for the cost of supplier's technician, including round air tickets, visa cost, accommodation and salary 100USD/Day per person since the day start out until the day arriving at factory.
7:What are your terms of payment?
We accept T/T, L/C. western union.
8. How could we do if the parts broken within warranty?
A: We would express the free replacement parts during the warranty date.
9: Does your engineer understand English?
A: Our engineer understand a little English. All our engineer have more than five years machine installation experience. In addition, they can use body language to communicate with customer.
