Basic Info.
Machine Bed
Heavy Machine Bed with More Support
Spindle
9kw Atc Air Cooling Spdinle
Spindle Speed
0-24000 Rpm
Worktable
Vacuum Worktable
Motor
750W AC Sever Motor
Reducer
Japan Shimpo Reducer
Inverter
Folinn 11kw Inverter
Control System
Shanlong (English, Spainsh, Russian...)
Machine Voltage
1 Phase /3 Phase
Software
Artcam + Post Processor
Transport Package
LCL/FCL Plywood Package
Production Capacity
300sets/Month
Product Description

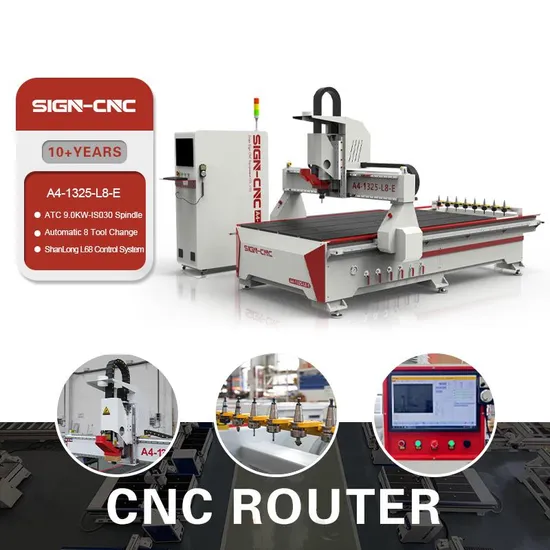

Special Counter SIGN ATC 1325/2030 With 9KW Spindle Wood Cutting Craving Engraving Machine CNC Router For Furniture Factory
Product Description
Machine features:
A4 series Economical ATC CNC Router with AC servo motor and linear automatic 8 tools changer, which can meet the needs of complex 3D process processing. Basic configuration, affordable price, high cost-effectiveness.
CNC router can be used to produce items such as door carvings, interior and exterior decorations, wood panels, sign boards, wooden frames, moldings, musical instruments, furniture.
Product Parameters
Model | A4-1325 / 1530 / 2030 /2040 -E |
X, Y Working Size | 1300*2500mm / 1500*3000mm / 2000*3000mm /2000*4000mm |
Z-axis Height | 300mm |
Table Surface | Vacuum table |
X, Y Structure | Helical rack and High precision 25mm square guide rail |
Z Structure | High precision 25mm square guide rail and ball screw |
Max. Power Consumption | (Without spindle) 2.0KW |
Max. Rapid Travel Rate | 35m/min |
Max. Working Speed | 20m/min |
Spindle Power | HQD 9KW ATC air-cooled ER32 spindle |
Spindle Speed | 0-24000RPM |
Inverter | Folinn high frequency 11KW Inverter |
Drive Motors | 750W AC Sever Motor |
Reducer | Japanese Shimpo planetary reducer |
Pump | 5.5KW air cooling pump (7.5KW available) |
Working Voltage | AC380V/50/60Hz |
Command Language | G code |
Control System | Shanlong control system (English, Español,Русский, Português,Vietnamese) |
Tool sensor | Adjust the distance from the tool to the materials |
X,Y,Z Repositioning Accuracy | ±0.05mm |
X,Y Resolution | <0.05mm |
Software | Artcam with post processor |
Running Temperature | 0 degree - 45 degree |
Relative Humidity | 30% - 75% |
Detailed Photos
Samples
Packaging & Shipping
Company Profile
To ensure the overall high quality of machine,all accessories are selected from the original first-line brands,our experienced team strictly follows the drawings for assembly, at least 3 comprehensive tests and support third-party inspection.
Customer feedback
FAQ
Q: What is the warranty:
A:Two years guarantee of the whole machine,one year for electrical components
- For hardware issue, fail parts (excluding the consumables)shall be replaced/repaired free of charge during the warranty period.
-For software issue, provide the operation manual or video for guiding, our technician is able to teach you online to run the machine or eliminate the fault for free.
Q: How do I choose CNC router model?
A: Just let us know your working demands, suitable models will be recommended. We have MTC CNC router, ATC woodworking center, pneumatic tool changer CNC router, multi-head CNC router, foam machining center, 4-Axis/5-Axis ATC CNC router and various types of woodworking machines.
