Electromagnetic Chuck Controller Electro Permanent Magnet Design

Product Description

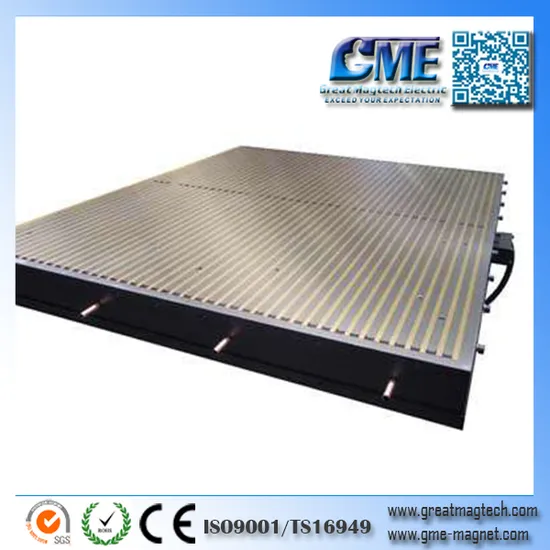

Electromagnetic chuck controller electro permanent magnet design
Features of electro-permanent magnetic chuck
1. Super strong electromagnetic chuck controller disk-2000kg/100cm, permanent electronic structure design 2 seconds demagnetization.
2. The use of the time is not required to continue to supply, no temperature rise, will not be due to temperature rise caused by the distortion of the workpiece.
3. Electro permanent magnet design with magnetic soft claw use, processing tool unimpeded, do five surface processing, drilling, tapping, slot milling, forming a completed.
4. Electromagnetic chuck controller greatly improves the efficiency of the work efficiency to reduce the accuracy of the positioning tolerance to meet the accuracy requirements, the complete agreement to shorten the time of the workpiece.
5. The holding electro-permanent magnetic chuck area can cover the full range of processing, and can process multiple workpieces at the same time.

Specification of electro permanent magnetic chuck

Item No.	Length	Width	Height	Net Weight (Kgs)
GME-PMC-7030	700	300	80	101
GME-PMC-7040	700	400	80	135
GME-PMC-7050	700	500	80	170
GME-PMC-8030	800	300	80	115
GME-PMC-8040	800	400	80	155
GME-PMC-8050	800	500	80	190
GME-PMC-9030	900	300	80	130
GME-PMC-9040	900	400	80	175
GME-PMC-9045	900	450	80	195
GME-PMC-9050	900	500	80	215
GME-PMC-1030	1000	300	82	150
GME-PMC-1035	1000	350	82	175
GME-PMC-1040	1000	400	82	200
GME-PMC-1050	1000	500	82	250
GME-PMC-1230	1200	300	80	180
GME-PMC-1240	1200	400	82	240
GME-PMC-1250	1200	500	82	300
GME-PMC-1550	1500	500	87	405
GME-PMC-2060	2000	600	90	650

Electro Permanent Magnetic Chuck Packing For Reference
Application of electro-permanent magnetic chuck
This kind of electromagnetic chuck controller is widely suitable for machining, machining center, CNC machining center, etc.
