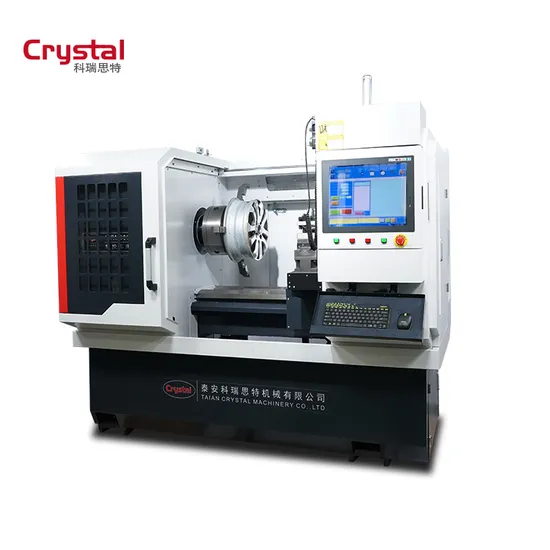

Wrm28h PC Touch Screen Rim Repair Polishing Machine

Wrm28h PC Touch Screen Rim Repair Polishing Machine

US$15,199.00
1 Piece
US$14,899.00
2+ Pieces

Basic Info.

Model NO.
WRM28H
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
CE
Condition
New
Max Swing Over Bed
770mm
Max Diameter of Alloy Wheel
28"
Size of Three-Jaw Chuck
13"
Range of Spindle Speed
50-2000rpm
Spindle Speed Control
Automatic
Spindle Bore
82mm
Max Size of Tool Post
25*25mm
Stations of Tool Carrier
4position
Motor Power
7.5kw
Color
Customized
Voltage
380V 3 Phase
Transport Package
Wooden Case
Specification
2300mm*1760mm*2150mm
Trademark
crystal
Origin
China(Mainland)Shandong
HS Code
8458110000
Production Capacity
20/Month

Product Description

NOTE: The currency exchange rate fluctuates greatly, please consult customer service for the best price.
Our purpose build alloy wheel lathe incarcerates a user friendly multi-touch interface for simplified probing and cutting processes. With full digital optimization build directly into the interface, there is no need of a separated computer system to house the software, making this our best ALL IN ONE solution for repairing diamond cut alloy wheels.
Wheel Repair Lathe Advantages
1. Cuts wheel up to 28''.
2. 17 inch interface touchscreen.
3. With CE, SGS, ISO, BV certificates.
4. Automatic ruby probe system.
5. Self-developed optimization software.
6. Free Training video and manual.
7. 7x24 hours technology support.
8. 2 USB interface.
9. High efficiency and economic.
10. Two-year warranty.
11. Free factory hand-to-hand training.
12. Agencies in UK, Germany, Poland, Netherlands, Australia etc.
Alloy Wheel Repair Lathe Specifications
ITEMS
WRM28H
Max. swing over bed (mm)(inch)
Φ770(30')
Max. Diameter of alloy wheel(mm) (inch)
Φ710(28')
Max. Stroke of the X-axis(mm)
390
Max. Stroke of the Z-axis (mm)
880
Width of the rail (mm)
300
Length of the rail (mm)
1320
Size of the three-jaw chuck (inch)
13''
Range of spindle speed (RPM)
500-2000
Spindle speed control
Automatic
Spindle bore (mm)
Φ82
Taper of spindle bore
1:20(Φ90)
Taper of spindle nose
A2-10
Adjustable stroke of carrier in X direction
100mm
Max. size of tool post
25×25mm
Stations of tool carrier
4 position
Min. setting unit of motor
(Z) long 0.001mm, (X) cross 0.001mm
Moving speed of post
(Z) long 8m/min, (X) cross 6m/min
Motor power
7.5KW
Machine size
(L/W/H) (mm)
2200/1620/1870
Package size

2300/1720/2170
Net weight
2200KGS

Standard configuration
wireless key&mouse 1 set diamond cutter 1 set inner
diamond cutter 1 set outer special ordered soft jaws 1 set
high precision prob system 1 set 4 station tool which can adjust X stroke
automatic lubrication system cooling system(standard)
full cover safety door tool case
training videos

1.Q:The machine can repair wheel edge?
A:Yes, that's no problem to repair wheel edge.
2.Q:The machine is easy to learn?
A:Yes, it is very easy to learn. The detailed manual and training video will be supplied with machine together .
3.Q:Do I need any special software for my PC?
A:We will provide optimization software (It is specifically aimed at wheel repair and
we have independent intellectual property rights).
4.Q:What kind of tool that wheel repair machine use?
A: It is diamond cutting tools.
5.Q:How many time it takes to repair a wheel ?
A:For same model wheels, the first one needs about 10 minutes, because
probing wheel curve will take some time. After first one, the curve will be saved, so
when you repair other wheels as same model, it just takes about 3 minutes.
6.Q:Can we go to your factory and learn how to use the machine?
A:We sincerely welcome you come to our beautiful city. The training is free. It would
be great honor to us.
7.Q:Can you arrange training in our place after we bought your machine?
A:We can arrange oversea training. Buyers will be responsible to the costs.
