Semi-Automatic Pressure Wood Drying Tank

Product Description

Made-to-measure to meet your requirements
No matter how much timber you need to dry at one go, say from 10m3 till 200m3, XINAN will always have the most suitable kiln for you.
Why wood drying (woodworking) need our XINAN drying product:
No matter the wood is used as a construction material, or as a structural support or in woodworking objects, it will absorb or desorb moisture until it is in equilibrum with its surrounding. But wood drying unequally or too rapidly, shrinkage in the wood will cause damage to it. XN series of drying system will improve the wood drying quality efficiently, satisfying your requirement all the time. Product Description

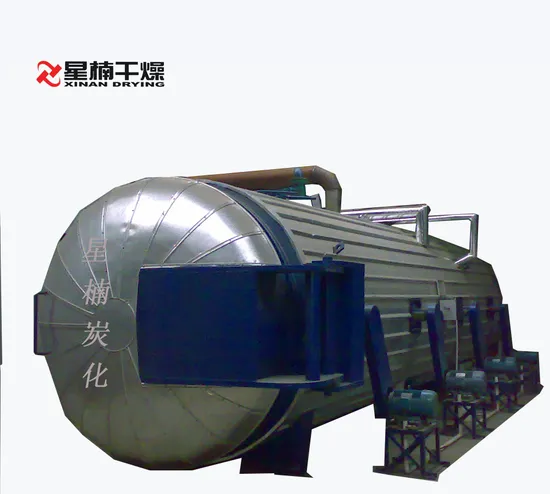

XINAN High Temperature Heat Treatment Drying Kiln
Jiangsu XINAN Wooddrying Systems Co., Ltd., Institute of Nanjing Forestry University, took the lead in independently developing XNH series carbonized wood treatment equipment and process in China, with advanced equipment technology and reliable performance. The carbonized wood produced is widely used in various fields, fully expanding the application range of wood resources as solid wood products, and efficiently utilizing limited precious wood resources. The equipment has two structures to choose from: all aluminum alloy and carbon steel stainless steel composite.
XNH Main Technology Coefficient of XNH Series

Model	Capacity(m3)	Dimension of kiln(m)	Dimension of stack(m)
(All-aluminum assembled kiln)
XNH-TS16	16	4.5×4.4×5.0	4.0×2.4×3.2
XNH-TS18	18	4.5×4.6×5.0	4.0×2.7×3.2
XNH-TS25	25	6.6×4.4×5.0	6.0×2.4×3.2
XNH-TS28	28	6.6×4.6×5.0	6.0×2.7×3.2
XNH-TS33	33	8.6×4.4×5.0	8.0×2.4×3.2
XNH-TS35	35	8.6×4.6×5.0	8.0×2.7×3.2
-(carbon steel and stainless steel composite cylinder)
XNH-CS4	4	φ2.2×4	4×1.2×1.5
XNH-CS6	6	φ2.2×6	6×1.2×1.5
XNH-CS8	8	φ2.2×8	8×1.2×1.5
XNH-CS15	15	φ2.8×8	8×1.8×2.0

Control System
XN-800 is a fully functional, intelligent, automatic wood drying control system developed by XINAN Wooddrying Systems Co., Ltd based on the research and development basis of drying equipment for more than 20 years with the cooperation of Institute of Drying Technology of Nanjing Forestry University. Its powerful function, safe and reliable, can meet the different needs of wood drying enterprises.
Functions:
Remote control: The data can be sent to the cloud end, and the mobile phone can view the current drying data anywhere. Meanwhile, multiple drying kilns can be networked on a local computer, which is convenient to monitor the working conditions of all drying kilns and flexible control.
M800B and M828
XINAN automatic controller uses HOLZMEISTER, such as M800B and M828.
HOLZMEISTER series is stable and supports individual programs. About 80 drying programs can be used by the operator for wood drying. Heating, conditional venting and the running direction of the fan are automatically controlled to ensure good drying effect. Wood drying in the kiln can also be controlled by connecting HOLZMEISTER series controller to PC via special software.
Certifications
More information,
please ask our website:https://xinan1009.en.made-in-china.com/product-list-1.html
