Small Type Gantry Milling Machine 2010t Worktable 3000X1000

Small Type Gantry Milling Machine 2010t Worktable 3000X1000

Negotiable 1 Piece (MOQ)

Basic Info.

Model NO.
X2010T
Type
Planer type Milling Machine
Object
Tool
Structure
Gantry
Milling Cutter Type
Vertical Milling Cutter
Controlling Mode
PLC Control
Automatic Grade
Automatic
Precision
Normal Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Transport Package
Wooden Case
Specification
Max Processing Size:3000x1400x1000
Trademark
Shuangyang
Origin
China
HS Code
8461901100
Production Capacity
100sets/Year

Product Description

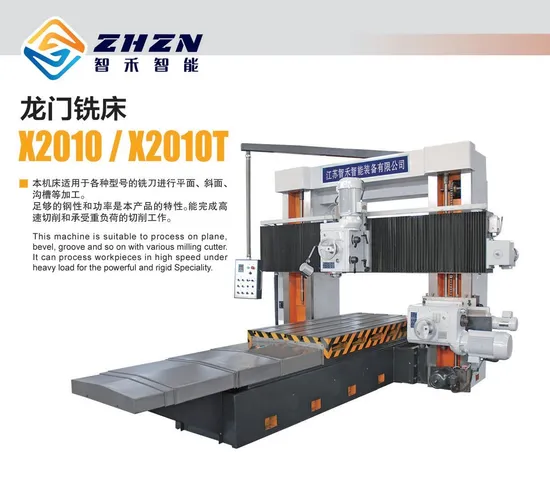

Precision Planer Miller X2010t
This machine is suitable to process on plane, bevel, groove and so on with various milling cutter, it can process workpiece in high speed under heavy load for the powerful and rigid specicality
Description

X2010
X2010T
Max. Processing capacity(L × W × H)
Mm
2000X1350X1000
3000 X1350X1000
Distance between columns
Mm
1400
1400
Size of worktable
Mm
2000X1000
3 000X1000
Power of worktable feed motor
Kw
2.2 3
Power of vertical milling heard motor
Kw
7.5
7.5
Power of side milling head motor
Kw
7.5
7.5
Number of milling head
Piece
2
2
Speed of cutting feed

Stepless step change
Stepless step change
Range of the spind speed

6(82-506)
6(82-506)
Number of T-slots

5
5
Width of the T-slot
Mm
22 22
max. load
Kg
8 000
10000
W eight
Kg
15000
18000
Overall dimensions of machine L*W*H mm
5500X3200X2800
7400X3200X2800

WORKSHOP
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as surface grinding machine, CNC surface grinder ,CNC Milling Machine ,Vertical Machining Center ,Drilling Machine ,gantry milling machine , CNC gantry milling machine, CNC gantry grinding machine so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in NO 370 Changjiang North Road, NANTONG ,JIANGSU ,CHINA. If you have interest to visit our factory, pls inform
me ahead, i will arrange and company you your visit period.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
