Large Water Tank Horizontal Three Layers Extrusion Blow Molding Machine Accumulate

Large Water Tank Horizontal Three Layers Extrusion Blow Molding Machine Accumulate

US$208,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
TVA-2000L-III
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Drive System
Pure Hydraulic
Machine Color
Customized
Maximal Volume
up to 1000L
Moog Parison Control
Moog 100point
Multy Layers
Available
Output Capacity
Around 30 Bph
Voltage
380/220/415/440V
Parison Control
Optional
Machine Condition
New
After-Sale Service
Engineer Available for Overseas Installation
Brand
Tonva
Auxiliaries
Optional
Extra Function
Available
Suitable Material
HDPE
Mold Manufacturer
Available
Transport Package
Water Proof Film or Standard Wooden Case
Specification
7*3.2*4.5
Trademark
TONVA
Origin
Zhejiang, Taizhou
HS Code
8477301000
Production Capacity
400sets Per Year

Product Description

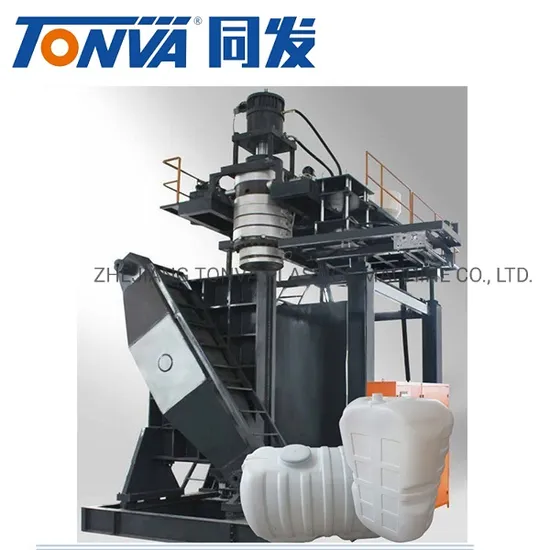

Blow molding type Extrusion blow molding machine,TVA-2000 L(pure hydraulic system, single station)
Total power: 280kw
output capacity : around 7-10pcs per hour
Suitable products making range: maximal volume: 2000L,
power supply : 440V/415V/380V/50HZ,3PHASE
Applicable materials: pe/pp/pa/pvc etc
PLC and HMI: Adopt PLC to control the action program of the whole machine; adopt HMI for communication, parameter setting, modification and picture display

Work shop:
Packing and shipping:

Exihibition:
