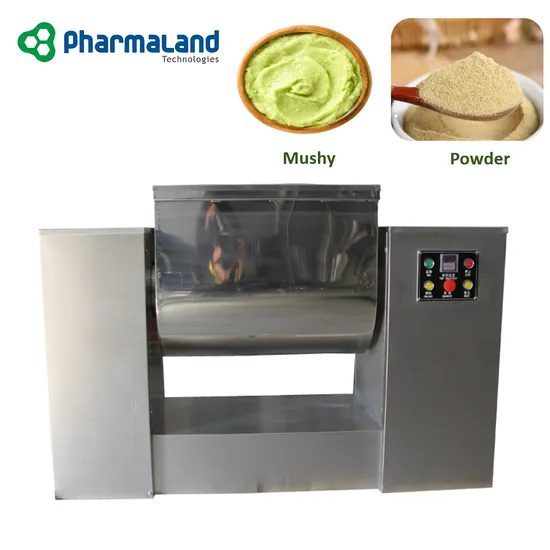

Pch-200 Factory Price High Speed Trough Type Mixer Blender Stainless Power Tank Mixing Machine

Product Description

Pch-200 factory price High Speed Trough type mixer Blender Stainless Power Tank Mixing machine Product Description Working Principle
1. Mixing Paddle Design:
- Special design with limit gap between bucket blades ensures no dead angle in mixing.
2. Sealing and Construction:
- Excellent shaft end sealing.
- Made of SUS-304 stainless steel, ensuring no dead angle in cleaning.
3. Ideal for Paste Mixing:
- Optimal for mixing paste-like materials.
Application
1. Wide Usage:
- Suitable for mixing powder and pasty materials in the chemical, electronics, and food industries.
2. Special Suitability:
- Particularly effective for high uniformity, materials with large proportion differences, and varying humidity levels.
3. Advantages:
- Compact structure, small size, easy operation, easy cleaning, high material mixing uniformity, and aesthetically pleasing design.
Construction and Features
1. Material:
- Made of SUS-304 high-quality stainless steel (3mm thickness).
2. Stirring Blade Design:
- Unique design, made from SUS-304 stainless steel.
- O-type and oil ring seals for effective sealing.
3. Rotation and Control:
- Equipped with both positive and negative rotation.
- Dosing device includes automatic electromagnetic travel control or jog control system.

Techinical Parameters

	PCH-200	PCH-300	PCH-400	PCH-500
Barrel Volume (L)	200L	300L	400L	500L
Rotary Speed(r.p.m)	24r/min	24r/min	24r/min	24r/min
Weight (KG)	450kg	520kg	580kg	680kg
Power	4kw	5.5kw	5.5kw	7.5kw
Inclined angle (°)	105°	105°	105°	105°
Overall dimension	1830*560*1020mm	1930*610*1070mm	2230*660*1070mm	2500*700*1100mm

Detailed Images

Delivered Project
Company Information
Pharmaland Technologies Ltd, is a Canada company that was found in 2005 in Toronto with a version to offer affordable quality nutraceutical equipments and technical supports to our customers in nutraceutical and food industries. With a global source of technologies and partnerships with those strategic manufacturers mainly in China, Pharmaland offers those most competitive products of the latest technologies with the world leading brand value.

Pharmaland Technologies' machines are designed and developed with concepts and standards of Canadian mechanical quality and safety, and built up from our facilities of jointed venture and strategic partnership globally, mainly from those leading nutraceutical machinery manufacturers in China to offer solid, dependable, affordable and build-in last and long durations of production and package need.

We have our technical support team both in Toronto and Shenzhen China. We have our workshop, showroom and training center as well as parts inventory warehouse in China to provide our prompt service to global customer need.

Packaging & Shipping
FAQ Q1: How can you ensure the machines' quality?
A1: Our factory is equipped with high precision lathe, and we only adopt superior material and leading brand components, the machines are designed in accordance with GMP standard.
We have very strict internal inspection during production and before shipment, will provide photos and testing video before shipment to our clients, the machines have one year warranty but life time service .
Q2: Will validation documents provided?
A2: Yes, we can provide full set documents, IQ, OQ,PQ etc.
Q3. Any certificate you can provided?
A3: ISO9001. CE and GMP approved.
Q4: What kind of after-sales service you can provided?
A4: 1. We offer 12 months warranty and lifetime technic service .
2.Here is any technic problem, we will response within 24 hours by email or over phone, if problem can't be solved on-line, we can arrange technician to provide on-site service.
Q5: Can you provide customized manufacture?
A5: Yes, we have professional technician team to provide customized solutions, just share with us your request for evaluating.
Q6. How can I trust you for first time cooperation?
A6:
1. We provide our business license for verification.
2. With over 20 years of industry experience and good reputation on the market.
3. You're welcome to visit our factory.
4. We support online ordering.
5. Balance payment is made upon satisfactory inspection of machines
